59600

Roof Top Ski Carrier

Cequent Towing Products - Plymouth, MI

Technical Service: (888) 521-0510

Please read all instructions carefully before assembly, installation and/or use of this product.

WARNING: This carrier is designed to carry (6) pairs of skis or (4) snowboards maximum.

WARNING: Distribute your skis or snowboards evenly.

WARNING: Securely fasten load to ski carrier. Make sure all bolts, screws, straps and plastic knobs are firmly attached

before every trip and check regularly during the trip.

WARNING: Check security of all cargo carrier attachments and load at fuel and rest stops.
WARNING: Check for clearance between sunroof and cargo carrier before operating sunroof. (if equipped)

WARNING: Do not carry any loads wider than your vehicle.

WARNING: Do not drill or weld to this product.

DO NOT EXCEED the vehicle manufacturer’s cross bar rating.

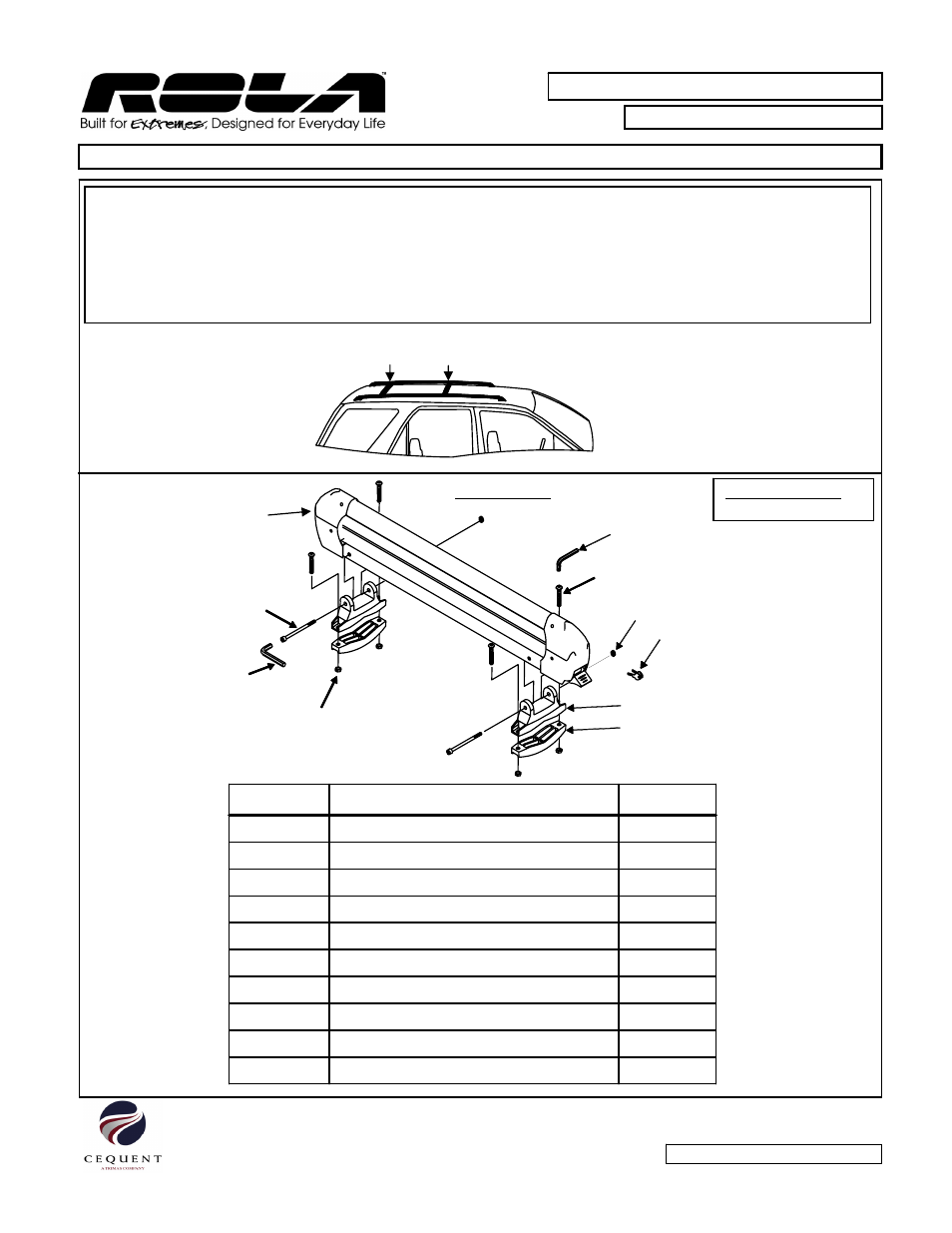

PARTS LIST:

TOOLS REQUIRED:

Tape Measure

(A)

(D)

(J)

(F)

(H)

(K)

(G)

(E)

(B)

(C)

PART

DESCRIPTION

QTY.

A

Ski Carrier hood

2

B

Top Clamp

4

C

Bottom clamp

4

D

Hex Cap Screw, 6mm x 90mm Long

4

E

Cap Screw, 6mm x 40mm Long

8

F

Hex nut, 6mm

8

G

Hex Lock Nut (Nylon Insert)

4

H

Hex wrench 5mm

1

J

Hex wrench 4mm

1

K

Key

2
