CAUTION!
Read pages 2-5 of these instructions before starting installation. Failure to do so could result in significant vehicle damage!
IMPORTANT NOTES FOR THIS INSTALLATION:
1. On Drivers side install straight bracket at forward rail and the angled bracket at rear rail (angle bracket
should be pointing rearward). Bolt drivers side rear bracket to frame in top two holes. (See Fig. 4)
2. On Passengers side install the angled bracket at front rail (angle bracket should be pointing rearward)
and the straight bracket at the rear rail. Bolt passengers side front bracket to frame in top two holes. (See
Fig. 4)
3. May need to move base rail location +/-
1/2” to ensure frame brackets do not interfere with bed sills.
Center bolts and hardware are supplied
with 5
th wheel or gooseneck hitches that
are rated over 18K.

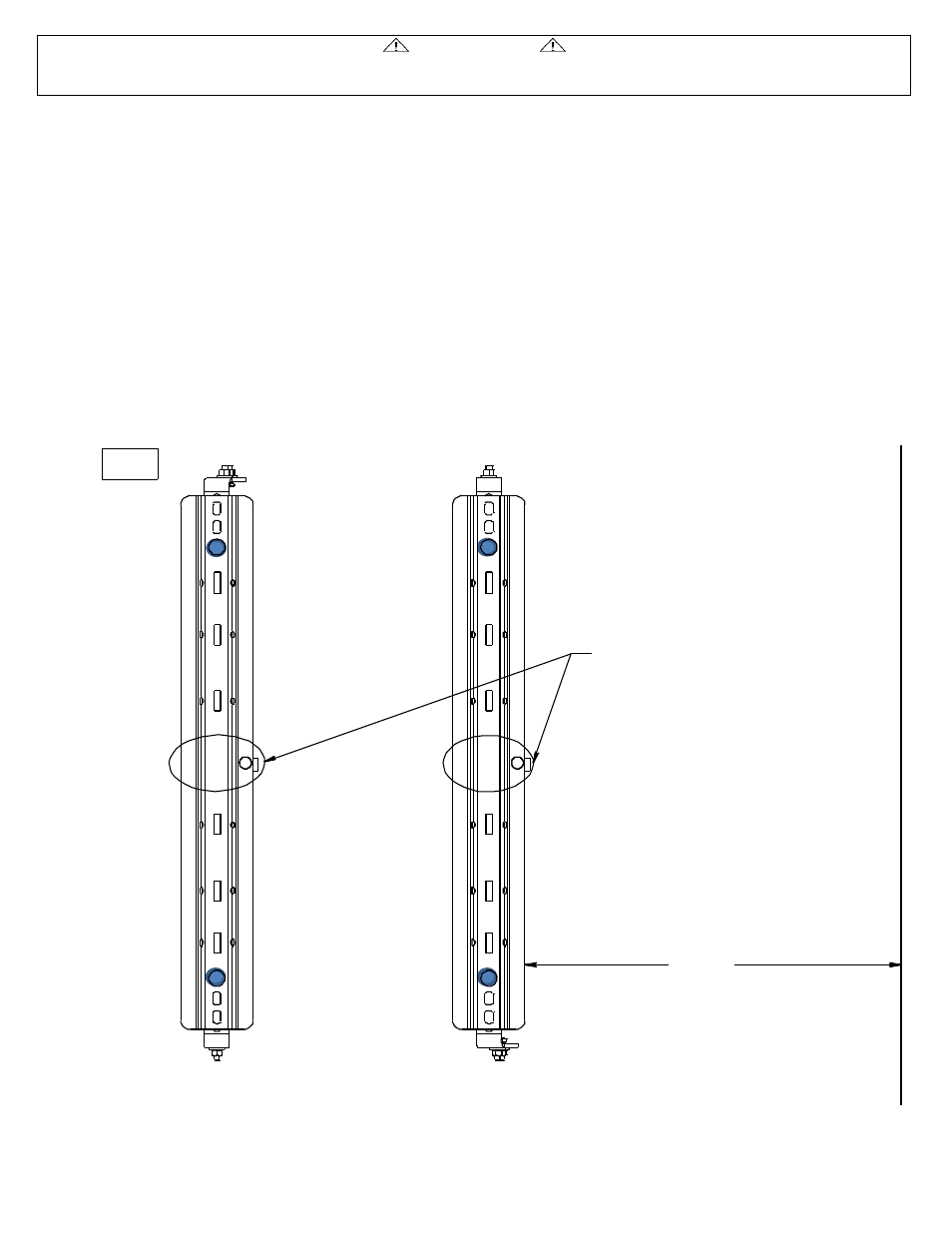

30 5/16"
Each base rail m ust have a
bolt in center holes. H oles m ay face
the front or rear of vehicle. W hichever
direction keeps them close to vehicle
hat channels. C heck for obsructions
before drilling.
Front
of
Vehicle
Measure from R ear Edge of
truck bed to rear of B ase R ail
.
Rear of Vehicle
Fig. 3
