Draw-Tite 58425 ADAPTER KIT User Manual

Fig. 1

58425N 5/4/11 REV. C

PRINTED IN USA

INSTALLATION INSTRUCTIONS

58425 BASE RAIL MOUNTING KIT

FORD F-150 & F-

250 THROUGH ’96 / ‘97 F-250 OVER 8500 GVW, F350 THROUGH ’97 /

1999 & NEWER F-250 / F-350 & F-450 SUPERDUTY PICKUPS (Not Cab-On-Chassis)

For Installation Assistance or Technical Help, Call 1-888-521-0510

(1) Provide this Manual to end user.

(2) Physically demonstrate procedures in this Manual to end user.

(3) Have end user demonstrate that he/she understands procedures.

(1) Read and follow this Manual every time you use Hitch.

(2) Save this Manual for future reference.

(3) Pass on copies of Manual to any other user or owner of Hitch.

DEALER/INSTALLER:

END USER:

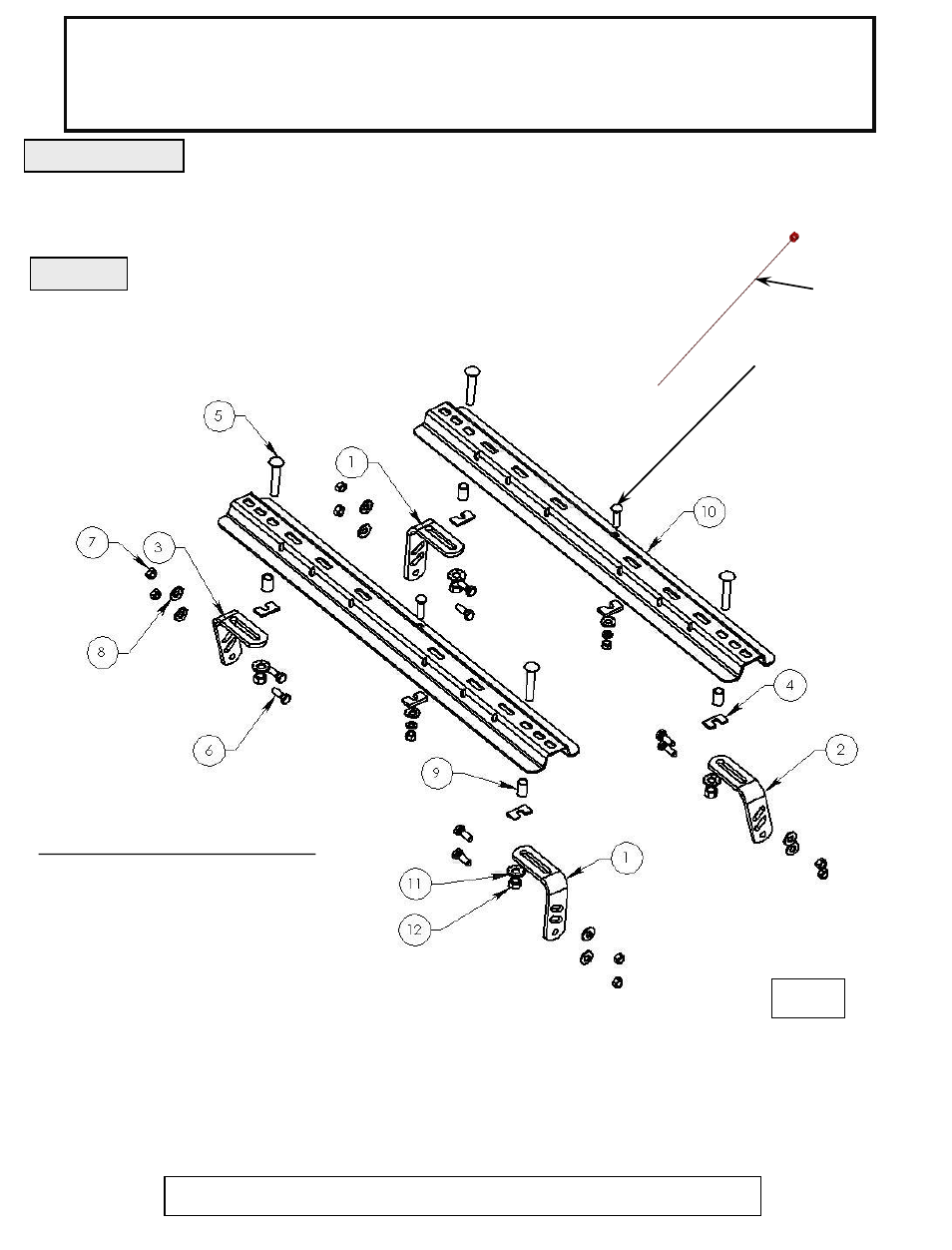

BASERAILS QTY.
1. FRAME BRACKET (2)*
2. FRAME BRACKET (1)
3. FRAME BRACKET (1)
4. FILLER SPACER (4)
5. 5/8” x 3 1/2” CARRIAGE BOLTS (4)*
6. KNURLED BOLTS (8)*
7. 1/2” NUTS (8)*
8. 1/2” SERRATED WASHERS (8)*
9. TUBE SPACER (4)*
10. BASE RAILS (2)*
11. 5/8” SERRATED WASHERS (4)*
12. 5/8” NUTS (4)*
13. ½” PULL WIRE (4)*
* Parts supplied with 30095

NOTE: NOT ALL HARDWARE IS GOING TO BE USED ON ALL INSTALLATIONS

Fig. 1

Center bolts and hardware
are supplied with fifth
wheel or gooseneck
hitches that are rated
over 18k.
