Draw-Tite 58405 ADAPTER KIT - Manual (Page 2)

2004 & Up NISSAN TITAN – CREWCAB & KING CAB (5-1/2’ Bed Requires Reese ® Sidewinder™ Pin box)
(6- 1/2’ and 7’ beds may require the Reese ® Sidewinder™ Pin box or KIWK-SLIDE™)
*
Optional weld
pattern
CAUTION!
Read pages 2-3 of 30035 instructions before starting installation. Failure to do so could result in significant vehicle damage!
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.
CEQUENT PERFORMANCE PRODUCTS, Inc. does its best to communicate tow vehicle manufacturer changes; however, it is
ultimately the responsibility of the installer to prevent damage due to installation.
z 2010 Cequent Performance Products, Inc.
Sheet 2 of 3 58405N 5-23-12 Rev. D

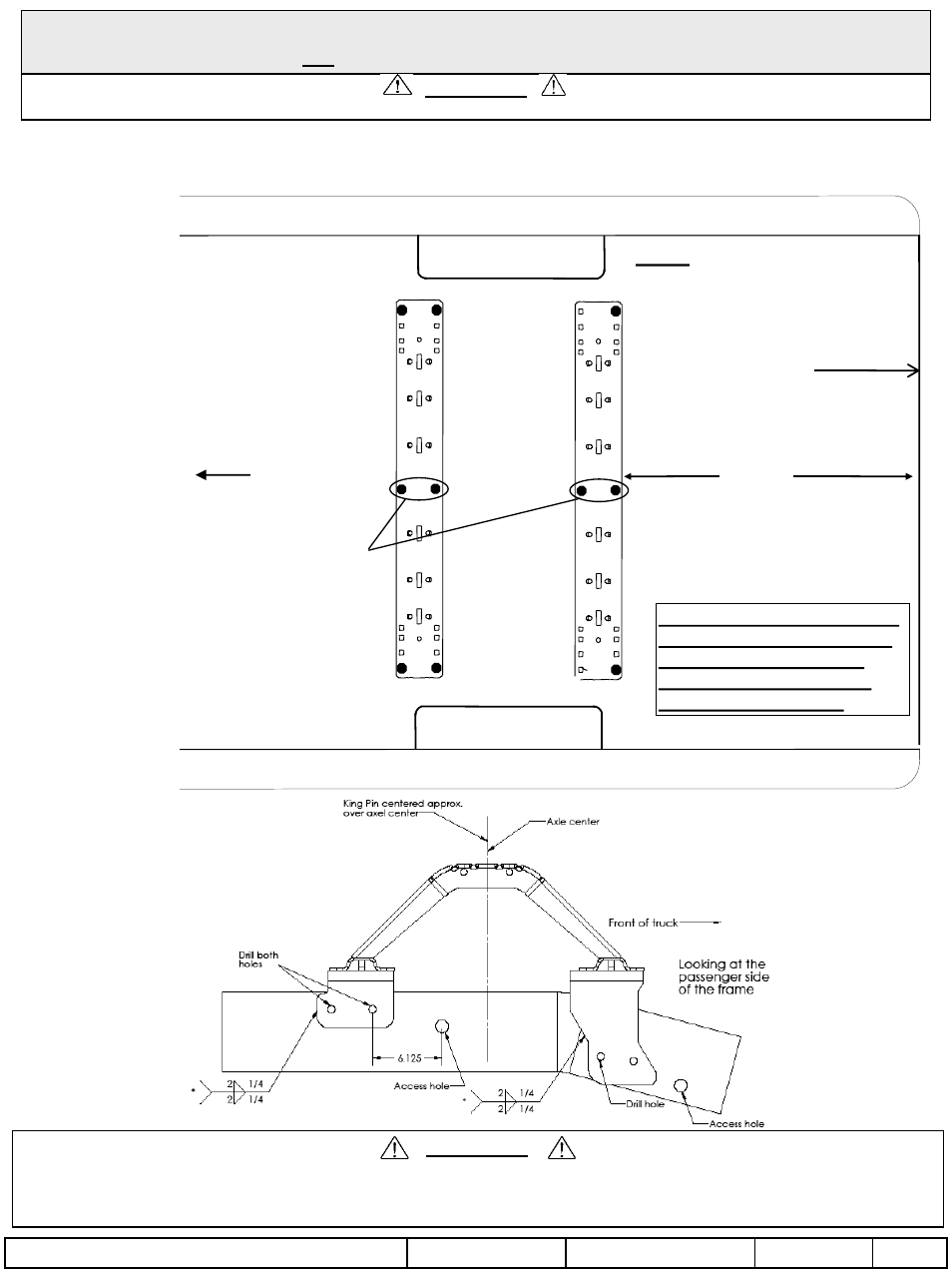

Front of
Vehicle
Rear Edge
of Truck
Bed
Measure from Rear Edge
of truck bed to rear edge of
base rail.
RO
W
1
RO
W
2
RO
W
3
RO
W
4
Each base rail must
have a bolt in either
of the marked center
holes. Check for
obstructions before
drilling.
26- 1/2”
5- 1/2’ Short Box
6-
1/2’ Short Box
7’ Long Box
8’ Long Box
IMPORTANT NOTES FOR THIS INSTALLATION:
1. Use the 58405 service kit together with 30035 mounting kit. Read pages 1-3 of 30035 instruction for general
information.
2. Bolts will need to be pulled through access holes in frame with supplied pull wire (see below).
3. Do not drill through both
walls of frame. Drill only
through wall of frame to
which bracket is mounted.
Do not install on a truck with
a 6-
1/2’ or 7’ box unless the
trailer is equipped with a
Reese
® Sidewinder™ Pin
box or KIWK- SLIDE™.
4. Drill through frame at rear
hole in each front side
bracket and both holes in
passenger side rear side
bracket.
.
.
NOTE: Row 3
attachment will be
drilled through
accessory track
(If Equipped)
