Draw-Tite 58405 ADAPTER KIT User Manual

Installation, Instructions, Part numbers

background image

Installation

Instructions

Fifth Wheel Adapter Bracket Kit

Nissan Titan – Crew Cab/King Cab

Part Numbers:

58405

z

2010 Cequent Performance Products, Inc.

Sheet 1 of 3

58405N

5-23-12

Rev. D

Equipment Required:

Fastener Kit: 116408, (30512-Fastener Kit from 30035)

Wrenches: 3/4”, 7/8”

Drill Bits: 3/16”, 17/32”

Other Tools: Center Punch, Measuring Tape,

Phillips Screw Driver

Qty. (4)

1/2”-13 X 1.75” Carriage Bolt

Qty. (10)

1/2” Flat Washer

Qty. (4)

1/4“ X 1.00” X 3.00” Block

Qty. (2)

1/2” Pull wire

Qty. (4)

5/16” X 1.00” X 2.00” – U shaped Block

WARNING:

Under no circumstances do we recommend

exceeding the towing vehicle manufacturers recommended
vehicle towing capacity.

3

2

1

Front of Vehicle

(Installation of this kit on vehicles with cargo box of less than 8’ may require

the installation of a Reese

®

Sidewinder™ Pin box or KIWK-SLIDE™.)

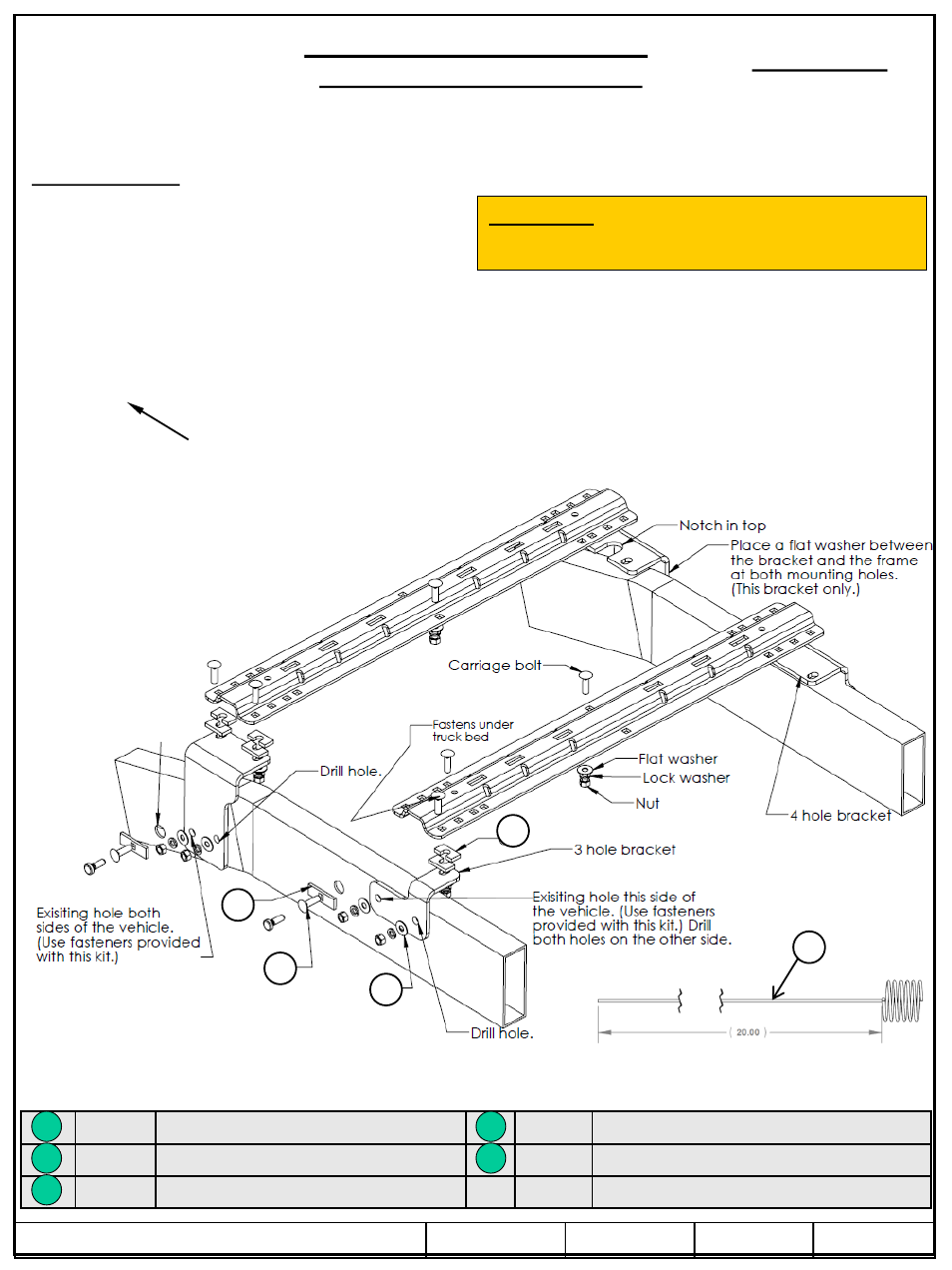

30035 Rail Kit

required for

installation

Fasteners listed below are supplied with this kit, all other mentioned fasteners are supplied with part number 30035.

4

Pullwire fasteners
through holes in
the frame

2

1

4

3

5

5
