4
30048IN – 9-27-04E PCN7358 ©2001, 2002, 2004 TOWING PRODUCTS, INC. Litho in USA
Reference label
facing driver side.

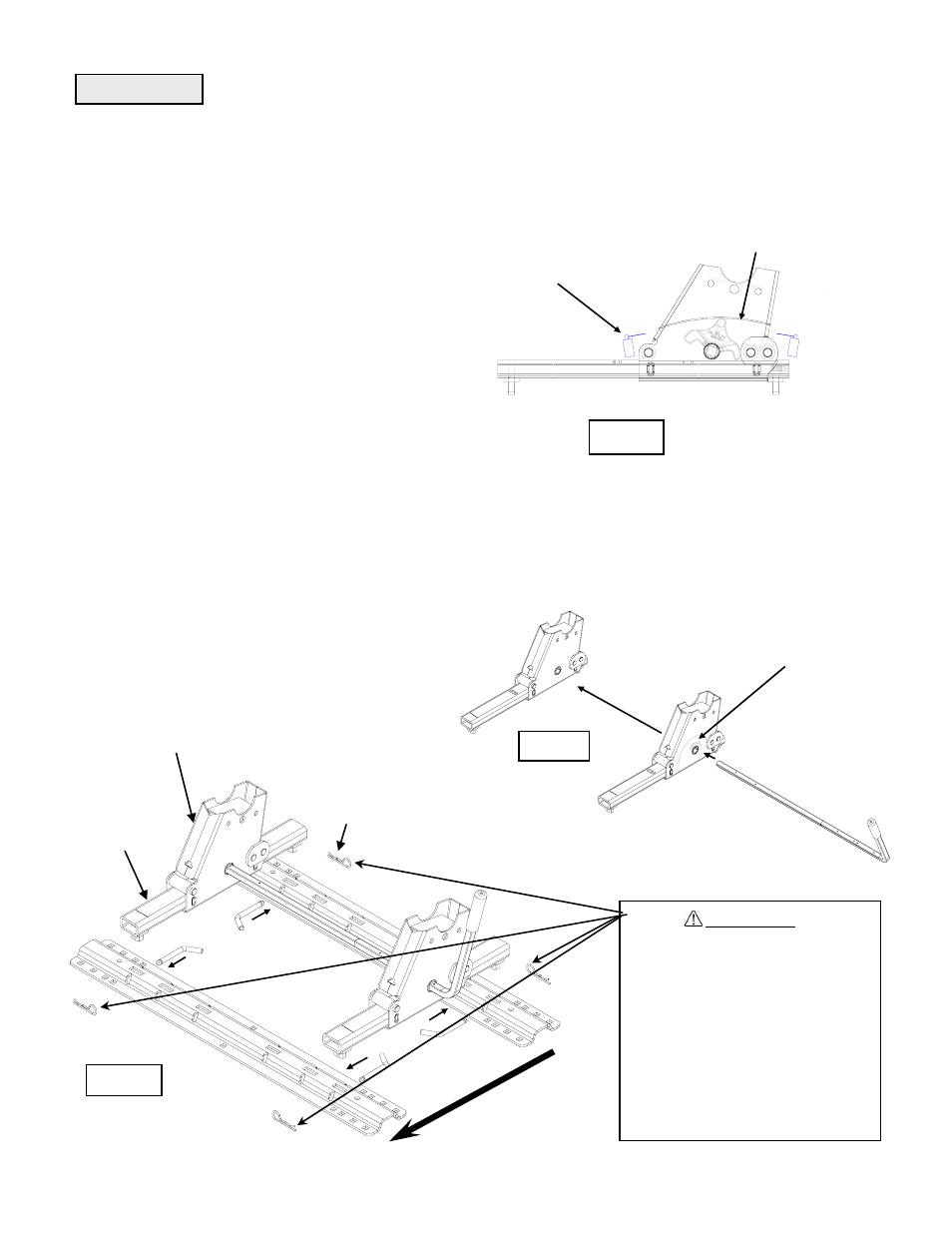

3. Before setting the 5TH WHEEL KWIK-SLIDE into
the bed of the pickup, attach handle shaft to handle
elbow (see figure 1 on first page). Insert handle
assembly through left hand slide assembly
(driver’s side of towing vehicle) and then through the
right hand side slide assembly (see figure 8).
If 5
TH WHEEL KWIK-SLIDE is being used with the
PRO-SERIES 15k head assembly insert handle
through right hand slide assembly (passenger side of
towing vehicle) and then through left hand side of
slide assembly.
4. Set the 5TH WHEEL KWIK-SLIDE into
base rails and pin in position with the
KWIK-SLIDE in the middle of the tubes (see
figure 9).
figure 9
figure 8
FR
ON
T
OF
T
OW
V
EH
IC
LE
2. Before installing 5TH WHEEL KWIK-SLIDE,
leaf spring must be greased as shown using
white lithium grease or equivalent (see figure 7). For
best results, use aerosol white lithium grease with a
spray nozzle extension. Make sure entire
underside of spring is coated! Repeat this application
monthly during use.
1. These instructions should be used to mount 5TH WHEEL KWIK-SLIDE. Care and attention to detail will ensure a
quick, safe and quality installation. Check parts against figure 1 to become familiar with kit.
INSTALLATION
WARNING:
Pull pin spring clips must
be on the outside of base rail
as shown. Spring clips
installed on the inside of
base rail will not allow Kwik-
Slide to slide far enough to
lock. Kwik-Slides that are
not properly locked can
suddenly move and cause
serious injury or death.
Slide Tube
Kwik Slide Upright
Aerosol white lithium
grease spray with nozzle
extension
Leaf spring
figure 7
See figure 10 for
installed clip locations.
