Installation Instructions

Suzuki Grand Vitara

Part Numbers:

24764
77140
60827

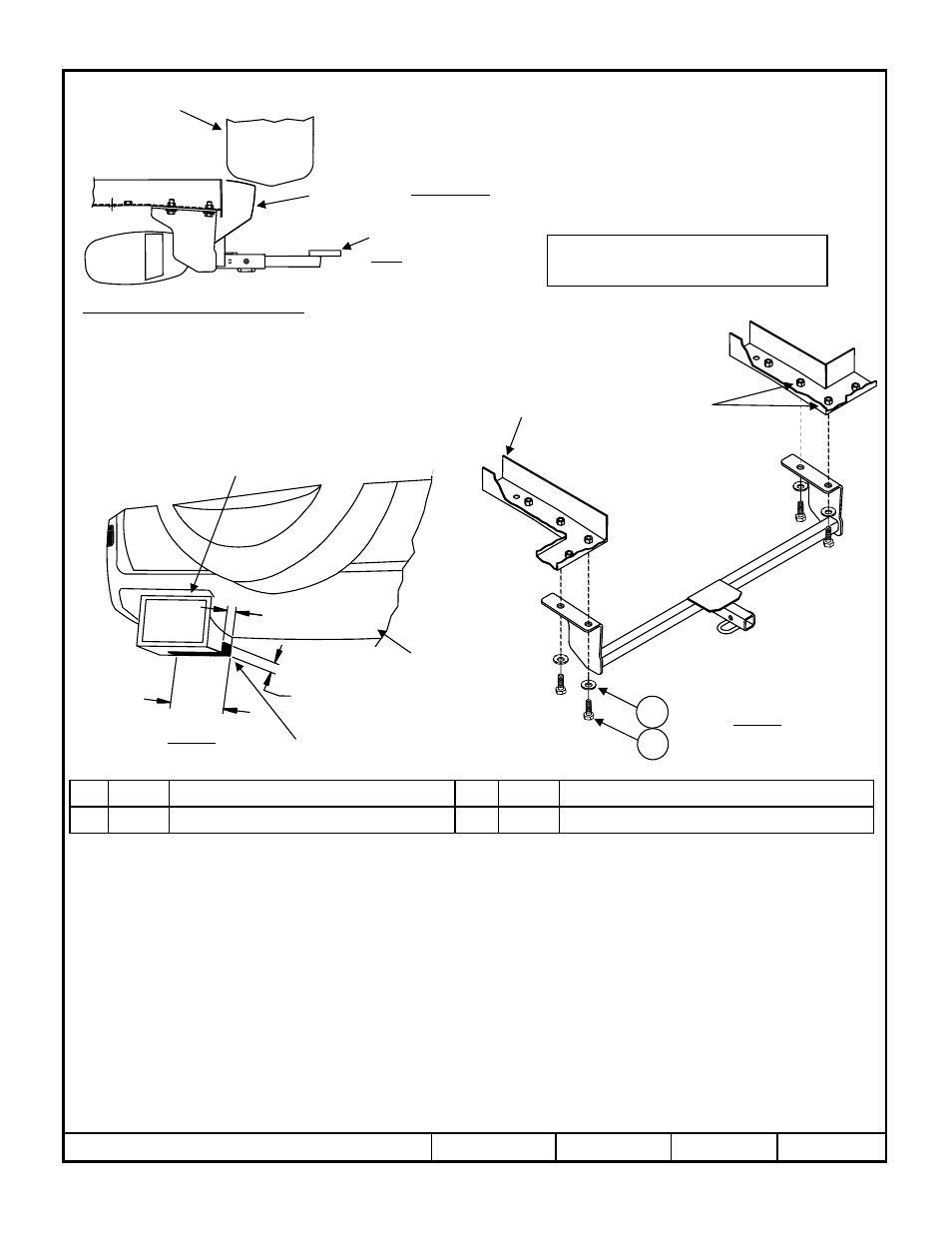

Hitch Shown In Proper Position

Wiring Access Location: SUV3, SUV4

Equipment Required: Utility Knife

Wrenches: 19 mm, Torque Wrench

Drill Bits: N/A

1.

Notify vehicle owner that the fascia requires minor trimming to fit hitch.

2.

Using a felt tipped pen, measure and mark an outline on the fascia described in Figure 1.

3.

Using a utility knife, carefully cut out the fascia on the bottom inside section of the license plate mounting area as shown.

4.

Raise hitch into position, aligning the holes in hitch with the two rearmost weldnuts in the bottom of frame rail, both sides.

5.

Loosely install the M12 hex bolts and conical toothed washers, four places.

Rev. A

11-8-05

24764N

Sheet 1 of 3

z

2005 Cequent Towing Products

Tighten all M12 CL8.8 fasteners with torque wrench to 76 Lb.-Ft. (102 N-m)

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to

prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working

beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5

and SAE J684.

2000 LB (907 Kg.) Max Gross Trailer Weight

200 LB (90 kg.) Max Tongue Weight

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

Drawbar must be used in the
RISE position only.

Drawbar Kit:

3591

Fastener Kit: 24764F

Figure 2.

Frame Rail

Fascia

Conical Toothed Washer ½

Qty. (4)

2

Hex Bolt, M12 x 1.25 x 35mm CL8.8

Qty. (4)

1

Figure 1.

License Plate Mounting Location

Fascia

8"

3/4"

1-1/4"

2

1

Existing

Weldnuts

Typ.

Spare Tire

Area to Trim
