Draw-Tite 24852 SPORTFRAME HITCH - Manual (Page 2)

Installation Instructions
Honda Accord Crosstour
All models including
EX- 2WD, EXL-2WD & EXL -AWD
Part Numbers:
24852
60268
77224
z
2010 Cequent Performance Products Sheet 2 of 6 24852N 2-10-10 Rev. A
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Form: F205 Rev A 5 -6-05
Tighten 8mm-1.25 Gr. 9.8 bolts with torque wrench to 25 Lb.-Ft. (34 N*M) Tighten 10mm-1.25 Gr. 8.8 bolts with torque wrenchto 42 Lb.-Ft. (57 N*M)

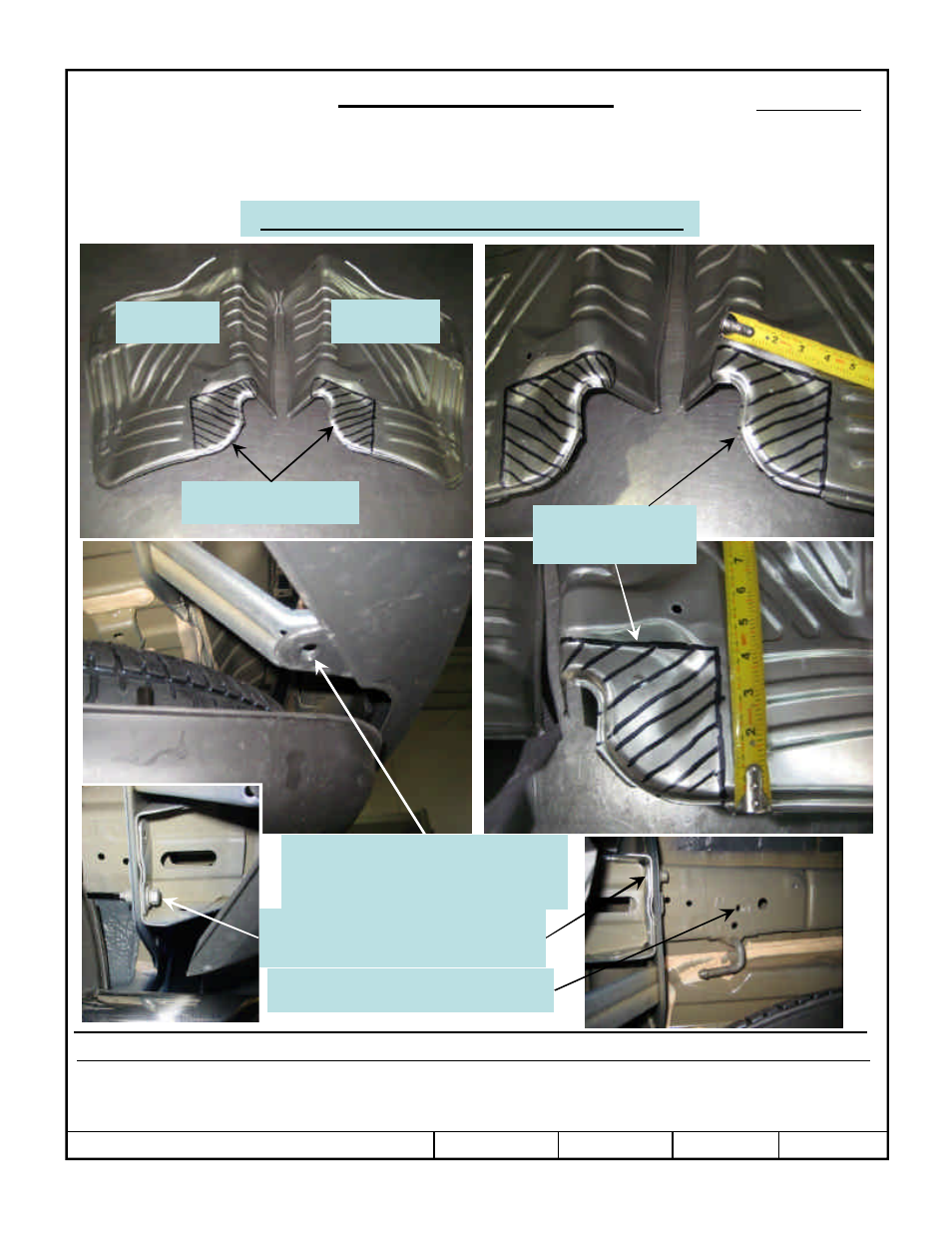

Detail showing how to trim muffler heat shields.
Driver’s side
heat shield
Passenger’s side
heat shield
Trim out a corner section
of about 4 -1/4” x 4-1/4”
from both heat shields.
Hatched area to be cut out
with metal shears.
Side view underneath vehicle showing plastic
push rivet removed from bumper support bracket.
This allows you to pull bumper cover back for
better hand and wrench access.
View underneath vehicle showing existing 8mm
bolt to remove before installing hitch. Typical
both sides of vehicle. Return to vehicle owner.
View underneath vehicle showing existing 10mm
weldnut in frame.
