Draw-Tite 24720 SPORTFRAME HITCH - Manual

Installation Instructions
Honda Element
Part Numbers:
77034
24720
Do Not Exceed Lower of Towing Vehicle
Drawbar Kit:
3592
Fascia
Trunk pan
60278
Hitch Shown In Proper Position Wiring Access Location: SUV3
Equipment Required: Sealant
1
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Drawbar must be used in the
Rise position only.
3592
F t Kit F24720
2000 LB (908 Kg) Max Gross Trailer Weight
200 LB (90.8 Kg) Max Tongue Weight
Tow hook
2
Seal holes drilled in trunk pan
to prevent intrusion of
h f d
Wrenches: 3/4, 7/8
Drill Bits: 7/16”
Drilled 7/16” holes
Fastener Kit: F24720 exhaust fumes and water.
Trunk pan
Tow hook
3
4
5
7
6
89
7

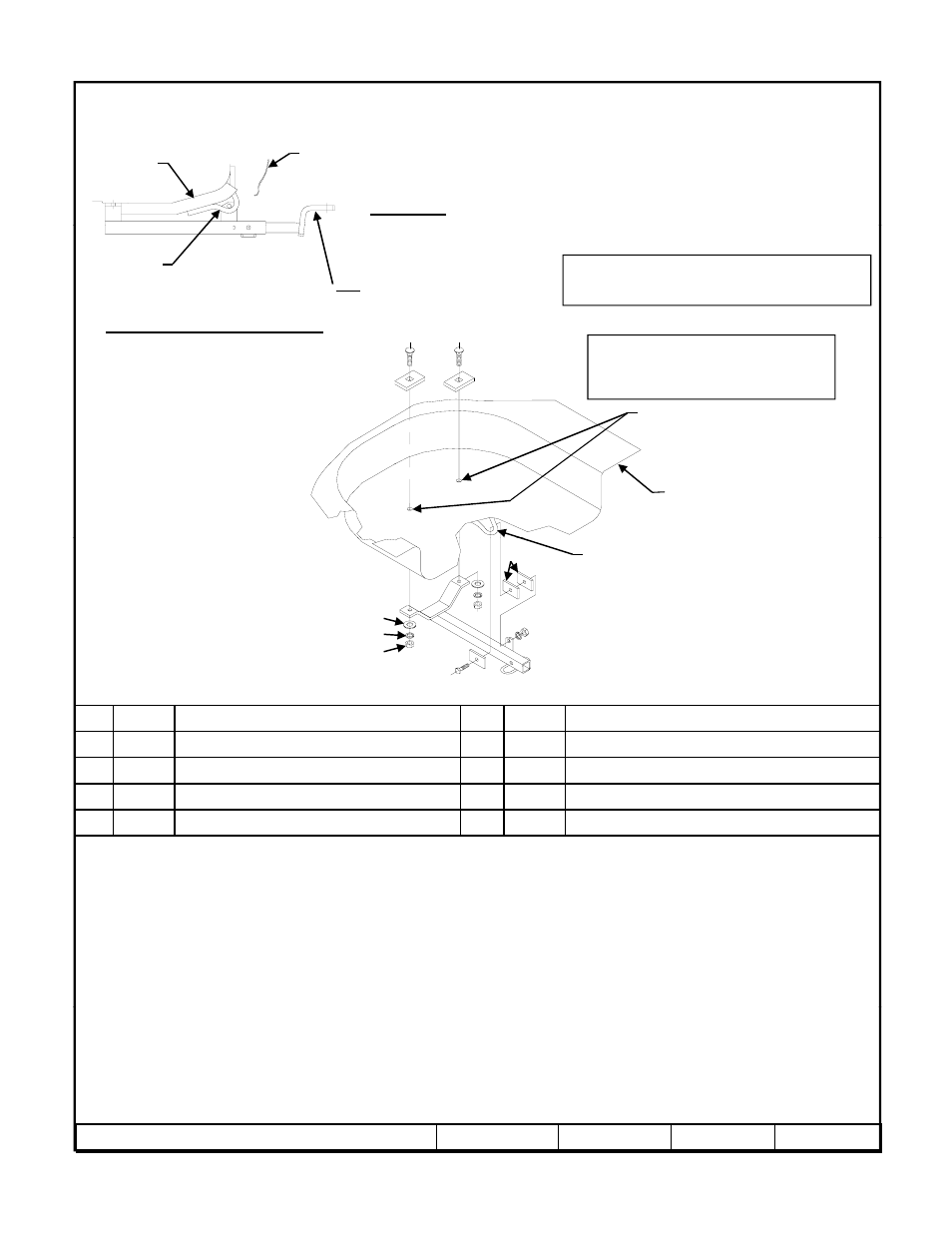

1 Qty. (2) Carriage Bolt 7/16-14 X 1.75 6 Qty. (1) Hex Bolt 1/2-13 X 2.50
2 Qty. (2) Spacer 3/16 X 1.00 X 2.00 7 Qty. (3) Spacer 1/4 X 1.50 X 3.00
3 Qty. (2) Flat Washer 7/16 8 Qty. (1) Lock Washer 1/2
4 Qty. (2) Lock Washer 7/16 9 Qty. (1) Hex Nut 1/2-13
5 Qty. (2) Nut 7/16-14
6
1. Remove table/well cover, spare tire & plastic well from trunk.
2. Attach hitch to tow hook as shown above.
3. Using hitch as template, drill (2) 7/16" holes in trunk pan.
4. Install 7/16" carriage bolts, blocks, washers and nuts as shown above.
5. Seal holes drilled in trunk pan to prevent intrusion of exhaust fumes and water.
6. Return table/well cover, spare tire & plastic well to proper position in trunk.
Tighten all 7/16 GR5 fasteners with torque wrench to 50 Lb -Ft (68 N*M)
Tighten all 1/2” GR5 fasteners with torque wrench 75 Lb.-Ft. (102 N*M)
z 2002, 2003, 2004, 2006, 2010 Cequent Performance Products Sheet 1 of 3 N24720 8-27-10 Rev. D
Tighten all 7/16 GR5 fasteners with torque wrench to 50 Lb. Ft. (68 N M)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
