Draw-Tite 36287 FRAME HITCH User Manual
Installation instructions, Cadillac deville cadillac dts, Part numbers

Installation Instructions
Cadillac DeVille
Cadillac DTS
Part Numbers:
06298
36287
90142

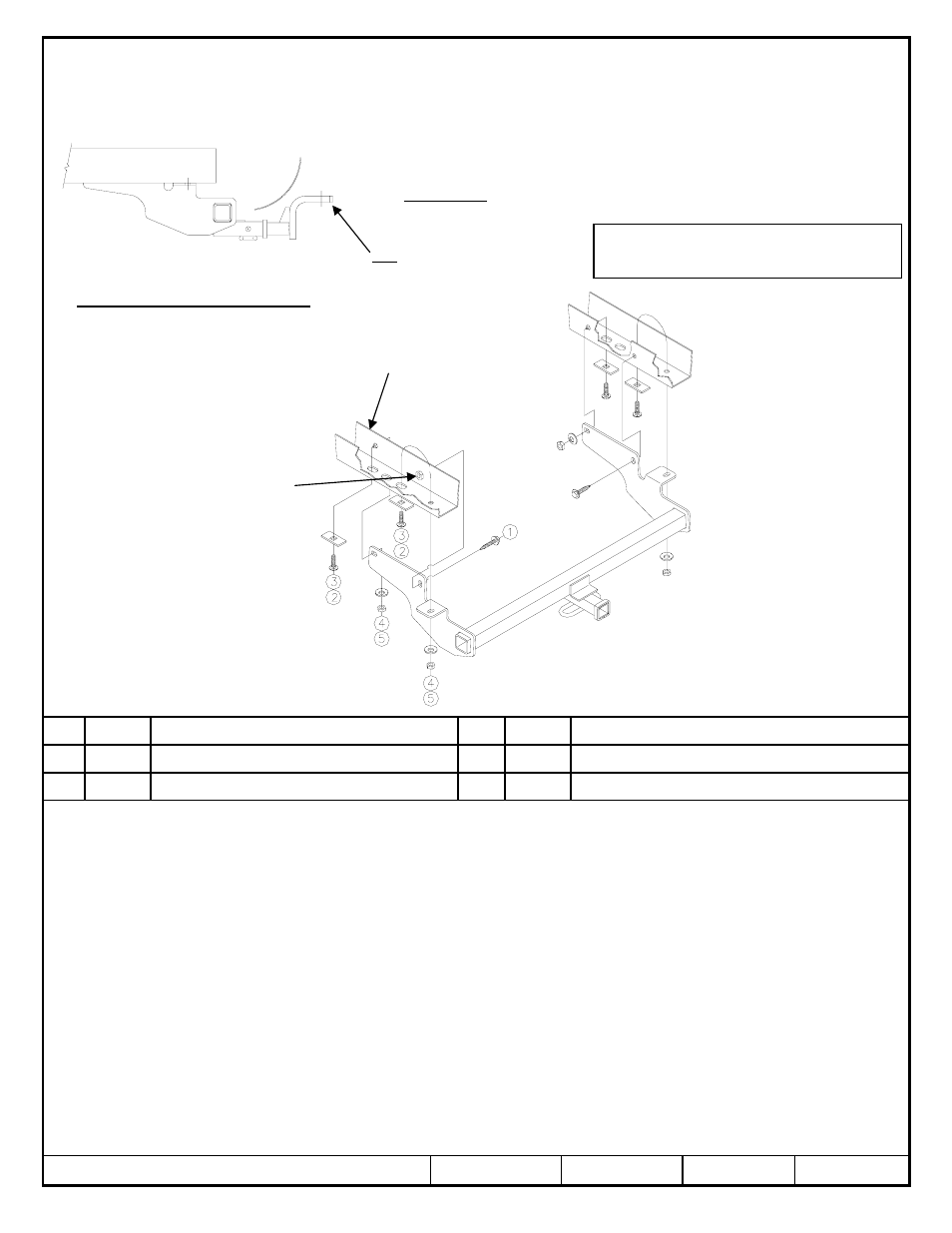

Hitch Shown In Proper Position
Wiring Access Location: PC3, PC4
Equipment Required: Pull Wire (Provided)
Wrenches: 7/8, 13mm
Drill Bits: None
Fasteners typical both sides.
1.
Raise hitch into position.
2.
Install two (2) M8 Bolts into existing weld nuts as shown.
3.
Fish wire remaining fasteners as shown. Note : 1/2 bolts and blocks must be fish wired separately.
Tighten all 1/2 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)
Rev. C
3-10-06
N36287
Sheet 1 of 3
z
2005, 2006 Cequent Towing Products
Pull Wire
Qty. (1)
6
Block
Qty. (4)
3
Hex Nut 1/2-13
Qty. (4)
5
Carriage Bolt 1/2-13 X 1.75
Qty. (4)
2
Conical Washer 1/2”
Qty. (4)
4
Bolt M8 X 1.25 X 35
Qty. (2)
1
Tighten all M8 fasteners with torque wrench to 25 Lb.-Ft. (34 N*M)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
3500 (1589 Kg) LB Max Gross Trailer Weight
300 (136 Kg) LB Max Tongue Weight
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Drawbar must be used in the
Rise position only.
Drawbar Kit:
36071
Fastener Kit: K36287
Weld Nut
Frame Rail
Form F206 Rev A 5605
