Installation Instructions
Volkswagen Amarok
Part Numbers:
75808SA

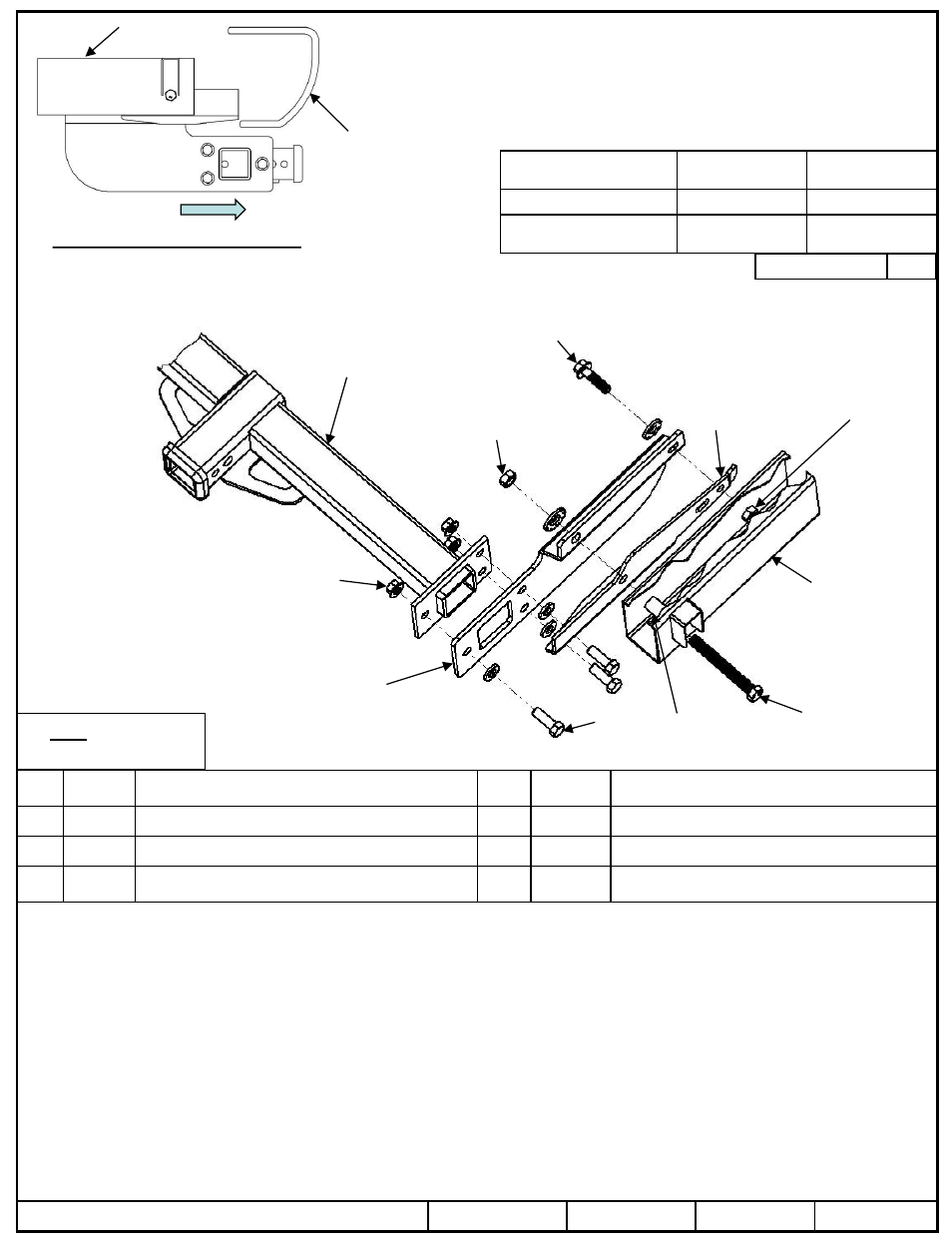

Hitch Shown In Proper Position
Equipment Required:
Wrenches: 19 mm, 22 mm, 3/4”
© 2013 Cequent Performance Products, Inc. Sheet 3 of 3 75808SAN 11-26-13 REV. A
j
Qty. (2) Hex Bolt M12 x 1.50 mm x 45 mm CL 10.9
n
Qty. (2) Conical Washer 5/8”
k
Qty. (2) Conical Washer 1/2” o
Qty. (6) Hex Bolt 1/2”-20 x 1-1/2” GR. 5
l
Qty. (2) Hex Bolt M14 x 2.00 mm x 120 mm CL 8.8
p
Qty. (6) Hardened Flat Washer 1/2”
m
Qty. (2) Hex Nut M14 x 2.00 mm CL 8.8 q Qty. (6) Flanged Lock Nut 1/2”-20 GR. G
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent
entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a
vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and
SAE J684.
Fastener Kit: 75808SAF
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Hitch type
Max Gross
Trailer WT (LB)
Max Tongue
WT (LB)
Weight Distributing 8,000 (3632 Kg) 800 (363 Kg)
Weight Carrying
Ball Mount
4,000 (1816 Kg) 600 (272 Kg)
Wiring Access Location: PU3
Form: F205 Rev C 9-17-2012
Accessory Rating C
Printed in Mexico
n
Tighten all 1/2”-20 GR. 5 fasteners with torque wrench to 90 Lb.-Ft. (122 N*M)
1. CAUTION: SUPPORT THE BUMPER STRUCTURE AS REQUIRED DURING HITCH INSTALLATION.
2. Remove the factory-installed bumper bracket (one side at a time).
3. Loosely attach the side bracket and bumper bracket (removed in Step 2) to the inboard side of the frame rail as shown.
4. Repeat Steps 2-3 for the other side of the vehicle.
5. Placing the receiver assembly between the side brackets, install the remaining fasteners as shown.
6. Torque all fasteners to specification.
Tighten all M12 CL 10.9 fasteners with torque wrench to 92 Lb.-Ft. (125 N*M)
j
k
m
l
o
p
Note: Fasteners
typical both sides
Factory-Installed
Bumper Bracket
Both Sides
Frame Rail
Both Sides
Receiver Assembly
(Install As Shown)
Side Bracket
Both Sides
Frame rail
Fascia
Rearward
Existing M12
Weld Nut
Both Sides
q
Tighten all M14 CL 8.8 fasteners with torque wrench to 100 Lb.-Ft. (136 N*M)
Frame Bushing
Both Sides
