7.2 Configuring the encoder

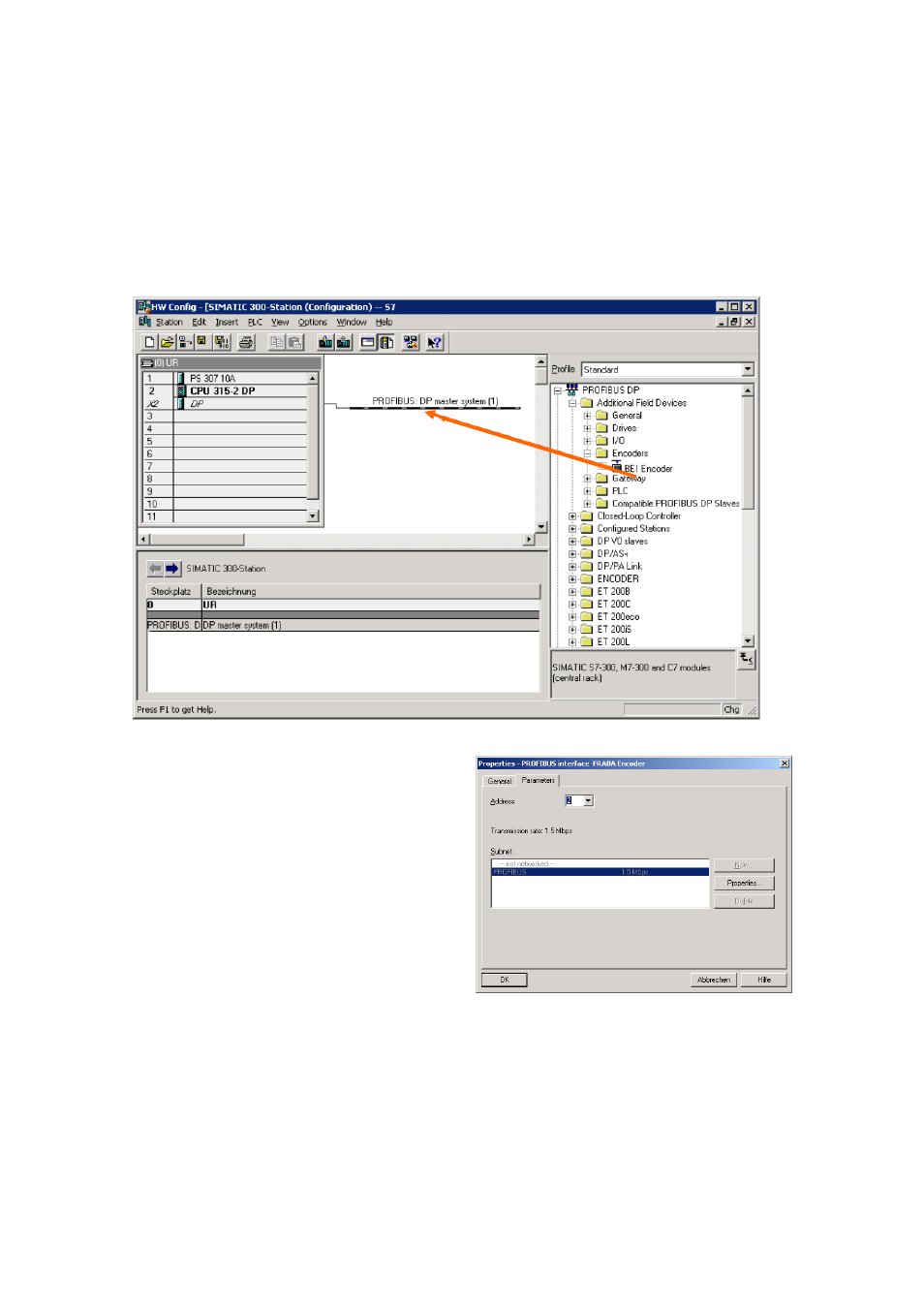

After inserting the Profibus master system in the
hardware configuration (“Insert” – “Master
System”) the encoder can be chosen from the
hardware catalogue and added to the profibus
network: Select the device “ Encoder” and drag it
with the mouse to the network (or choose the
network and double click the “ encoder”).
Now the slave address has to be entered (has to
be equal to the address setting in the connection
cap).
