Resolution and ROI frame rates
Mako G-419B/C: ROI frame rates

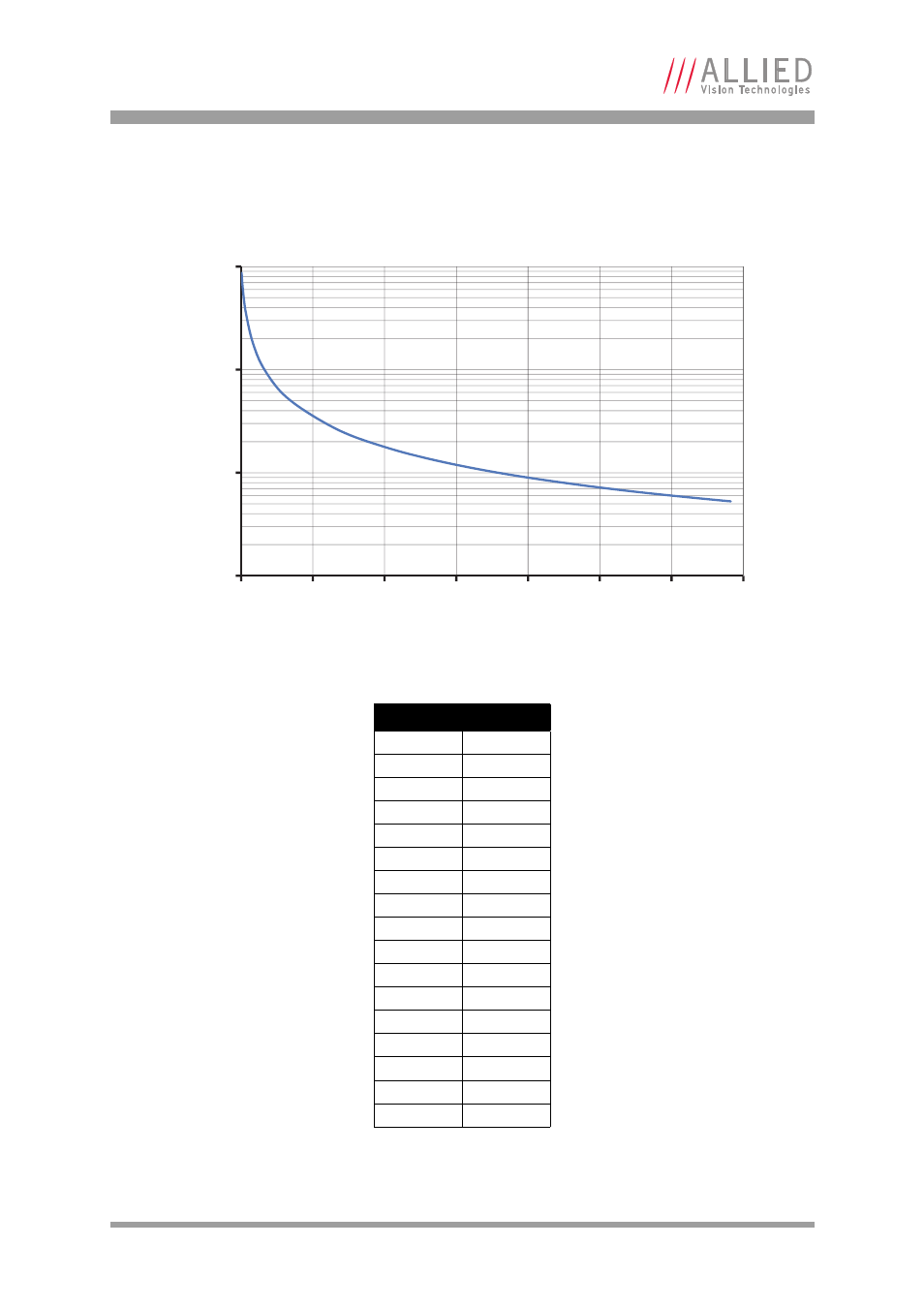

Figure 40: Frame rates Mako G-419 as function of ROI height
ROI height Frame rate
2048 26.36
2000 26.99
1800 29.97
1600 33.69
1400 38.47
1200 44.83
1000 53.70
800 66.95
600 88.87
400 132.17
200 257.71
100 490.80
50 895.98
20 1775.57
10 2639.22
5 3486.75
2 4342.16
Table 22: Frame rates (fps) of Mako G-419 as function of ROI height (pixel)
