Page 37
Mako Technical Manual V2.0.4
37
Camera interfaces
Gigabit Ethernet port
The Gigabit Ethernet port conforms to the IEEE 802.31000BASE-T standard for
Gigabit Ethernet over copper. To prevent EMI (electromagnetic interference)
and for best performance, Category 6 (or higher) cables with S/STP shielding
and connectors are recommended. Applications with longer cable lengths or
harsh EMI conditions require Category 7 (or higher) cables.
Mako I/O connector pin assignment
The General Purpose I/O port uses a Hirose HR25-7TR-8PA(73) connector on the
camera side. The mating cable connector is Hirose HR25-7TP-8S.
Note
•
Cable lengths up to 100 m are supported.
•
The 8-pin RJ-45 jack provides a pin assignment according
to the Ethernet standard (IEEE 802.3 1000BASE-T).
•
All Mako cameras are PoE capable (802.3af/at).
•
If both interfaces are used for power (I/O and GigE con-
nector via PoE), the camera will only use the power from
the I/O connector.
Accessories
•
Cables are available from AVT:

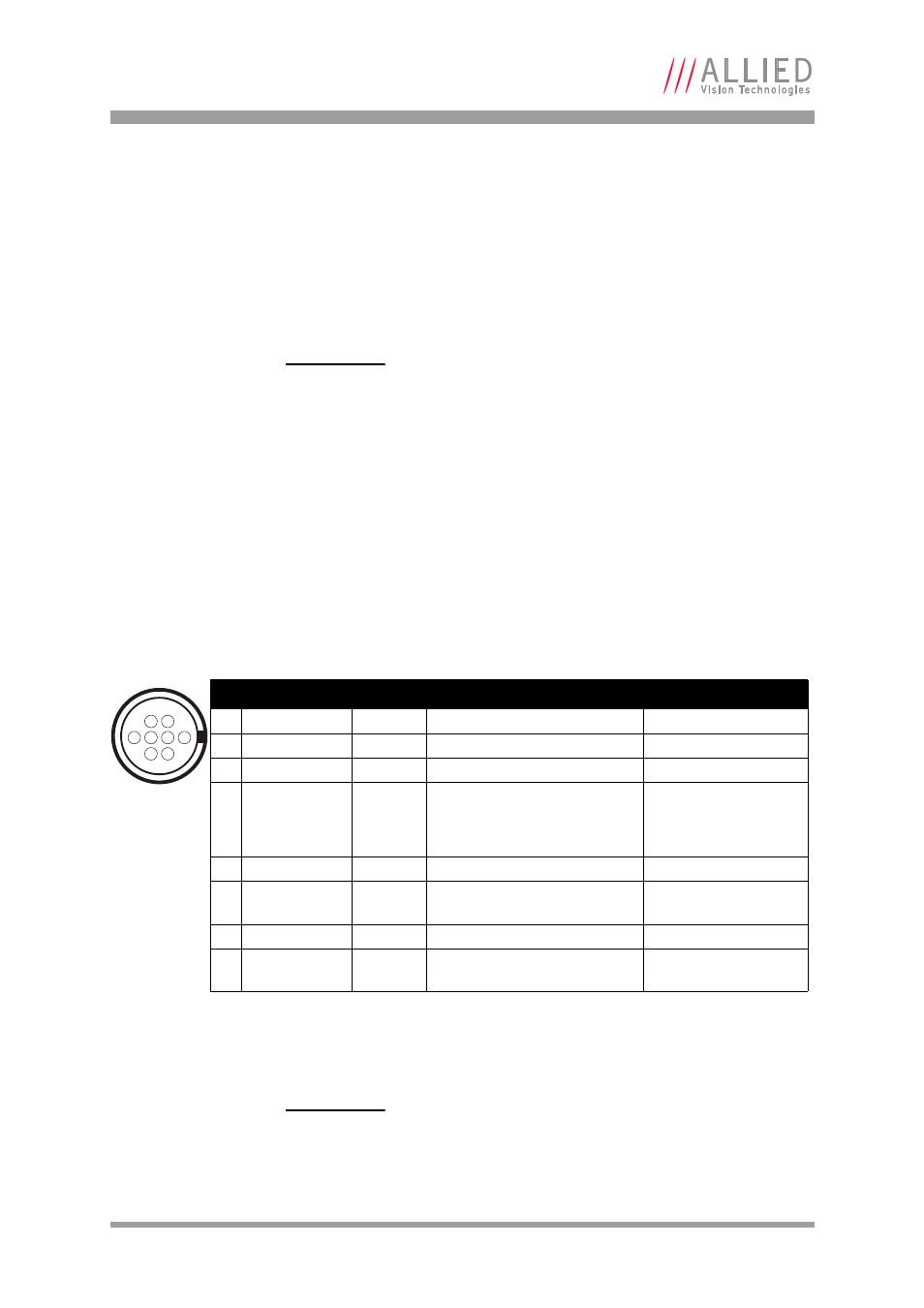

Figure 24: Camera I/O connector pin assignment
Note
The cable side Hirose connector is available for purchase
from AVT.
AVT P/N: K7600503
2
5
4
7
1
3
6
8
Pin Signal
Direction Level
Description
1 Out 1
Out
Open emitter, max. 20 mA
Output 1
2 Out 2
Out
Open emitter, max. 20 mA
Output 2
3 Out 3
Out
Open emitter, max. 20 mA
Output 3
4 In 1
In
U
in
(high) = 3.0–24.0 V
up to 36 V with external resistor
of 3.3 k
in series
U
in
(low) = 0–1.0 V
Input 1
5 Camera In GND In
---
GND for input
6 Camera Out
Power
In
Common VCC for outputs max.
30 V DC
Power input for opto-
isolated outputs
7 Camera Power ---
12–24 V DC +/- 10%
Camera power supply
8 Ext GND
---
GND for ext. Power
External Ground for
external Power
