Camera dimensions
Camera dimensions
Tripod adapter
This tripod adapter (AVT order number
4807) ...
•
... can be used for Mako cameras.
•
... is only designed for standard housings.
Note
For information on sensor position accuracy (sensor shift x/y,
optical back focal length z and sensor rotation
):
see
Body size: 29.7 mm x 26 mm x 10 mm (L x W x H)

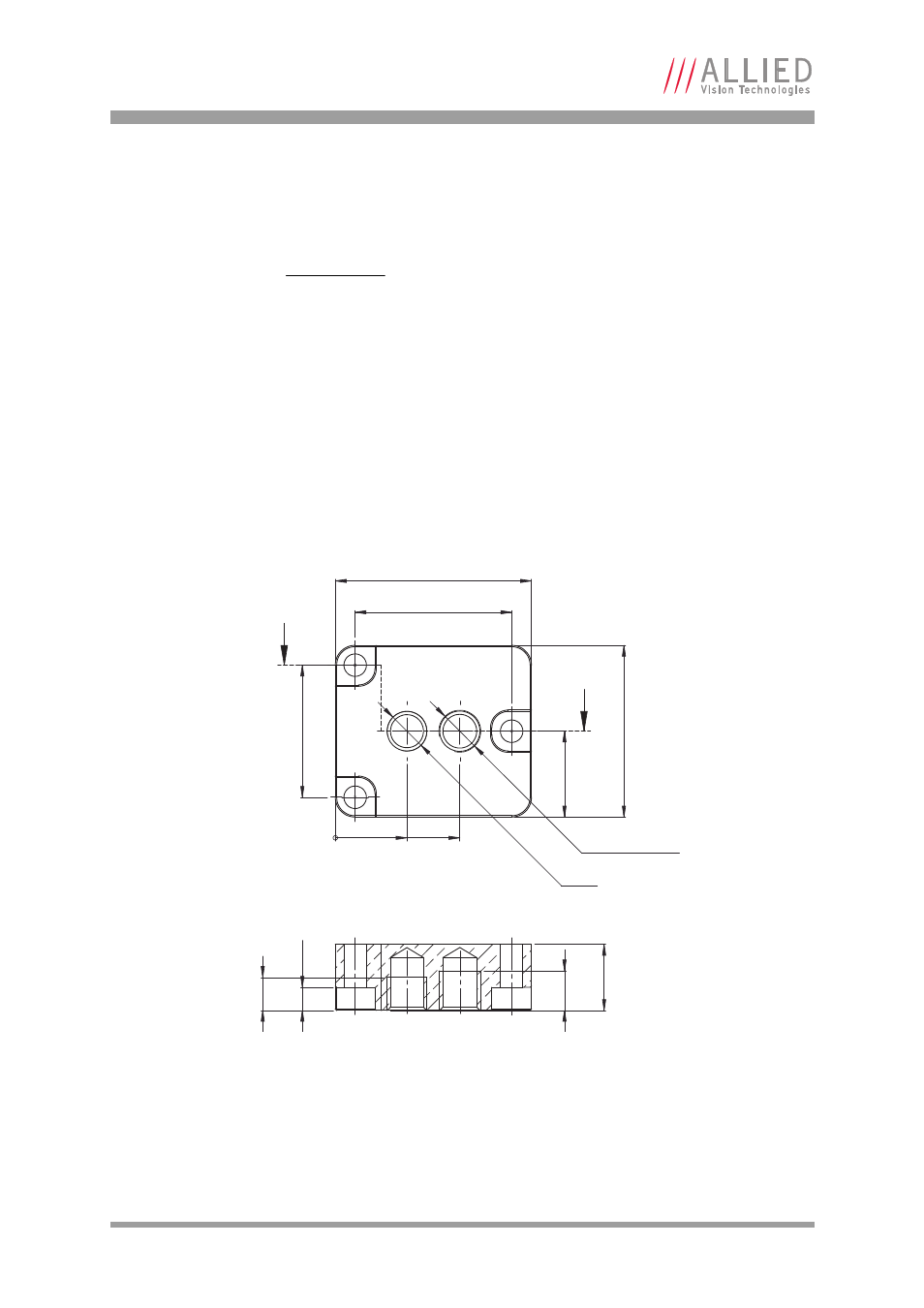

Figure 17: Tripod adapter dimensions
29.7
26
13
20
23.7
UNC 1/4-20
M6
0
10.9
18.9
A
A
10
3.5
5
6
A-A
