Camera dimensions
Cross section: C-Mount
• All color Mako cameras are equipped with the same IR cut filter type.
• Mako G-032 and Mako G-125 are equipped with a 16 mm diameter filter /
protection glass.
• Mako G-223 and Mako G-419 are equipped with a 22 mm diameter filter /
protection glass.
www

Choose protection glass or filter according to the
AVT Modular Camera Concept:
http://www.alliedvisiontec.com/us/support/downloads/
product-literature/avt-modular-concept.html

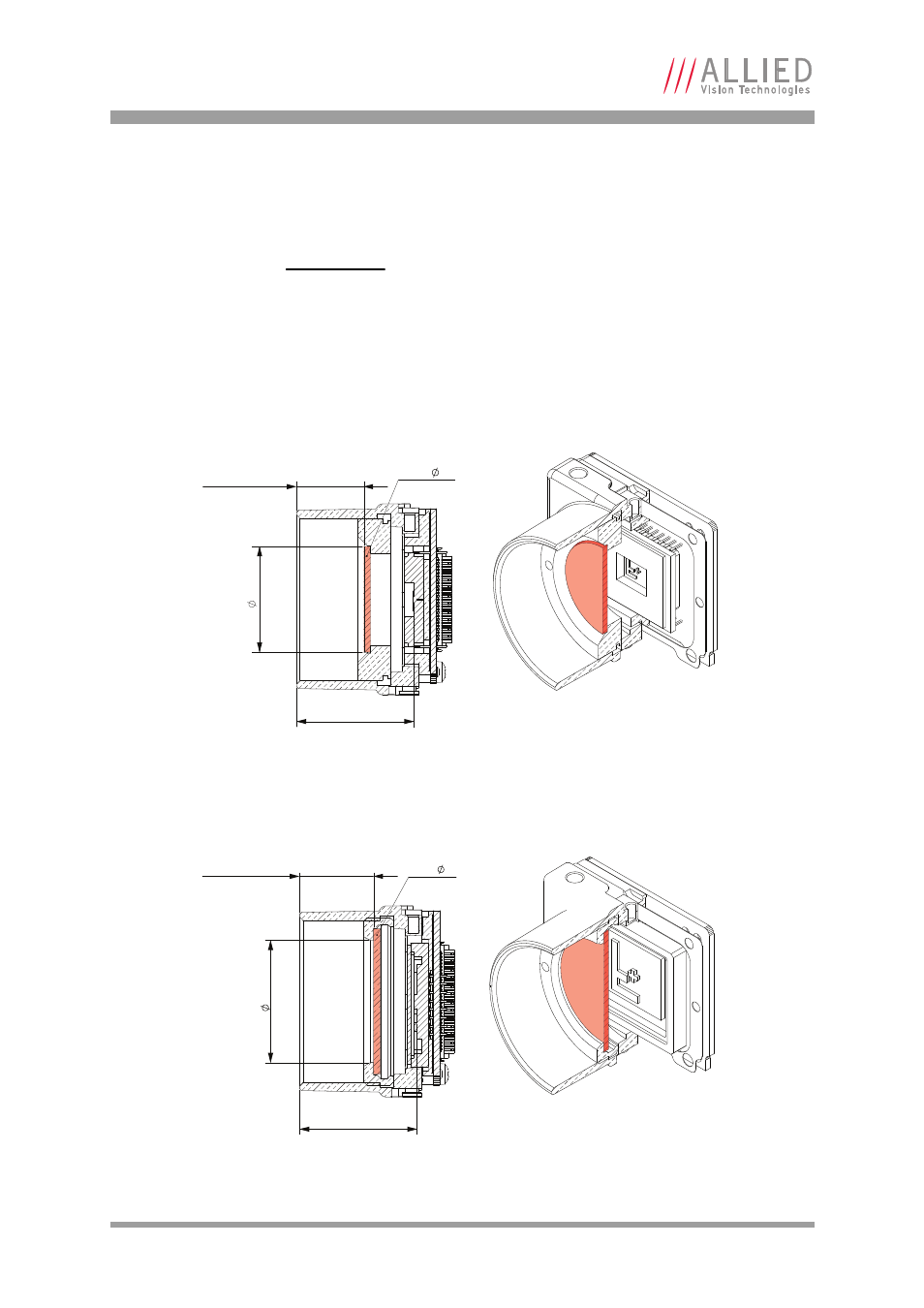

Figure 18: Mako C-Mount dimensions G-032 / G-125 (16 mm filter)
Figure 19: Mako C-Mount dimensions G-223 /G-419 (22 mm filter)
Filter 16
Maximum
protrusion: 9.8
C-Mount
16
Filter 22
18.5
Maximum
protrusion: 10.8
C-Mount
