ALLIED Vision Technologies Mako G-419 NIR - Manual (Page 42)

Mako Technical Manual V2.0.4
42
Camera interfaces
Imaging Imaging is high when the camera image sensor is either exposing and/or
reading out data.
Acquiring Active during an acquisition stream.
SyncIn1 Active when there is an external trigger at SyncIn1.
Strobe1 The output signal is controlled according to Strobe1 settings.

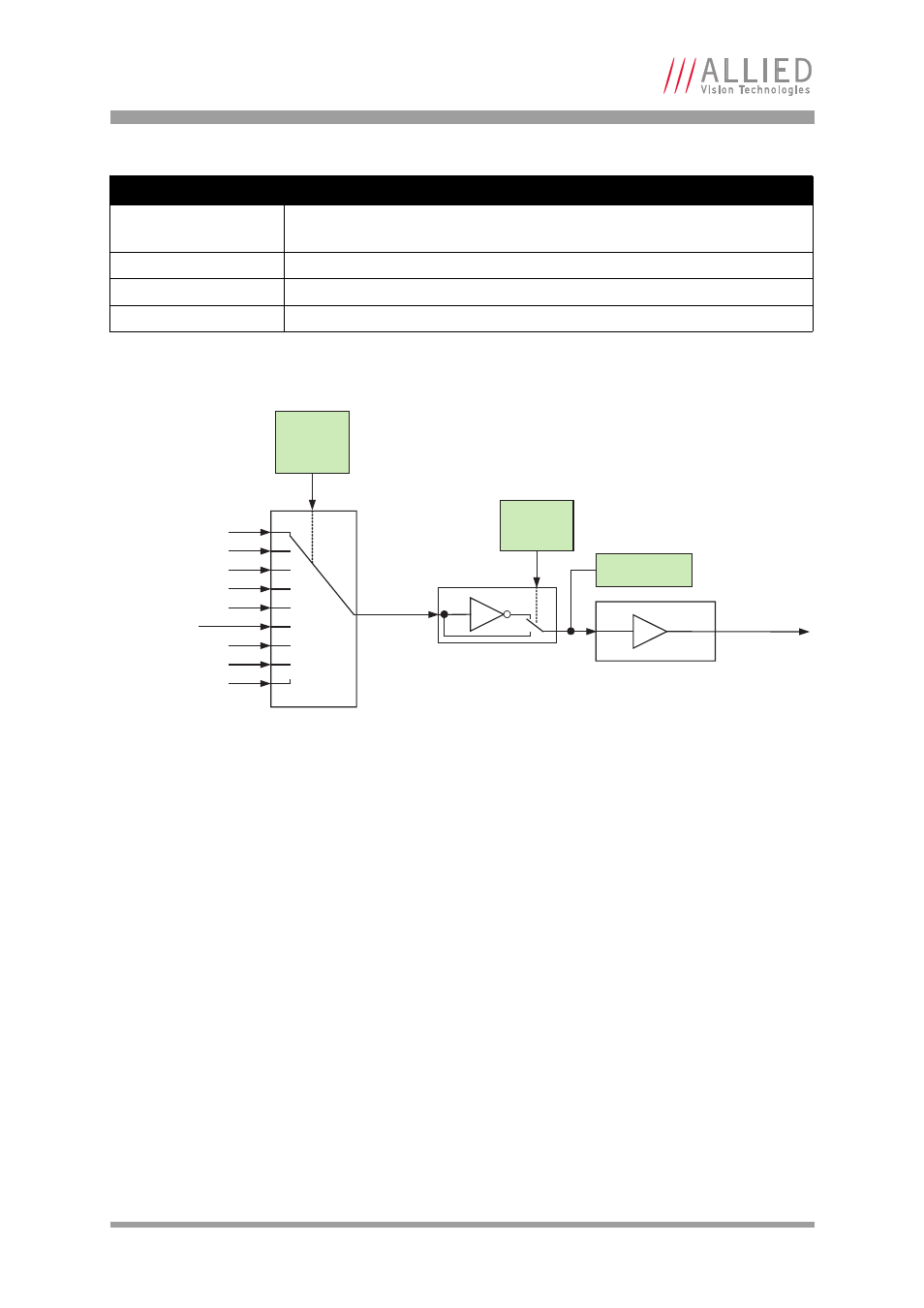

Figure 31: Output block diagram
Signal Description
Table 15: Output signals
GPO
Output signal
Optocoupler
Polarity
selectable
via software
Read from
software
Output
mode
selectable
via software
AcquisitionTriggerReady
FrameTriggerReady
FrameTrigger
Exposing
FrameReadout
Acquiring
SyncIn1
Strobe1
