Resolution and ROI frame rates
Mako G-223B/C: ROI frame rates

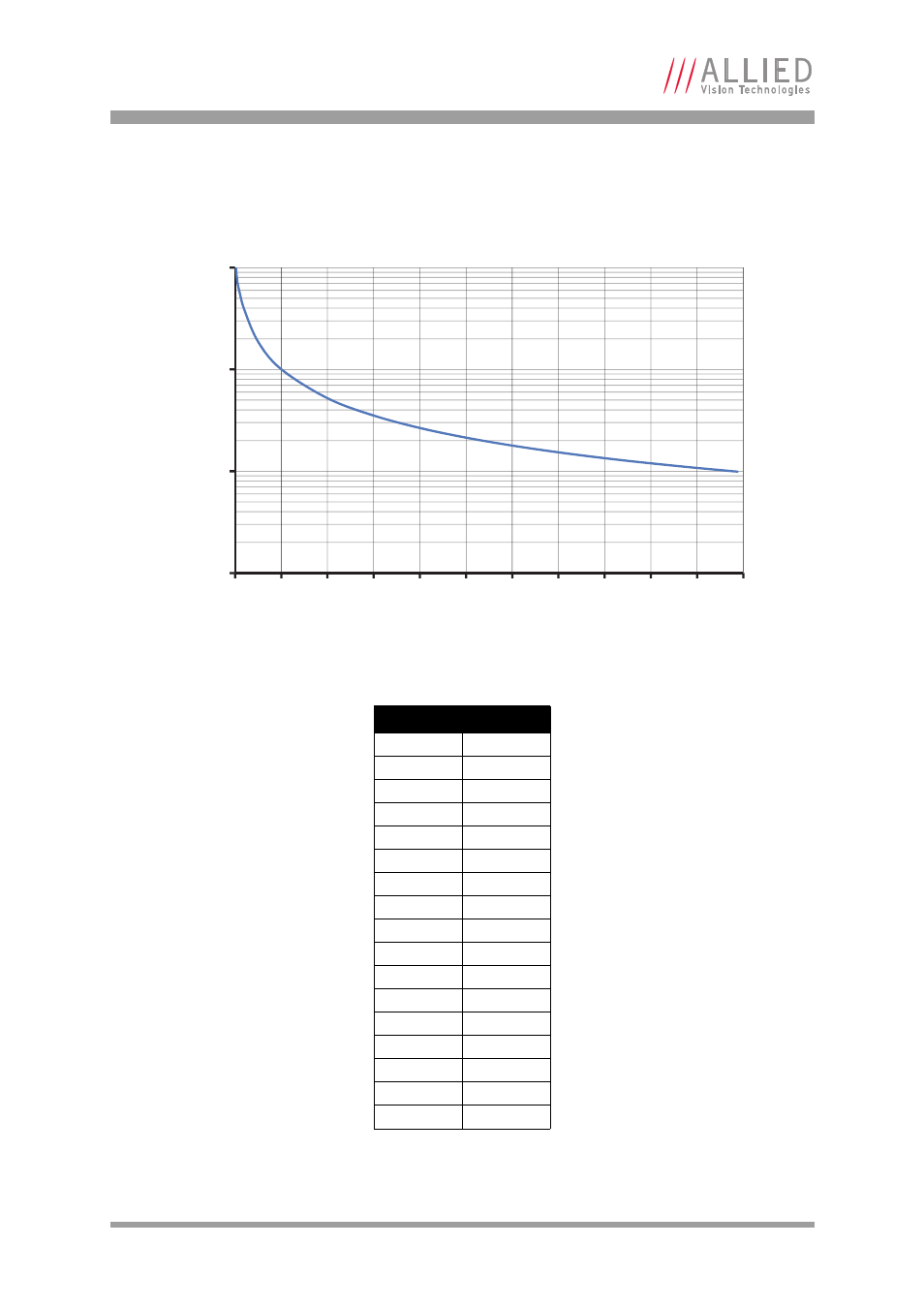

Figure 39: Frame rates Mako G-223 as function of ROI height
ROI height Frame rate
1088 49.51
1000 53.83
900 59.76
800 67.15
700 76.64
600 89.24
500 106.81
400 132.98
300 176.15
200 260.80
100 502.16
50 934.67
20 1933.86
10 2847.38
5 3624.50
2 4906.77
1 4926.11
Table 21: Frame rates (fps) of Mako G-223 as function of ROI height (pixel)
5
50
500
5000
0 100 200 300 400 500 600 700 800 900 1000 1100
Fr
a
m
e
r
a
te
[
fp
s]
ROI height [pixel]
