Camera dimensions
Adjustment of the C-Mount and CS-Mount
The dimensional adjustment cannot be done by the customer. All modifications
have to be done by the AVT factory.
Mako standard housing
Note

If you need any adjustments, please contact Customer Care:
For phone numbers and e-mail:
see Contacting Allied Vision Technologies on page 5.

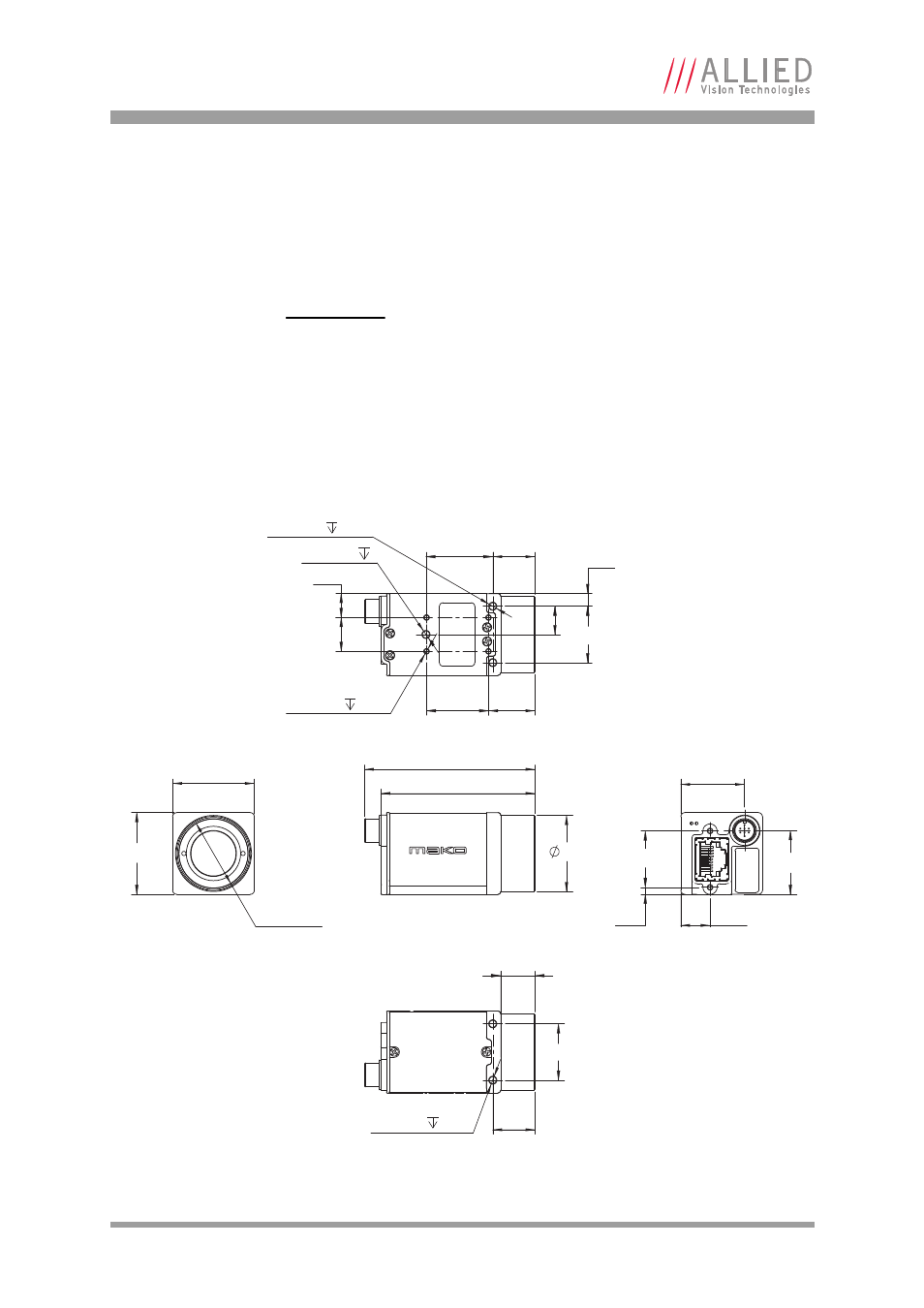

Figure 22: Camera dimensions standard housing (in mm)
27
54.7
60.5
22.6
22.6
20
2.5 10.4
M2 - 2.2 (4x)
M3 - 2.3 (2x)
8.5
12
16.5 22
23.7 15
4.5
10
20
M3 - 2.2
20
15
12.2
M3 - 2.3 (2x)
C-Mount
29
29
