2-16
Chapter 2
Cajun P550/P880 Manager User Guide
3. The Hunt Group Configuration dialog box opens in the
System Information and Virtual LAN pane (Figure 2-4).

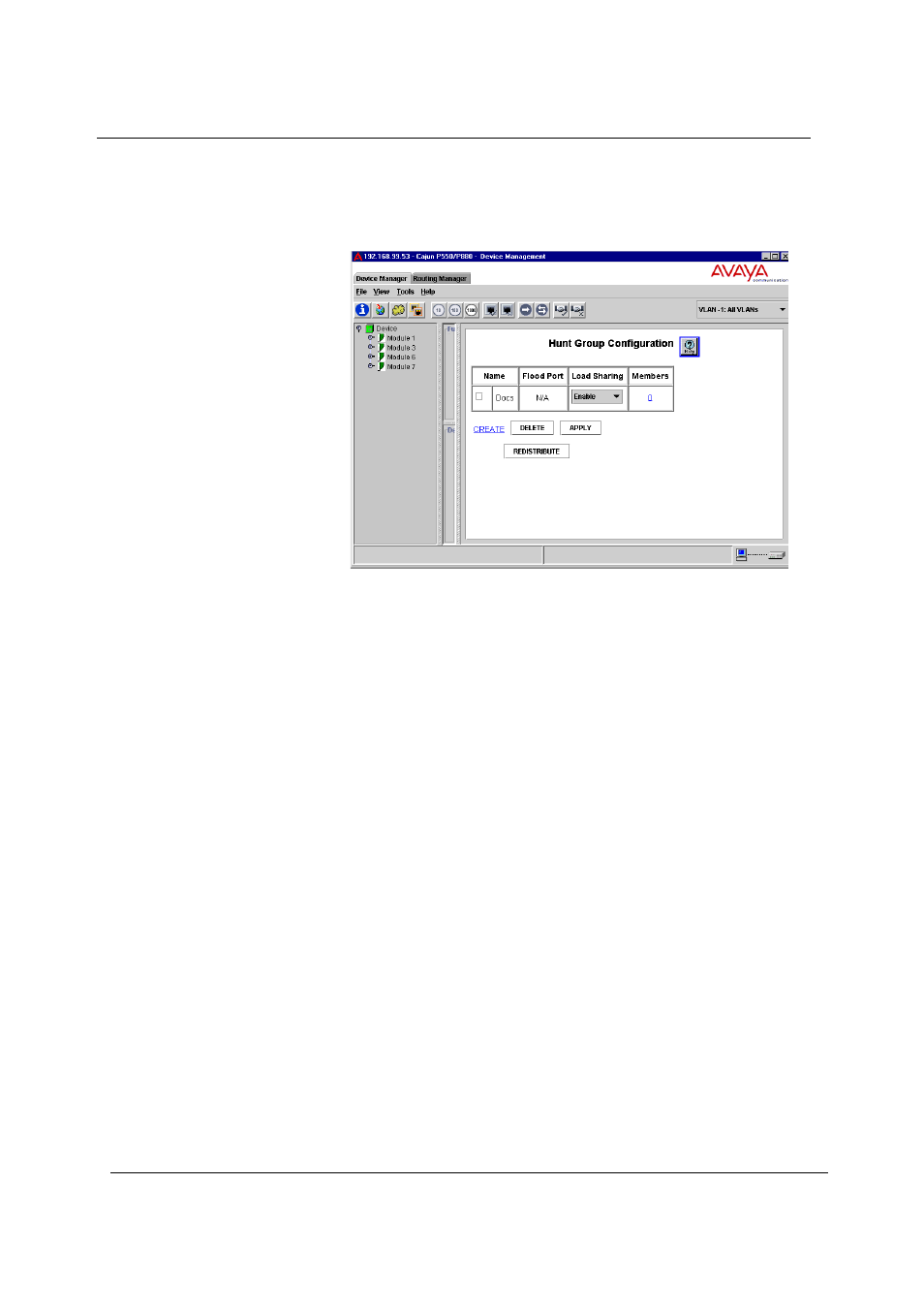

Figure 2-4. Hunt Group Configuration Dialog Box
4. Click CREATE. The Create Hunt Group dialog box opens.
5. In the Name field, enter a name for the end of the hunt
group.
6. From the Load Sharing pull-down menu, select Enable to
enable load sharing.
7. Click APPLY to save your changes, or CANCEL to restore
previous settings.
Viewing Hunt Group Members
To view hunt group members:
1. Start Cajun P550/P880 Manager. For information about
starting the P550/P880 Manager, refer to "Starting the Cajun
P550/P880 Manager", earlier in this chapter.
2. Select Tools > Link Aggregation.
Or
From the tool bar, click Link Aggregation.
The Hunt Group Configuration dialog box opens in the
System Information and Virtual LAN pane (Figure 2-4).
