Caution STATIC-SENSITIVE DEVICE. Use anti-static procedures when removing,
configuring, and installing a module. The Form C Switch is susceptible to
static discharges. Do not install the Form C Switch without its metal shield
attached.
Connecting User Inputs
The Form C Switch consists of a component module and a connector block.
User inputs to the Form C Switch are to the NO, NC, and C terminal
connectors on the terminal block. Figure 2-1 shows the connector block and
associated channel numbers. Figure 2-2 shows how to connect user (field)
wiring to the connector block.

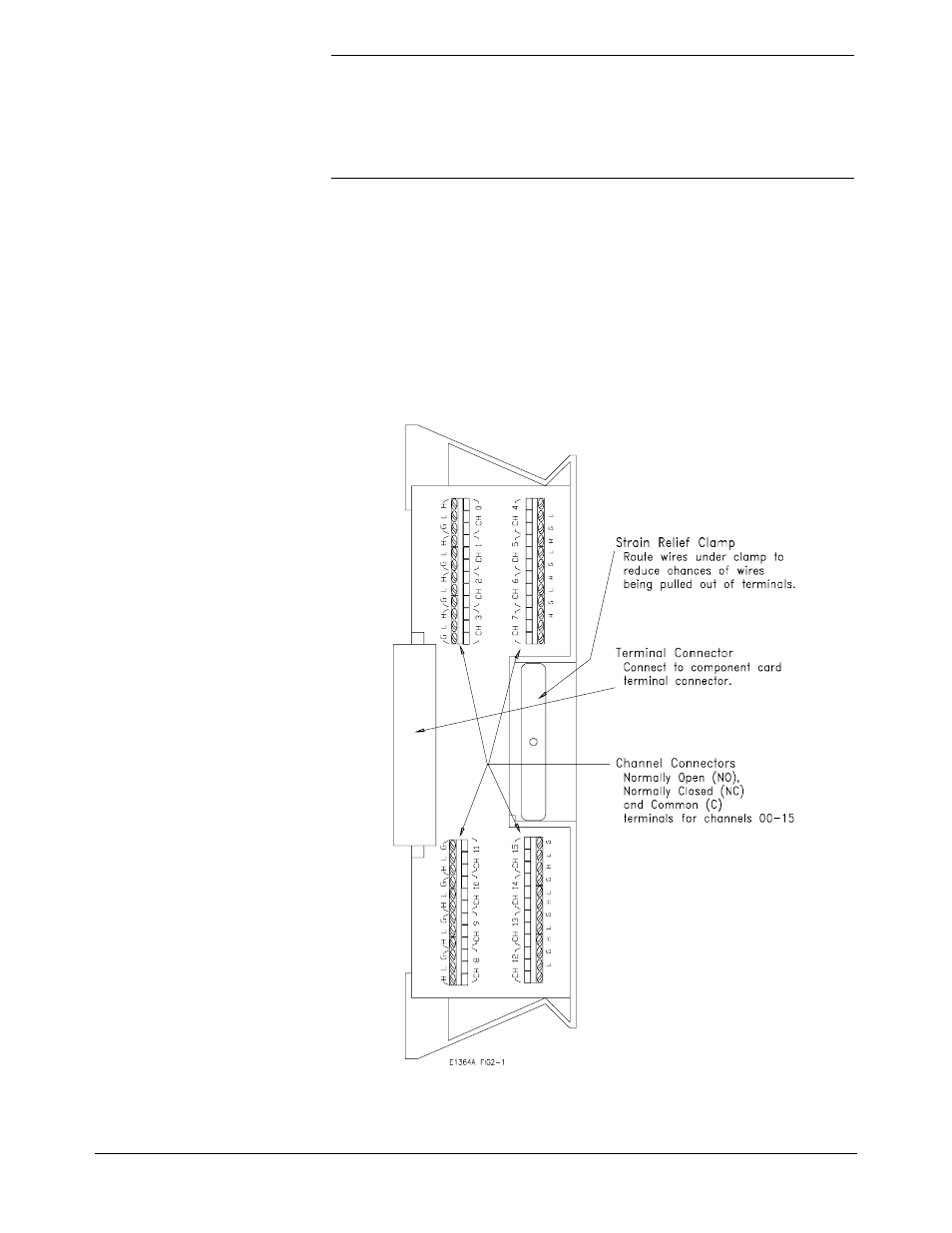

Figure 2-1. Form C Switch Terminal Block
