26

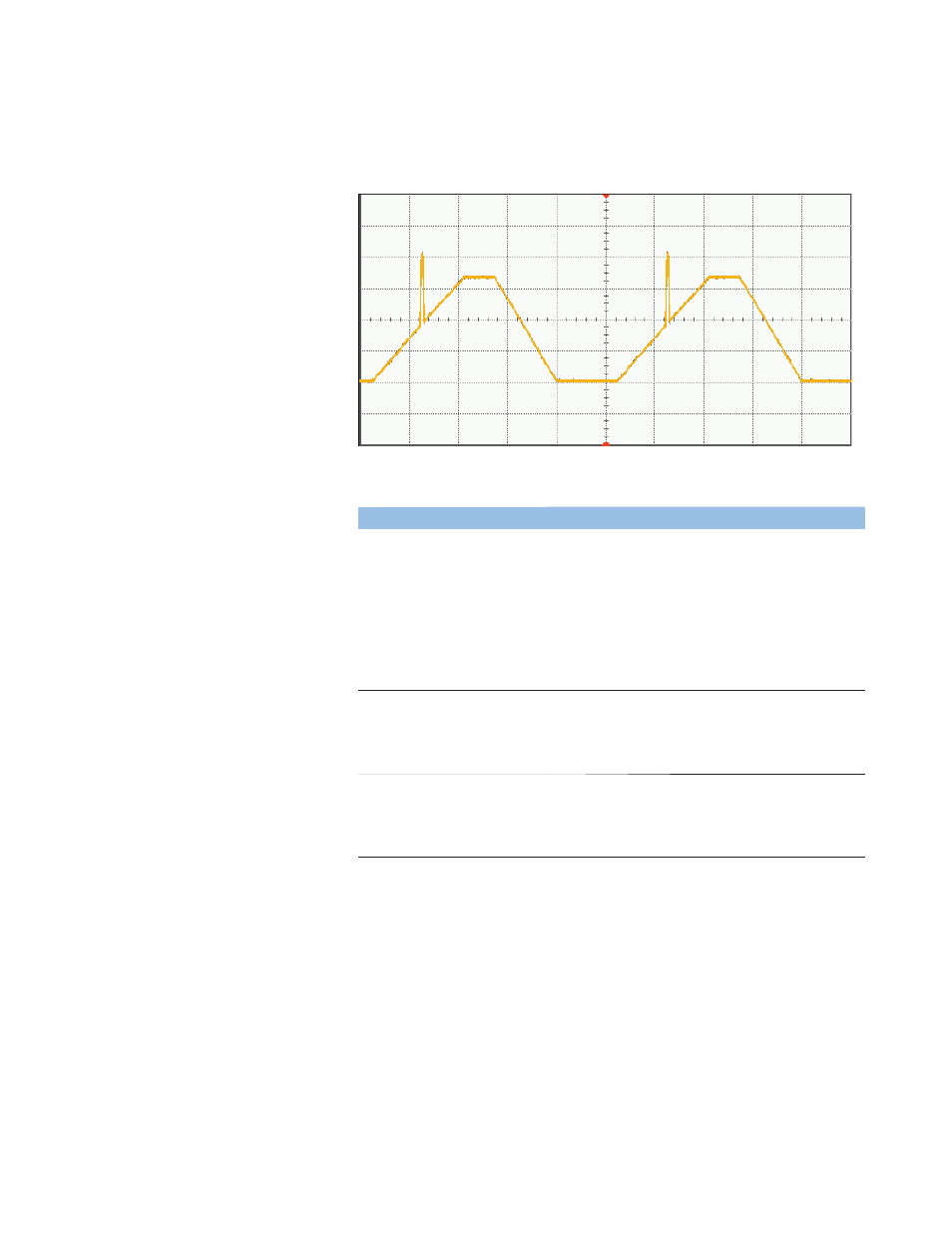

Digital Channel Addition If the instrument is equipped with two output channels, channel 2 can be added to
channel 1 internally. The maximum output voltage of channel 1 remains unchanged. If
channel addition is selected, channel 2 outputs the unchanged waveform of channel 2.
Timing Characteristics External In timing characteristics
81150A 81160A
Delay: External In to Main Out 1, 2
Fix delay
Advance mode: off, burst
Advanced mode: sweep
Pattern mode: on
Variable delay
(1)
Range
Resolution
Accuracy
366 ns typ.
350 ns typ.
406 ns typ.
Independent for Out 1, Out 2
0 s to 1000 s
(2)
1 ps, 6 digits
± 25 ps ± 50 ppm
404 ns typ.
404 ns typ.
404 ns typ.
Independent for Out 1, Out 2
0 s to 1000 s
(2)
1 ps, 6 digits
± 35 ps ± 50 ppm
Delay
Fix delay
Advanced mode: off, burst
Advanced mode: sweep
Pattern mode: on External In to Trigger Out 1, 2
366 ns typ.
350 ns typ.
406 ns typ.
External In to Sync Out A, B
404 ns typ.
404 ns typ.
404 ns typ.
Jitter (3)
External In to Main Out 1, 2
External In to Trigger Out 1, 2
External In to Strobe Out 1, 2
External In to Sync Out A, B 15 ps RMS typ.
15 ps RMS typ.
15 ps RMS typ.
― 15 ps RMS typ.
―
―
15 ps RMS typ.
1) Not available, if sweep or modulation is selected
2) Trigger period ≥ variable delay
3) External in amplitude > 500 mV. External in transition time < 10 ns. Valid for externally triggered pulse,
square, sine, ramp, arb. Externally triggered noise or externally triggered sweep has peak-peak jitter of 8 ns
for the 81150A and 3.2 ns for the 81160A, measured with 50 Ω source impedance at main output.
