4
Agilent 8722D with 2.4 mm test ports
Standard, Options 400, 012, 089, or any combination
of these options.
Calibration kit: Agilent 85056A, 2.4 mm with sliding loads
Cables: Agilent 85133F 2.4 mm flexible cable set
IF bandwidth: 10 Hz
Averaging: None (8 during isolation calibration)
System dynamic range
0.05 to 2 GHz 93 dB 1
2 to 8 GHz 93 dB
8 to 20 GHz 91 dB
20 to 40 GHz 80 dB
1. Rolls off below 840 MHz to 72 dB at 50 MHz
Corrected measurement port characteristics
Frequency Range (GHz)
0.05 to 2 2 to 8 8 to 20 20 to 40
Directivity 42 dB 42 dB 42 dB 38 dB
Source Match 41 dB 38 dB 38 dB 33 dB
Load Match 42 dB 42 dB 42 dB 38 dB
Reflection Tracking ±0.005 dB ±0.010 dB ±0.010 dB ±0.021 dB
Transmission Tracking ±0.020 dB ±0.038 dB ±0.048 dB ±0.110 dB
Maximum output power
0.05 to 20 GHz: -5 dBm
20 to 40 GHz: -10 dBm
System performance (continued)

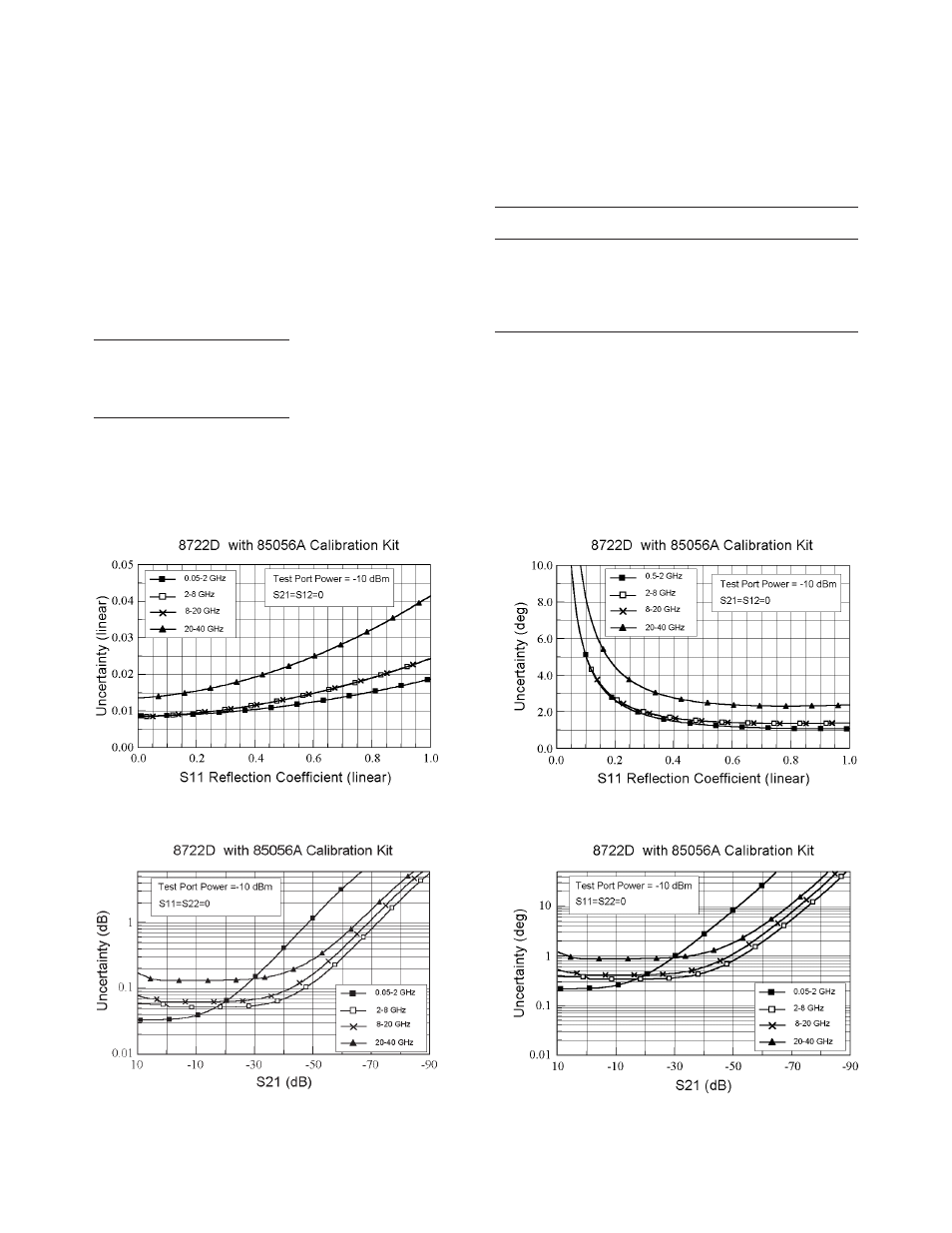

Measurement uncertainty
Reflection measurements
Transmission measurements
Magnitude
Magnitude
Phase
Phase
