6.0 Data Management, continued
6.3
SCTE-HMS MIB Alarms, continued
6.3.2 Distributing Alarm Settings, continued

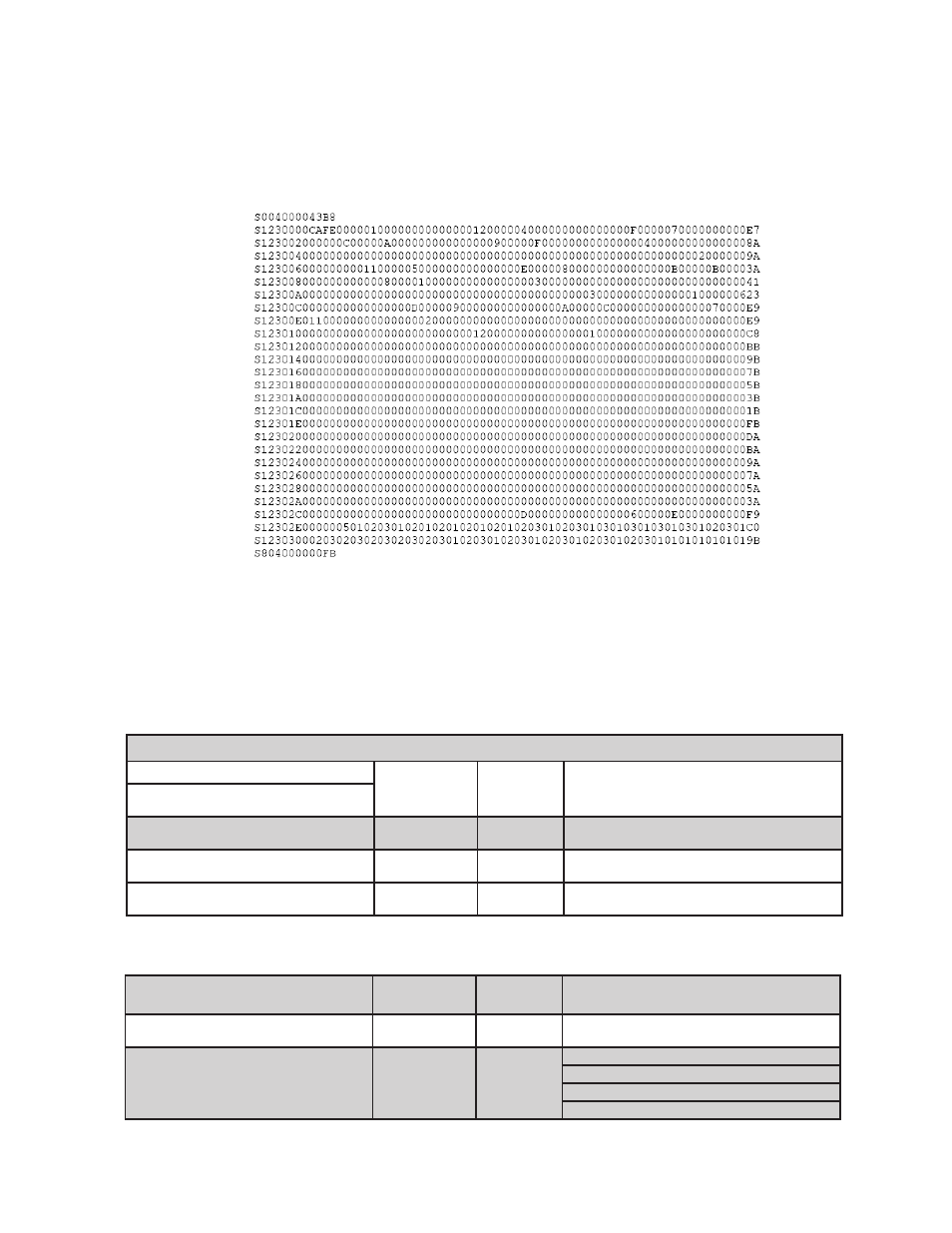

The .s19 file should now look like the following:
Save the file as “HMScfg.s19” and move it to a TFTP server on the network that is
accessible by the XP-DSMs that you want to update.
STEP 3: Distribute the .s19 file to other XP-DSMs.
The .s19 file is distributed to other XP-DSMs by setting the following Alpha MIB
parameters to the indicated values. This can be done to an individual XP-DSM using
the local port (see Section 4.0 ) or a MIB browser, or to multiple XP-DSMs by using a
DSM Setup File (see Section 3.4 ):
XP-DSM Alarm Settings Distribution Parameters
Parameter Local Port
Parameter
Type Value
atiMgntSysDownload
OID: 1.3.6.1.4.1.926.1.3.2.1
atiMgmtSysDownloadTftpAddress
OID: 1.3.6.1.4.1.926.1.3.2.1.1
[Text]
DOWN IP
IP address The IP address of the modem’s TFTP server on
which HMScfg.s19 is stored.
atiMgmtSysDownloadCtrl
OID: 1.3.6.1.4.1.926.1.3.2.1.2
[Discrete] GET
NEW IMAGE
Integer 1 = Initiate download of .s19 file.
atiMgmtSysDownloadFile1
1.3.6.1.4.1.926.1.3.2.1.4
[Text]
DOWN NAME 1
Octet String Set to HMScfg.s19.
Parameter Local Port
Parameter
Type Value
atiMgmtSysDownloadProgress
OID: 1.3.6.1.4.1.926.1.3.2.1.6
Integer Byte count of file download process.
atiMgmtSysDownloadStatus
OID: 1.3.6.1.4.1.926.1.3.2.1.3
[Text]
DOWN STAT
Read Only
Integer
1 = Idle
5 = Transferring
6 = Testing
8 = Error
The status of the alarm settings download can be monitored with the following
parameters:
Verify the XP-DSMs’ property tables have been updated using an SNMP manager.
