35 745-814-B0-001, Rev. A
6.0 Data Management, continued
6.3
SCTE-HMS MIB Alarms, continued
6.3.1 SCTE-HMS Configurable Alarms, continued
Example:

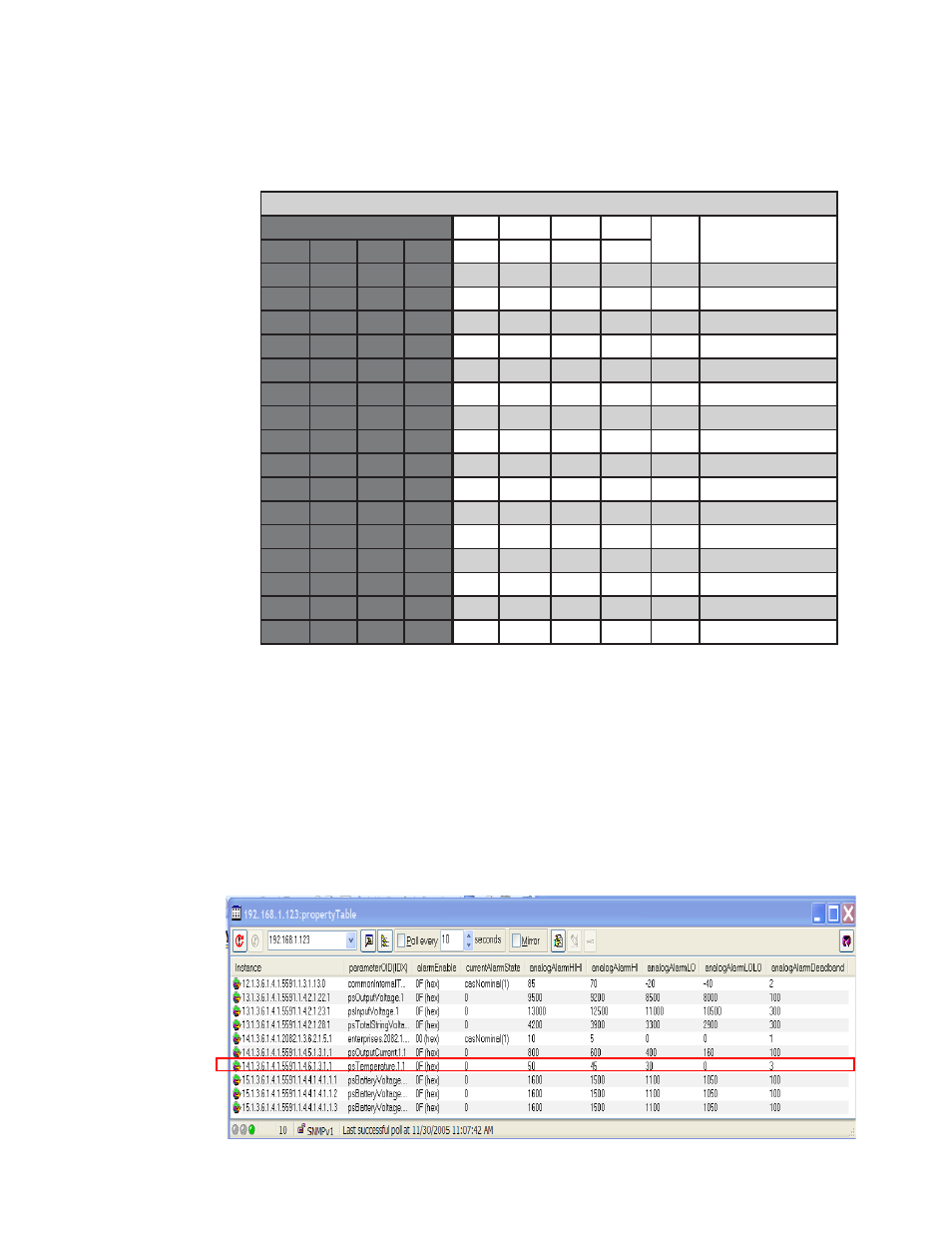

The alarms for psTemperature below are set so that the normal temperature range
is from 30°C to 45°C. If the temperature rises above 45°C, a casHI alarm will be
sent to the alarmTable. Anything over 50°C is considered a critical condition and
will generate a casHIHI alarm. If the temperature falls below the normal level of
30 degrees, and casLO will be generated, and if it continues to drop below 0, a
casLOLO will be generated. The temperature must rise above the LOLO limit plus
the deadband value of 3°C before the casLOLO alarm will change to a casLO. The
alarmEnable field is set to 0F Hex to monitor and alarm for all conditions.
Binary to Hex Conversions for Alarm Settings
Unused HiHi Hi Lo LoLo Hex Enabled Alarms
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
0 0 0 0 0 0 0 0 00 No Alarms
0 0 0 0 0 0 0 1 01 LoLo
0 0 0 0 0 0 1 0 02 Lo
0 0 0 0 0 0 1 1 03 Lo, LoLo
0 0 0 0 0 1 0 0 04 Hi
0 0 0 0 0 1 0 1 05 Hi, LoLo
0 0 0 0 0 1 1 0 06 Hi, Lo
0 0 0 0 0 1 1 1 07 Hi, Lo, LoLo
0 0 0 0 1 0 0 0 08 HiHI
0 0 0 0 1 0 0 1 09 HiHi, LoLo
0 0 0 0 1 0 1 0 0A HiHi, Lo
0 0 0 0 1 0 1 1 0B HiHi, Lo, LoLo
0 0 0 0 1 1 0 0 0C HiHi, Hi
0 0 0 0 1 1 0 1 0D HiHi, Hi, LoLo
0 0 0 0 1 1 1 0 0E HiHi, Hi, Lo
0 0 0 0 1 1 1 1 0F HiHi, Hi, Lo, LoLo
Table 6-3, Binary to Hex Conversions for Alarm Settings
psTemerature
