3.1.1 USM2.5 Jumper Settings

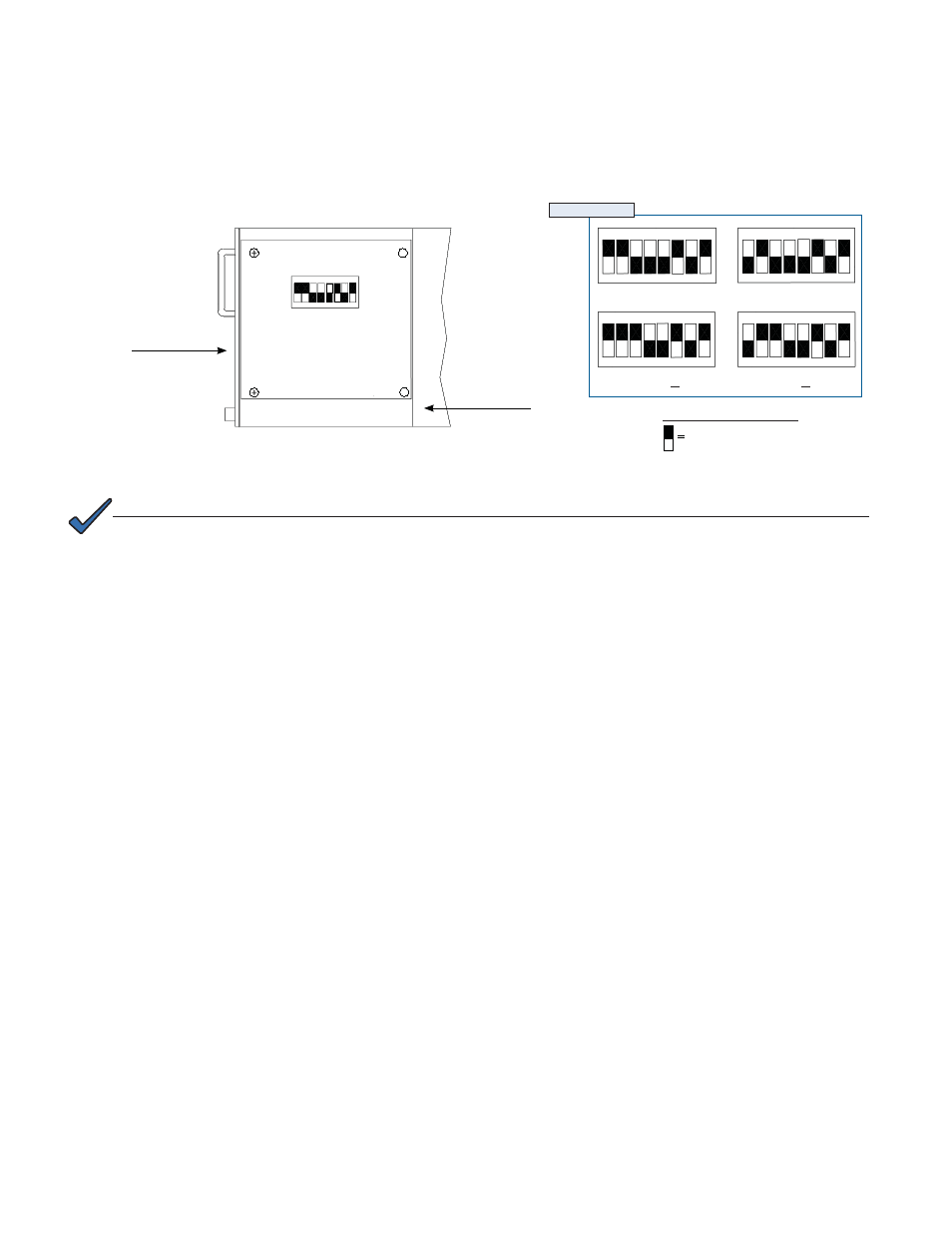

Fig. 3-1, USM2.5 Switch/Jumper Settings
FRONT PANEL
POWER SUPPLY
CHASSIS
ON
SW1
48V and
>
20A
ON
48V and <20A
ON
<48V and
>
20A
ON
ON
<48V and <20A
ON
SW1 Settings:
Legend:
3.0 Installation Instructions for Specifi c Power Supplies, continued
3.1 Alpha XM2 Series, continued
NOTE:
The switch settings in this section apply only to the EDH-A2 and differ from the EDH-A. Refer to the EDH-A
Installation Manual for EDH-A installation procedures.
3.1.2 Output Voltage Calibration
EDH-A2 supports AC Scaling for Output Voltage measurements and does not require
USM2.5 potentiometer calibration.
