Installation – Alpha Technologies FlexPoint AX Series User Manual
Page 25

25
010-318-C0-007, Rev. G
4. Installation
Loosen
Remove
4.5
Component Interconnection, continued
4.5.3 Alternate connection method for AX-12D BBPS-17
It may be necessary to pivot the microboard assembly slightly to facilitate the installation
or replacement of the input and output cables (Applicable to either the
AX-12D-BBPS-7.2, or AX-12D-BBPS-17 models).
Alternate connection procedure:
1. Disconnect one lead from the battery to assure power to the load is removed.
2. Verify power to load is not currently supplied by the battery.
3. Disconnect one leg of the battery.
4. Loosen the upper mounting screw.
5. Remove the lower mounting screw.
6. Rotate microboard for ease of access.
7. Make necessary connections/repair to input and/or output cables.
8. Return microboard assembly to original position, replace hardware.
9. Reconnect
battery.
10. Replace Battery Module Cover.

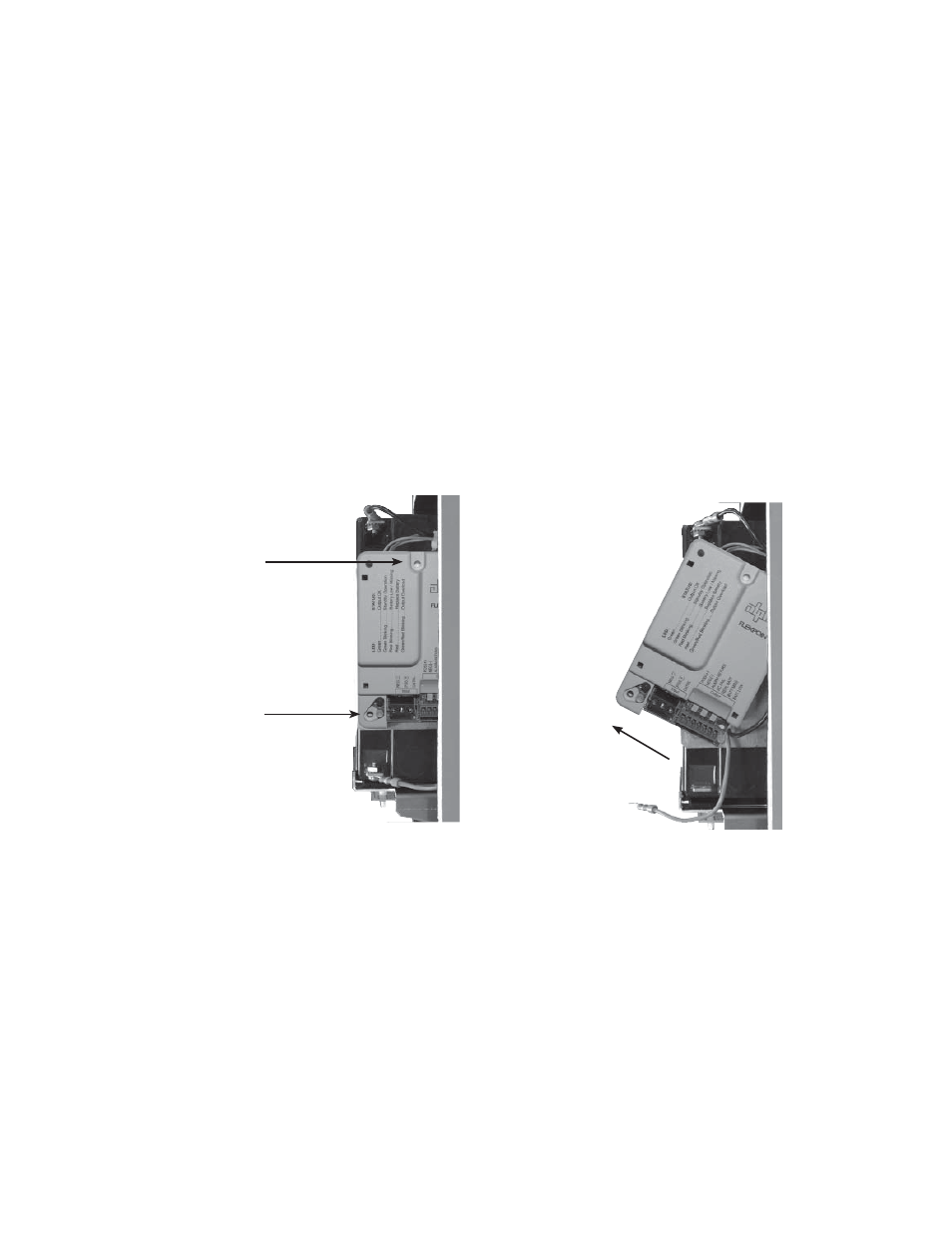

Fig. 4-5, Rotating the Microboard
