1. Introduction
AX-12D-BBPS-7.2
7.2Ah Battery Backup Power Supply
AX-12D-BBPS-17
17Ah Battery Backup Power Supply

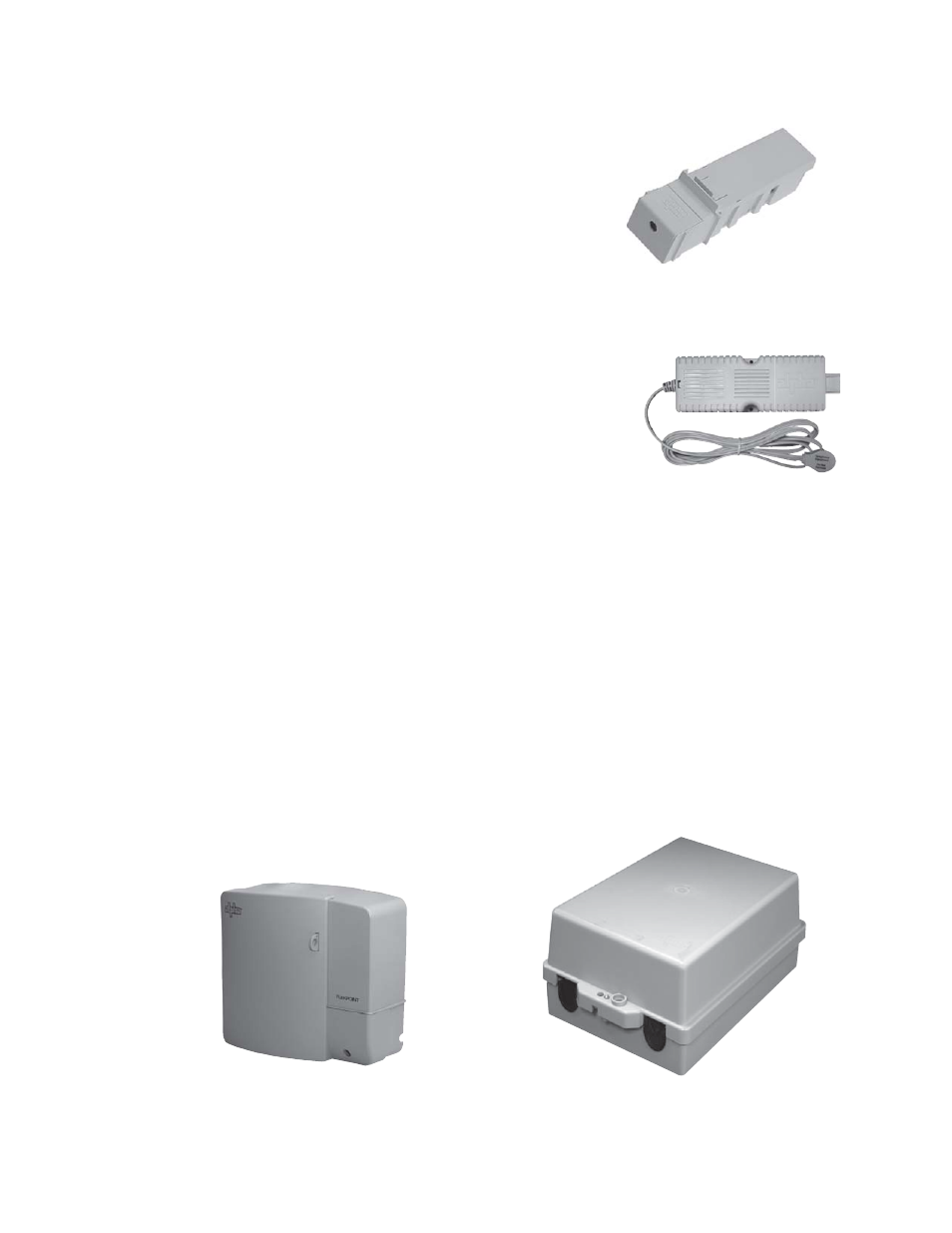

Power-Ring Converter: a modular power converter that slides into the Power-Ring. The
Power-Ring Converter converts 240Vac at the meter to a nominal 12Vdc
which feeds either the outdoor battery module, or when a UPS is not
required, directly to the subscriber’s NID/NIU/ONT.
AX-12D-PC (30 Watts) — P/N 010-318-34
Weight
(lb/kg)
0.7/0.32
Dimensions (in/mm)
8.0"H x 2.0"W x 2.0"D/209H x 51W x 51D
FlexPoint AX
components (indoor installation)
Home Converter: An indoor version of the Power-Ring Converter. It is located inside the subscriber’s home
and plugs into a standard AC utility outlet to convert the AC voltage into a nominal
12Vdc. Low voltage feeds from the Home Converter to an indoor or outdoor
battery module. When the battery module or NID/NIU/ONT is located outside,
a cable passes through an exterior wall to connect this product to the outdoor
battery module or directly to the subscriber’s NID/NIU/ONT.
AX30-12D-HC, 120Vin, 15V, 30W — P/N 010-318-39
CR-AX30-12D-HC, 240VIN, 15V 30W, EU Line Cord — P/N 010-318-33
CR-AX30-12D-HC, 240VIN, 15V 30W, AU Line Cord — P/N 010-318-40
CR-AX30-12D-HC, 240VIN, 15V 30W, BS1363 — PN 010-318-22
Weight
(lb/kg)
0.7/0.32
Dimensions (in/mm)
2.75"H x 8.25"W x 1.5"D/70H x 209W x 38D
Battery Modules: Small plastic clamshell housings for UPS batteries available in two sizes. It is typically
located outdoors on the subscriber's residence. The Battery Module connects to either the Power-Ring
Converter or Home Converter and provides 30 Watts of 12V DC power and alarms to the NID/NIU/ONT.
Battery Backup Power Supply (BBPS) — w/alarms and LED indicators; supports battery to -40°C/-40F
AX-12D-BBPS-7.2 (7.2Ah Battery Backup Power Supply) — 031-264-21
Weight
(lb/kg) 1.5/.68
Dimensions: (in/mm) 8.0"H x 9.0"W x 4.0"D/203 x 230 x 102
AX-12D-BBPS-17 (17Ah Battery Backup Power Supply) — 031-192-31
Weight
(lb/kg) 4.5/2.04
Dimensions: (in/mm) 14"H x 9.5"W x 5.0"D/355 x 241 x 127
