The FlexPoint AX system can be arranged in four basic confi gurations/applications as shown on the following
pages. The cable from the Power-Ring/Home Converter and the Battery Module is a 3-conductor, multi-
conductor cable. The cable from the Battery Module and the NID/NIU/ONT can be a 4-wire to 7-wire cable
(depending on NID/NIU/ONT requirements). Refer to the accompanying Notes for information regarding the
specifi ed cable lengths.

A X 3 0 - 1 2 D - P R C
i n s t a l l e d i n A X -

POWER-RING

NID/NIU/ONT

Indoors to Outdoors

Cable length under 30’

• No

UPS

• Outdoors

Cable length under 30’

• No

UPS

Less than 30' of two wire (+, -) cable

(See NOTE)

AX18-12-HC

Cable through wall

Indoor 120Vac or 230Vac Outlet

2-conductor Line Cord

8' in length

NID/NIU/ONT

NID/NIU/ONT

Use 14AWG (preferred) to 16AWG (minimum) for the cabling between the Home Converter/Power Converter
and NID/NIU/ONT. Use only cable rated for the outdoor environment. The output voltage of the Home
Converter or Power Converter determines the actual cable length.

NOTE:

11 . 6 V d c n o m i n a l

output voltage

11.6Vdc nominal

output voltage

Less than 30' of two wire (+, -) cable

(See NOTE)

2.1

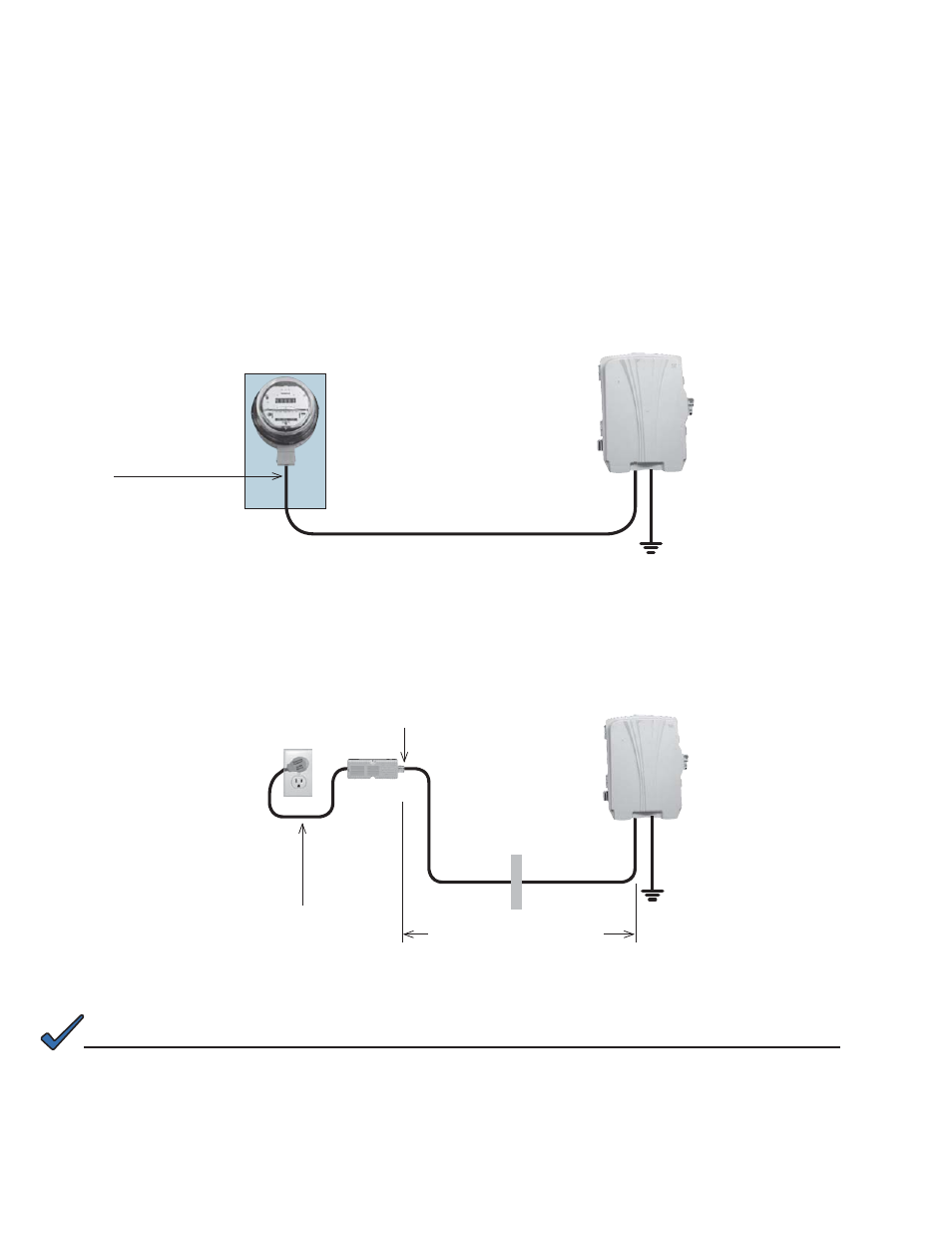

Outdoor Non-UPS Confi guration

2.2

Indoor to Outdoor Non-UPS Confi guration

2. Applications
