23

010-318-C0-007, Rev. G

4. Installation

4.4

Installing the Battery Module, continued

4.4.2 Installing

the

AX-12D-BBPS-7.2

1. Select a location to install the Battery Module.

2. Determine the necessary cable lengths, providing appropriate drip loops between

the HC/PRC, AX, and NIU/NID/ONT.

3. Route the Home Converter/Power Ring Converter cable in from the rear through

either the side or bottom slot, around the strain relief, and up through the larger
access hole. Alpha Technologies offers a 7-conductor ( 2 x 16AWG, 5 x 24AWG)
cable for use with this product.

4. Mount the BBPS horizontally with two customer-supplied #12 x 2" wood or dry-

wall screws. Direct attachment to a stud is required.

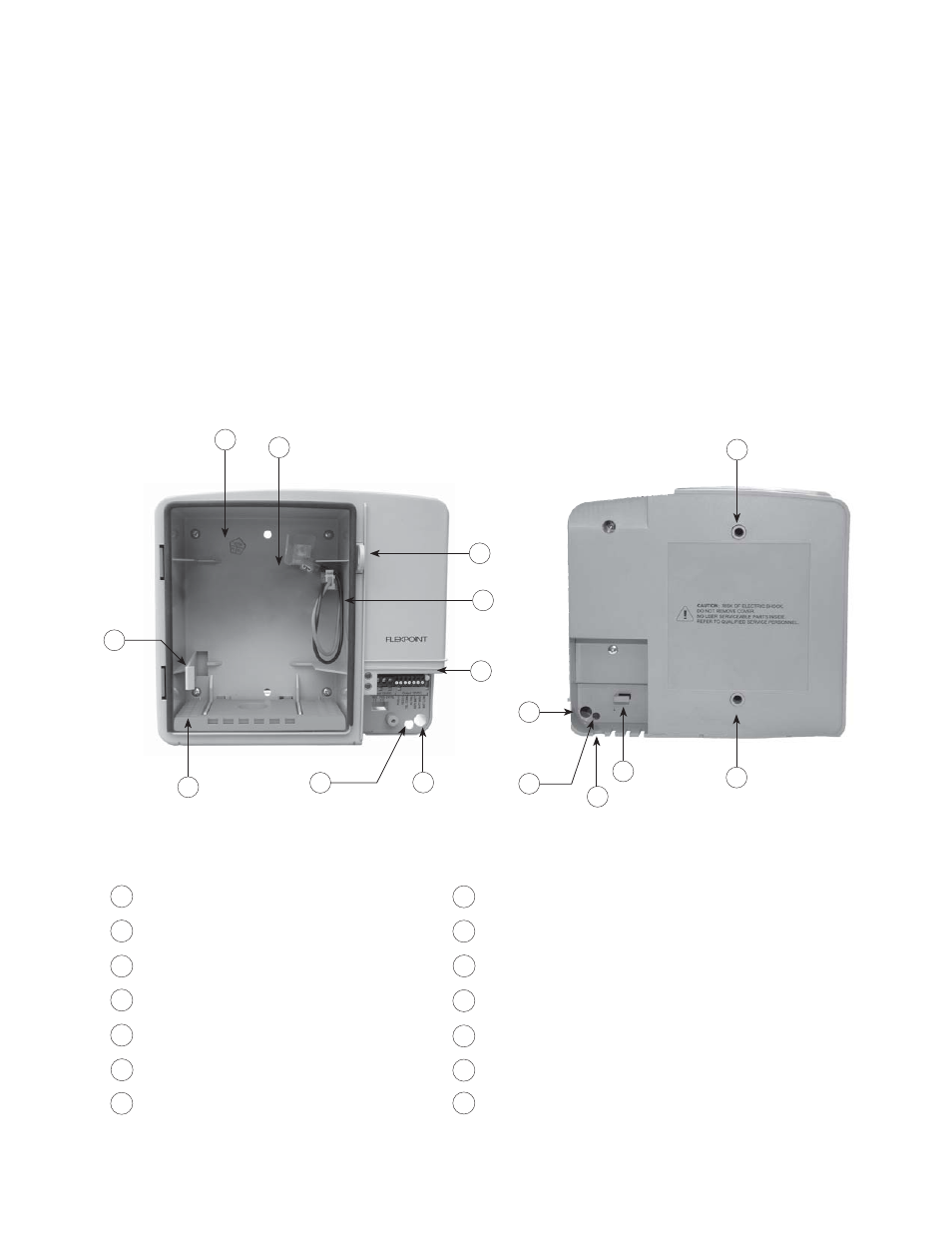

Fig. 4-2, Front and Rear view, AX-12D-BBPS-7.2

1

2

3

4

6

7

8

9

10

10

11

14

13

12

5

1

Battery Compartment

Battery Retaining Strap

Battery Locking Clip

Battery Heater (beneath shelf)

Cable to HC or PRC

Cable to NID/NIU/ONT

Input, Output Connection Points on

Microboard

2

5

3

4

6

7

Battery Wiring Harness (removable)

Tab for Locking Door

Mounting Holes for Customer-supplied # 12 Hardware

Cable to ONT

HC or PRC Cable Entry

Cable

Entry

Strain

Relief

8

9

12

10

11

13

14
