11

010-318-C0-007, Rev. G

FlexPoint AX

components (outdoor installations)

UPS Modules (Microprocessor Modules): 30 Watt UPS Module 12Vdc w/alarms and indicators.

The FlexPoint AX UPS modules are small microprocessor-based battery management systems providing
UPS power to residential and multiple dwelling FTTp optical network terminals (ONT). The UPS modules
are comprised of the same electronics as used in the AX-12D-BBPS products without battery and without
battery heating. They are used with the three wire FlexPoint AX Home Converter (HC) and Power
Converter (PRC).

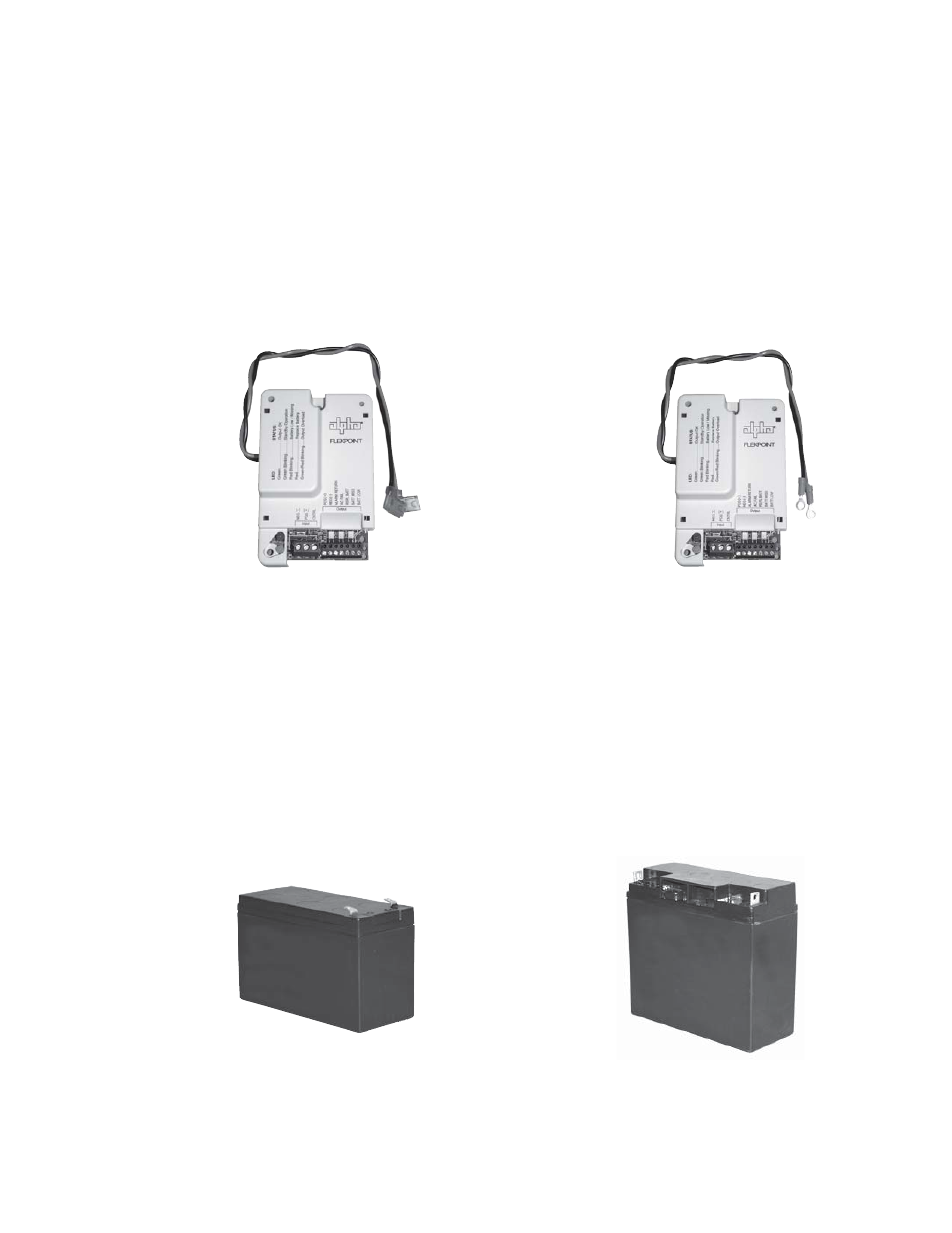

AX-12D-7.2Ah (for 7.2Ah battery) — 745-816-23

AX-12D-17Ah (for 17Ah battery) — 745-816-22

AX-12D-7.2Ah UPS Module

(wire harness terminated with Fast-On connectors)

AX-STDBAT-7

AX-LONGBAT-7

7.2Ah Battery

AX-STDBAT-17

17Ah Battery

AX-12D-17Ah UPS Module

(wire harness terminated with ring lugs)

1. Introduction

Batteries (separately ordered and shipped)

AX-STDBAT-7 — 181-036-10

Weight (lb/kg):

5/2.27 (1-year warranty)

AX-LONGBAT-7 — 181-063-10

Weight (lb/kg):

5/2.27 (3-year warranty)

AX-STDBAT-17 — 181-022-10

Weight (lb/kg):

13/5.9
