English
4.

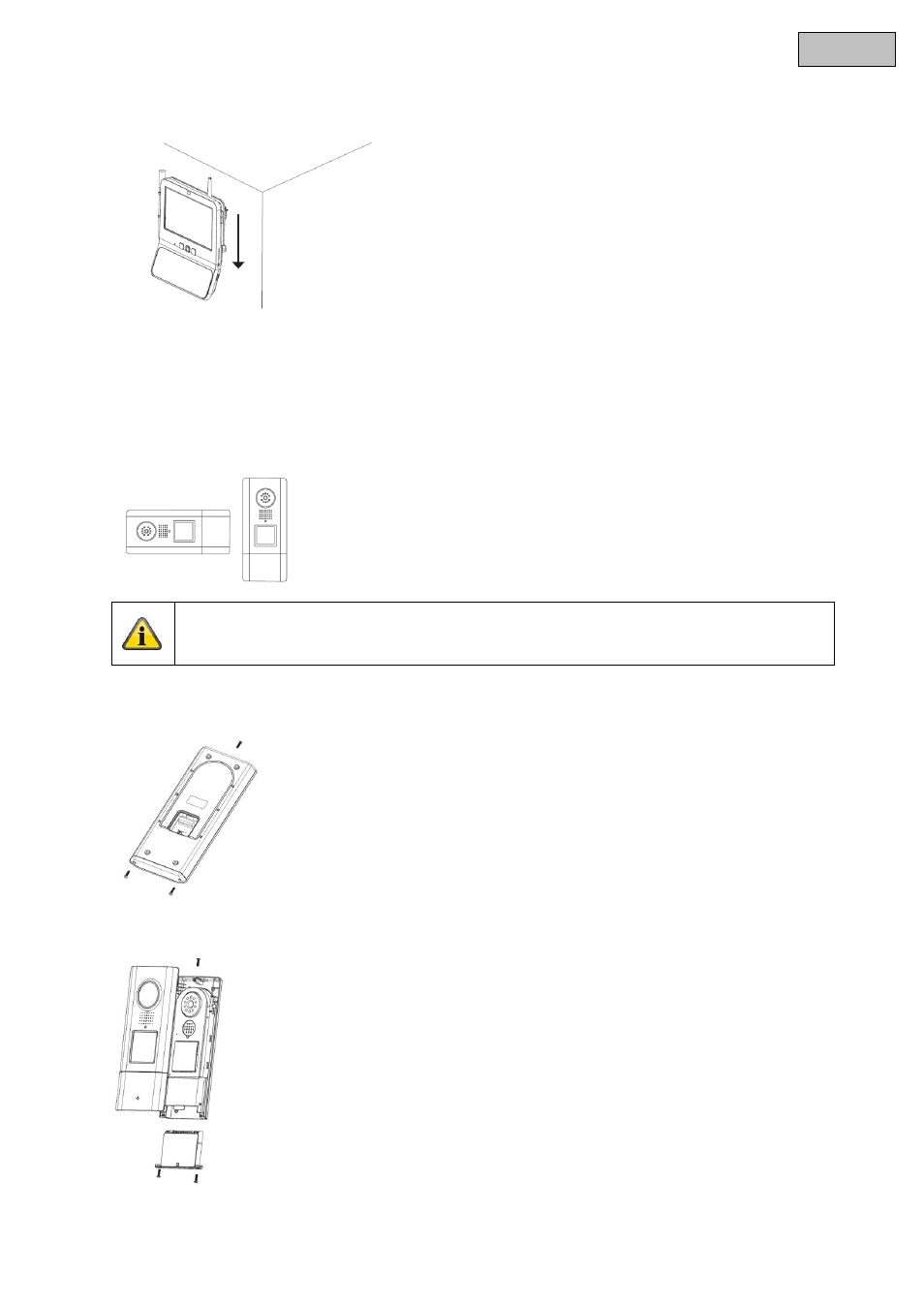

Now place the main unit on the wall mount and connect the included power supply unit.
Ž
6.2 Mounting the Eycasa video door station
The Eycasa video door station can be mounted either horizontally or vertically. The video door station is
designed for use in protected outdoor areas, thanks to its degree of protection of IP54.
Use the included screwdriver to loosen the safety screws above the lens and below the battery
compartment.
If you are operating your video door station with a permanent power supply (bell
transformer), remove the cover of the terminal connector on the rear of the device.
Be sure to reinstall the sealing ring later.
First remove the battery compartment to be able to remove the front cover.
Note:
In case of horizontal installation, in the settings you need to change the orientation of the
video image to 90° to the left or right.
