ProTeam ProGuard 20 - Manual (Page 45)

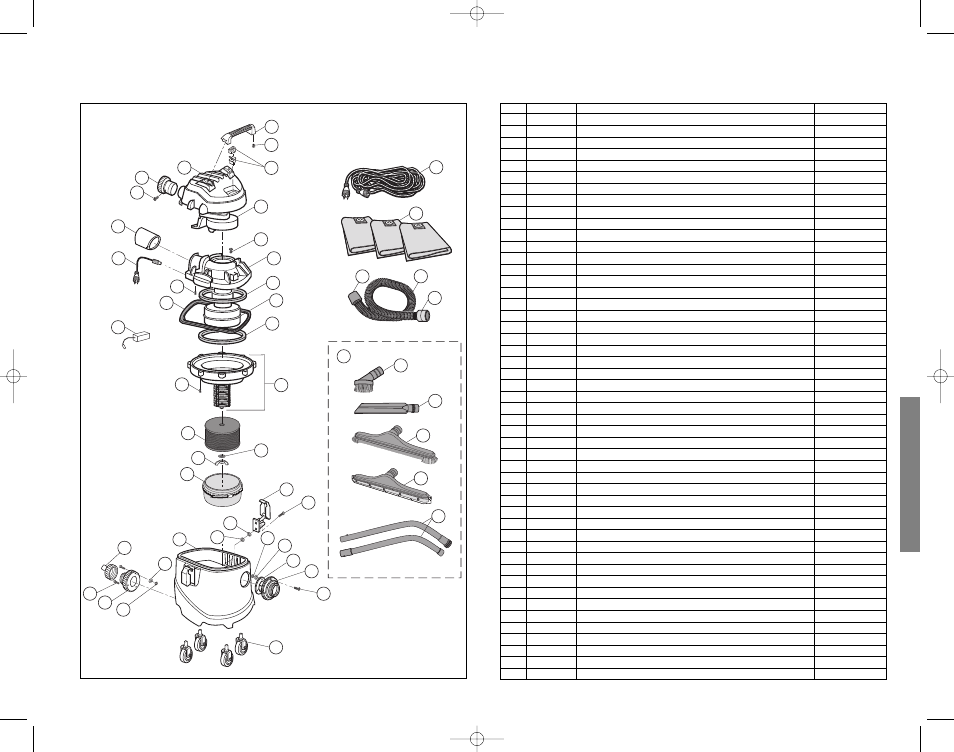

10 Gallon HEPA Wet/Dry Vacuum Assembly
17
26
29
39
47
48
49
41
43
42
38
35
33
36
34
37
27 23
10
15
16
16
14
11
22
20
21
40
45
46
44
32
30
28
31
25
24
4
5
7
1 6
2
12
9
13
19
18
8
3
P
R
O
G
U
A
R
D
10
H
E
P
A
Repair Parts Assembly - HEPA
All items sold as each's unless otherwise identified
NO. 1071830 PRODUCT NAME QTY. USED
1 510126 MOTOR COVER ASSEMBLY 1
2 830565-2 MOTOR COVER HANDLE 1
3 820563-4 SCREW, TYPE AB #10 X 3/4" 2
4 833600 DIFFUSER ASSEMBLY 1
5 820563-4 SCREW, TYPE AB #10 X 3/4" 1
6 510127 SWITCH AND SWITCH COVER (SET) 1
7 831651 MOTOR EXHAUST DUCT ASSEMBLY 1
8 820563-4 SCREW, 10-32 X 3/4" 7
9 830609 FOAM PAD, EXHAUST 1
10 831653-3 LID 1
11 826453-2 SCREW, TYPE AB #10 X 3/4" 5
12 833417 POWER CORD (11.5", 16/3) ASSEMBLY 1
13 822374-8 CARBON BRUSH SET 1
14 831567 MOTOR ASSEMBLY, COMPLETE 1
15 833518 LID GASKET 1
16 827415 MOTOR GASKET 2
17 833576 COLLECTOR ASSEMBLY 1
18 820563-4 SCREW, TYPE AB #10 X 3/4" 8
19 107179 CERTIFIED HEPA FILTER ASSEMBLY (INCLUDES: #22) 1
20 833509 FILTER RUBBERIZED WASHER 1
21 833511 FILTER WING NUT 1
22 833573 MICRO CLOTH PRE-FILTER 1
23 833601 10 GALLON TANK 1
24 833424-1 DRUM LATCH 2
25 833492-1 SCREW, 10-32 X 3/4" 4
26 833493 WASHER #10 4
27 161255-8 LOCK NUT #10 4
28 833425 TANK INLET ADAPTER 1
29 833426 INLET ADAPTER GASKET 1
30 833492 SCREW PAN CROSS SS 1-32 X 1-1/4" 3
31 833493 WASHER #10 3
32 161255-8 LOCK NUT #10 3
33 73185 DRAIN CAP 1
34 833429 DRAIN ADAPTER WITH GASKET 1
35 833492-2 SCREW PAN CROSS SS 1-32 X 1-3/8" 3
36 833493 WASHER #10 3
37 161255-8 LOCK NUT #10 3
38 833431 CASTER 3” 4
39 833432 50' 14-GAUGE TWIST LOCK EXTENSION CORD 1
40 107181 INTERCEPT MICRO® FILTER BAG, 3/PK 1
41 107198 HOSE ASSEMBLY 1
42 831577 SWIVEL HOSE CUFF, 1-1/2" 1
43 833587 LOCKING RING ADAPTER 1
44 107187 ACCESSORY KIT (INCLUDES: 45 - 49) 1
45 100110 DUST BRUSH 1
46 100107PT CREVICE TOOL 1
47 100614 FLOOR BRUSH TOOL 1
48 100143 SQUEEGEE TOOL 1
49 101338 2 PIECE DOUBLE BEND WAND 1
