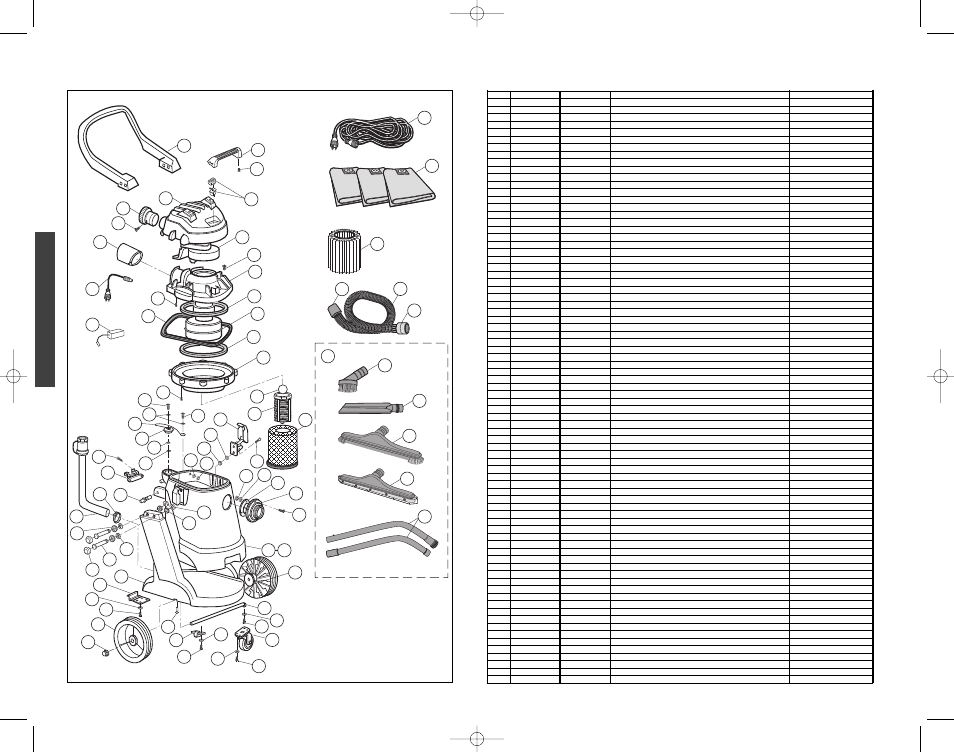

15 & 20 Gallon Wet/Dry Vacuum Assembly
NO. 1071300 1071310 PRODUCT NAME QTY. USED
1 510097 510104 MOTOR COVER ASSEMBLY 1
2 830565-2 830565-2 MOTOR COVER HANDLE 1
3 820563-4 820563-4 SCREW, TYPE AB #10 X 3/4" 2
4 833600 833600 DIFFUSER ASSEMBLY 1
5 820563-4 820563-4 SCREW, TYPE AB #10 X 3/4" 1
6 510127 510127 SWITCH AND COVER (SET) 1
7 831651 831651 MOTOR EXHAUST DUCT ASSEMBLY 1
8 826453-2 826453-2 SCREW, 10-32 X 3/4" 5
9 830609 830609 FOAM PAD, EXHAUST 1
10 831653-3 831653-3 LID 1
11 820563-4 820563-4 SCREW, TYPE AB #10 X 3/4" 7
12 833417 833417 POWER CORD (11.5", 16/3) ASSEMBLY 1
13 822374-8 822374-8 CARBON BRUSH SET 1
14 831567 831567 MOTOR ASSEMBLY, COMPLETE 1
15 833518 833518 LID GASKET 1
16 827415 827415 MOTOR GASKET 2
17 831659 831659 COLLECTOR ASSEMBLY 1
18 820563-4 820563-4 SCREW, TYPE AB #10 X 3/4" 8
19 833778 833778 BALL FLOAT 1
20 830101-1 830101-1 FILTER CAGE 1
21 107177 107177 WET APPLICATION FILTER 1
22 — 833603 20 GALLON TANK 1
23 833602 — 15 GALLON TANK 1
24 833424-1 833424-1 DRUM LATCH 2
25 833492-1 833492-1 SCREW, 10-32 X 3/4" 4
26 833493 833493 WASHER #10 4
27 161255-8 161255-8 NUT LOCK #10 4
28 833425 833425 TANK INLET ADAPTER 1
29 833426 833426 INLET ADAPTER GASKET 1
30 833492 833492 SCREW, 10-32 X 1-1/4" 3
31 833493 833493 WASHER #10 3
32 161255-8 161255-8 LOCK NUT #10 3
33 833451 833451 DRAIN HOSE ASSEMBLY (INCLUDES #35) 1
34 833452 833452 HOSE CLAMP 1
35 826881 826881 HOSE CLIP 1
36 808872-2 808872-2 SCREW, TYPE AB #8 X 3/4" 2
37 833449 833449 POUR SPOUT CAP 1
38 833450 833450 TETHER FOR POUR SPOUT CAP 1
39 833492 833492 SCREW, 10-32 X 1-1/4" 1
40 833492-1 833492-1 SCREW 10-32 X 3/4" 1
41 833493 833493 WASHER #10 4
42 161255-8 161255-8 NUT LOCK #10 2
43 833465 833465 CART HANDLE 1
44 100371 100371 CAP 4
45 832397-1 832397-1 HEX BOLT, 3/8-16 X 3-3/4" 4
46 833779 833779 CAP RETAINER 4
47 805557-1 805557-1 WASHER 13/32 8
48 161255-2 161255-2 LOCK NUT, 3/8-16 4
49 833454 833454 TANK HINGE 2
50 833456 833456 CART 1
51 833459 833459 WHEEL 10" 2
52 833460 833460 WHEEL SPACER 2
53 833662 833662 THUMB SCREW 1
54 831024-3 831024-3 AXLE 1
55 805466-3 805466-3 HEX SCREW, 5/16-18 X 5/8" 2
56 140755-12 140755-12 LOCK WASHER 2
57 833461 833461 AXLE BRACKET 2
58 140755-12 140755-12 LOCK WASHER 4
59 805466-3 805466-3 HEX SCREW, 5/16-18 X 5/8" 4
60 813836-1 813836-1 WASHER CAP NUT 2
61 833462 833462 CASTER 4" 3
62 140755-12 140755-12 LOCK WASHER 6
63 805466-3 805466-3 HEX SCREW, 5/16-18 X 5/8" 6
64 833463 833463 PEDAL LATCH PLATE 1
65 140755-12 140755-12 LOCK WASHER 2
66 805466-3 805466-3 HEX SCREW, 5/16-18 X 5/8" 2
67 833432 833432 50' 14-GAUGE TWIST LOCK EXTENSION CORD 1
68 107180 107180 INTERCEPT FILTER BAG, 3/PK (OPTIONAL) 1
69 107175 107175 QWIK LOCK™ FINE DUST CARTRIDGE FILTER 1
70 107198 107198 HOSE ASSEMBLY 1
71 831577 831577 SWIVEL HOSE CUFF, 1-1/2" 1
72 833587 833587 LOCKING RING ADAPTER 1
73 107187 107187 ACCESSORY KIT (INCLUDES 74 - 78) 1
74 100110 100110 DUST BRUSH 1
75 100107PT 100107PT CREVICE TOOL 1
76 100614 100614 FLOOR BRUSH TOOL 1
77 100143 100143 SQUEEGEE TOOL 1
78 101338 101338 2 PIECE DOUBLE BEND WAND 1
63
68
4
5
43
8
7
1
10
16
14
16
17
15
18
23 22
52
12
67
69
76
77
78
2
11
64
60
54
57 61
25
29
48
35
36
13
51
24
47
50
49
53
58
46
41
56
70
72
71
74
75
73
6
9
21
19
20
32
28
30
31
3
66
65
59
55
62
34
33
47
45
44
37
38
39
42
41
26
27
41
42
40
Repair Parts Assembly
All items sold as each's unless otherwise identified
