ProTeam Owner’s Manual / Manual del usuario de ProTeam / Mode d’emploi ProTeam - 21

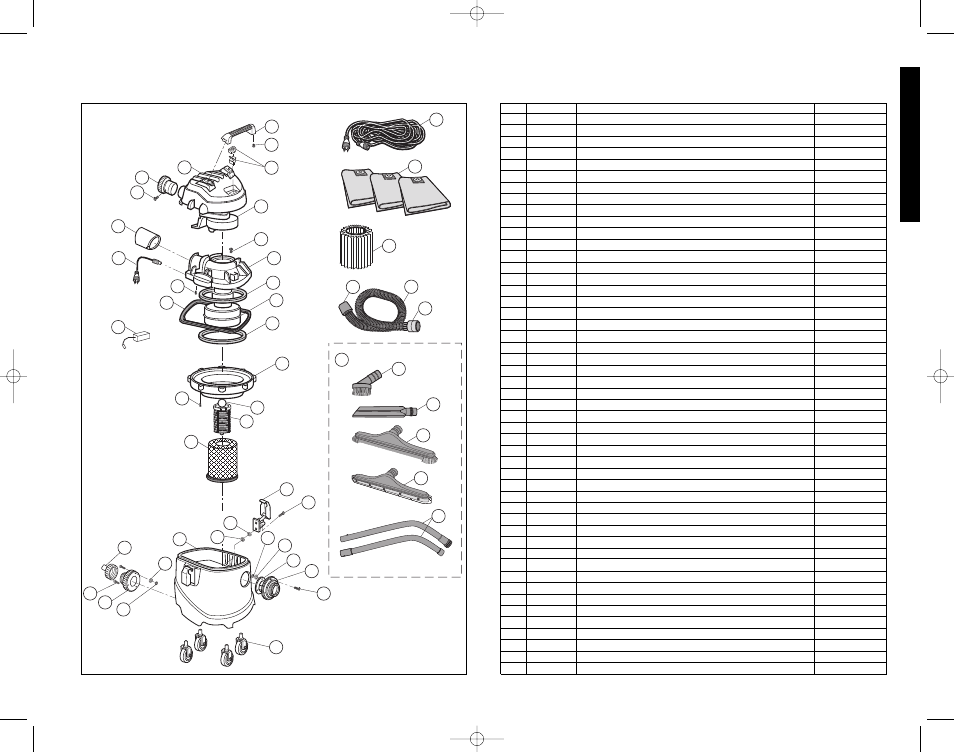

Repair Parts Assembly
All items sold as each's unless otherwise identified
10 Gallon Wet/Dry Vacuum Assembly
NO.
1071290
PRODUCT NAME
QTY. USED
1
510094
MOTOR COVER ASSEMBLY
1
2
830565-2
MOTOR COVER HANDLE
1
3
820563-4
SCREW, TYPE AB #10 X 3/4"
2
4
833600
DIFFUSER ASSEMBLY
1
5
820563-4
SCREW, TYPE AB #10 X 3/4"
1
6
510127
SWITCH AND SWITCH COVER (SET)
1
7
831651
MOTOR EXHAUST DUCT ASSEMBLY
1
8
820563-4
SCREW, 10-32 X 3/4"
7
9
830609
FOAM PAD, EXHAUST
1
10
831653-3
LID
1
11
826453-2
SCREW, TYPE AB #10 X 3/4"
5
12
833417
POWER CORD (11.5", 16/3) ASSEMBLY
1
13
822374-8
CARBON BRUSH SET
1
14
831567
MOTOR ASSEMBLY, COMPLETE
1
15
833518
LID GASKET
1
16
827415
MOTOR GASKET
2
17
831659
COLLECTOR ASSEMBLY
1
18
820563-4
SCREW, TYPE AB #10 X 3/4"
8
19
833778
BALL FLOAT
1
20
830101-1
FILTER CAGE
1
21
107177
FILTER, WET APPLICATION
1
22
833601
10 GALLON TANK
1
23
833424-1
DRUM LATCH
2
24
833492-1
SCREW, 10-32 X 3/4"
4
25
833493
WASHER #10
4
26
161255-8
LOCK NUT #10
4
27
833425
TANK INLET ADAPTER
1
28
833426
INLET ADAPTER GASKET
1
29
833492
SCREW PAN CROSS SS 1-32 X 1-1/4"
3
30
833493
WASHER #10
3
31
161255-8
LOCK NUT #10
3
32
73185
DRAIN CAP
1
33
833429
DRAIN ADAPTER WITH GASKET
1
34
833492-2
SCREW PAN CROSS SS 1-32 X 1-3/8"
3
35
833493
WASHER #10
3
36
161255-8
LOCK NUT #10
3
37
833431
CASTER 3”
4
38
833432
50' 14-GAUGE TWIST LOCK EXTENSION CORD
1
39
107181
INTERCEPT MICRO® FILTER BAG, 3/PK (OPTIONAL)
1
40
107175
QWIK LOCK
™
FINE DUST CARTRIDGE FILTER
1
41
107198
HOSE ASSEMBLY
1
42
831577
SWIVEL HOSE CUFF, 1-1/2"
1
43
833587
LOCKING RING ADAPTER
1
44
107187
ACCESSORY KIT (INCLUDES: 45 - 49)
1
45
100110
DUST BRUSH
1
46
100107PT
CREVICE TOOL
1
47
100614
FLOOR BRUSH TOOL
1
48
100143
SQUEEGEE TOOL
1
49
101338
2 PIECE DOUBLE BEND WAND
1
39
25
28
38
47
48
49
45
46
44
40
37
34
32
35
33
36
26
22
19
17
20
18
21
10
15
16
16
14
13
11
8
31
29
27
30
24
23
4
5
7
1
6
2
3
12
9
41
43
42
