ProTeam TailVac User Manual
Quartervac, Quartervac assembly

16 – ProTeam Owner's Manual / Manual del propietario de ProTeam /
Mode d’emploi ProTeam
21
26
28
27
1
2
3
6c
5
6a
6
6c
9
4
10
10
25
6b
11
8
24
7
12
15
13
14
23
29
19
18
17
16
22
20
No.
Product Name
Qty
1 104273 Twist Cap (Black)
1 ea.
2 100431 Intercept Micro Filter
10/pk
3 100564 Micro Cloth Filter
1 ea.
4 102604 Cord Holder
1 ea.
5 101737 Carry Handle w/Rivet and Washer Set
1 set
6 100356 Shoulder Strap Assembly (includes: #6a, 6b, 6c)
1 set
6a 100358 Shoulder Strap Plastic Adjustment Buckle (Top)
1 ea.
6b 100357 Shoulder Strap Plastic Adjustment Buckle (Bottom)
1 ea.
6c 103627 Sternum Strap Buckles (Latch and Keeper)
1 set
7 105046 Backplate (includes: #8)
1 ea.
8 100375 Barrel Nut Connection Set for Backplate (Replacement)
1 set
9 100716 Backplate (Black) Connection Set: 4 Screws w/Washers
1 set
10 106719 Waist Belt Keeper and Latch
1 ea.
11 100359 Waist Belt (includes: #10)
1 ea.
100354 Strap Assembly Complete (includes: #6, 11)
1 set
103166 Backplate (Black) System Complete (includes: #5, 6, 7, 9, 11)
1 set
12 100641 Power Cord (18" 14/3) Assembly
1 set
13 101714 Switch Cord w/Crimps
1 set
101610 Switch Cord Assembly (includes: #13, 14, 15)
1 ea.
14 101472 Switch Box w/Velcro and New Lamb Switch
1 set
106287 Switch Box w/Velcro and Screws
1 ea.
15 106066 On/Off Switch (must use with 106287)
1 ea.
16 100698 Sound Muffler
1 ea.
17 105044 Motor Shroud/Diffuser w/Screw Set: 2 Screws
1 set
18 100335 Motor Compression Ring w/Screws
1 set
100378 Compression Ring Screws: 4 Screws
1 set
19 100014 Tetraseal
1 ea.
20 105697 Carbon Brush Set (Domel Motor)
1 set
101531 Carbon Brush Set (Ametek Motor) (116309-00)
1 set
106904 Carbon Brush Set (Ametek Motor) (122157-00)
1 set
21 100422 Motor/Fan (120 V) w/Crimps
1 ea.
100379 Motor Ground Wire Clamp Set w/Screws
1 set
100380 Motor Crimp Set: 4 Female, 4 Male, Ground Crimp Connector
1 set
22 100586 Bottom Bumper
1 set
23 100368 Motor Mounting System Set: 3 Well Nuts, 3 Bolts, 3 Washers, 3 Covers
1 set
24 100030 Dome Filter w/Foam Media
1 ea.
25 100343 Foam Filter Media for Dome Filter
1 ea.
101220 High Filtration Disk (optional)
2/pk
26 103048 Static-Dissipating Hose (Black) w/Cuffs 1½"
1 ea.
27 101928 Replacement Double Swivel Elbow Cuff (Black) 1½"
1 ea.
28 100694 Replacement Swivel Cuff (Black) 1½"
1 ea.
29 107294
Thermal Protector Replacement
1 ea.
101678 50' Extension Cord (Not Shown)
1 ea.

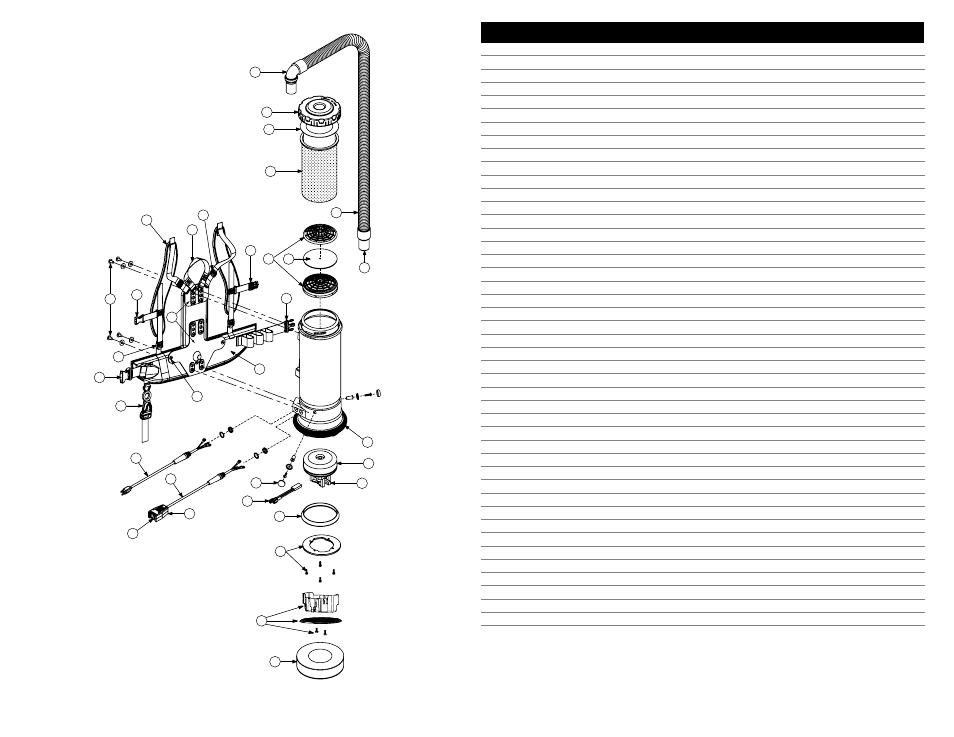

QuarterVac
QUARTERVAC ASSEMBLY
