About the PVT RGB D (EDID)
The PVT RGB D (EDID) is a wall or furniture mountable model that fits any single opening
Decora style wall plate. It can transmit computer (RGB) video and stereo audio to the PVS
switcher, and has an IR pass-though port to a provide control connection for DVD/VCR
players, tuners, switchers, or other IR controllable devices.
COMPUTER IN
AUDIO IN
IR OUT
S G
COMPUTER IN
AUDIO IN
IR OUT
S G
G S
RGB A
OUT
RGB B
OUT
1 2 3 4
ON
5

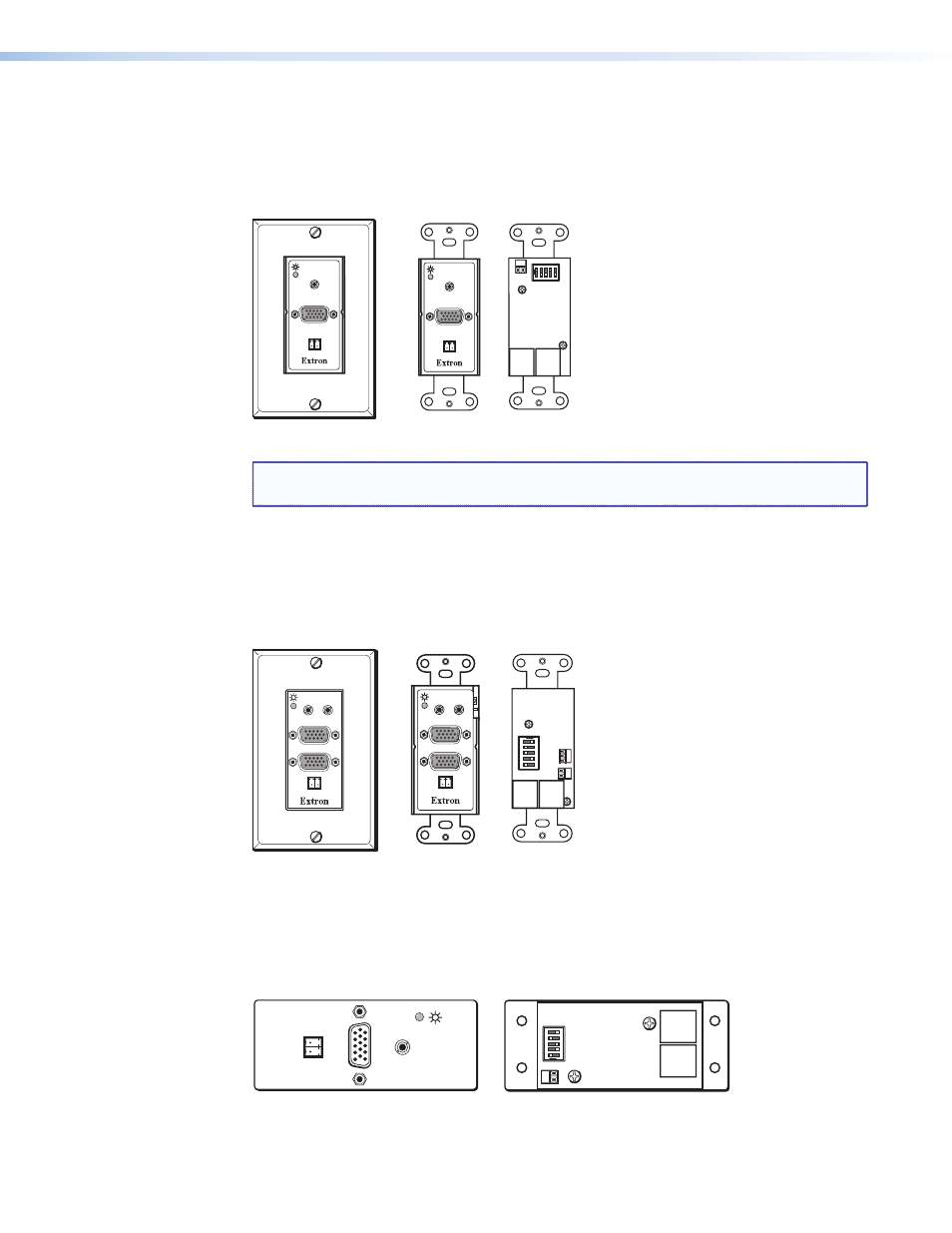

Figure 3. PVT RGB D (EDID) face and rear panels
NOTE: For all PVT RGB Decora and AAP models, two cable runs are required to carry
the video and audio signals to the PVS switcher.
About the PVT RGB D Plus (EDID)
The PVT RGB D Plus (EDID) is a wall or furniture mountable model that fits any single
opening Decora style wall plate. It can transmit computer (RGB) video and stereo audio to
the switcher with a local monitor output and audio output. In addition, a 2-pole IR pass-
through provides control connection for IR devices.
G R L
G S
COMPUTER IN
AUDIO
IN OUT
MONITOR OUT
IR OUT
S G
12
3
4
ON
5
RGB A
OUT
RGB B
OUT
COMPUTER IN
AUDIO
IN OUT
MONITOR OUT
IR OUT
S G
Figure 4. PVT RGB D Plus (EDID) face and rear panels
About the PVT RGB AAP (EDID)
The PVT RGB AAP fits a standard double height AAP opening in a wall plate or a device’s
front or secondary panel. It can transmit computer (RGB) video and stereo audio to the PVS
switcher. In addition, a 2-pole IR pass-through provides control connection for IR devices.
COMPUTER
IN
AUDIO IN
PVT RGB AAP
IR
OUT
S
G
G S
RG
B A
OU
T
RG
B B
OU
T
12
3
4
ON
5
Figure 5. PVT RGB AAP face and rear panels
PVT Series • Introduction 3
