Rear Panel — Features
All models have the output connectors on the rear panel.
PVT CV AAP
PVT CV D
1
2
1

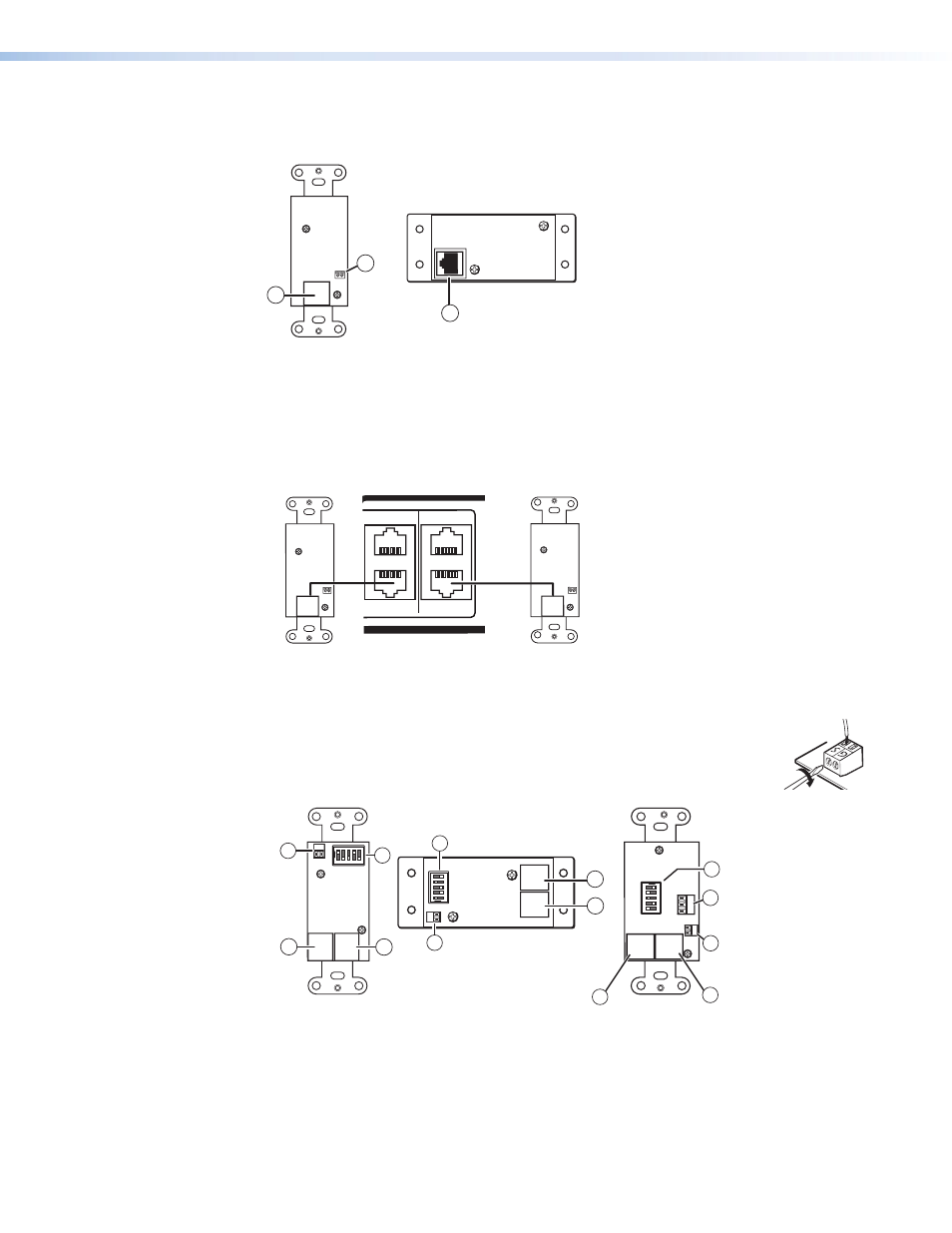

Figure 12. PVT CV models rear panel features
a Composite video output (PVT CV models) — For composite video output, using
CAT 5e or 6 UTP cable, connect this RJ-45 female video output port to one of the two
composite video RJ-45 input connectors (labelled 3 and 4 video), on the rear panel of the
PoleVault switcher.
4B RGB/
VIDEO
4A RGB
PVT CV D
Input #4
Rear Panel
Composite Video Input
Connectors on the
Rear Panel of the PVS Switcher
PVT CV D
Input #3
3B RGB/
VIDEO
3A RGB
Rear Panel
Figure 13. Connecting the PVT CV D to the PoleVault switcher
b IR connector (2-pole) (PVT RGB D, PVT RGB AAP, PVT RGB D Plus
models) — For IR pass-through control, wire this connector from the IR
controller, with ground to “G” and signal to “S”).
G S
RGB A
OUT
RGB B
OUT
3a 3b
PVT RGB D
PVT RGB AAP
G R L
RGB A
OUT
RGB B
OUT
G S
4
2
3b 3a
PVT RGB D PLUS
G S
RG
B A
OU
T
RG
B B
OU
T
2
3b
2
3a
12
3
4
ON
5
5
1 2 3 4
ON
5
12
3
4
ON
5
5
5
Figure 14. PVT RGB models rear panel features
Ñ RGB A output (PVT RGB models) — Using CAT 5e or 6 UTPcable, connect this RJ-45
female output port labelled “RGB A out” to one of the input ports labelled A (for
example, 2A) on the PoleVault switcher.
PVT Series • Connections and Settings 11
