Connections and
Settings
The section discusses the method of cabling and using EDID Minder for the PVT series
wallplates.
This section covers the following:
• Front Panel Features
• Rear Panel (Cabling and Features)
• EDID Minder
• Final Installation
CAUTION: Do not connect these devices to a computer data or telecommunications
network.
Front Panel Features
The front panel features are the same within these groups:
• PVT CV D and PVT CV AAP, and
• PVT RGB D, PVT RGB D Plus, and PVT RGB AAP:
COMPUTER
IN
AUDIO IN
PVT RGB AAP
IR
OUT
S
G
PVT CV D
PVT CV AAP
AUDIO IN
L R VIDEO
IN
PVT CV
1
2
3
PVT RGB D
PVT RGB AAP
5 4
1
AUDIO IN
L R
VIDEO IN
IR OUT
S G
2
1
3
7
COMPUTER IN
AUDIO
IN OUT
MONITOR OUT
IR OUT
S G
8
PVT RGB D PLUS
1
4
5
6
7
7
COMPUTER IN
AUDIO IN
IR OUT
S G
1
4
5
7

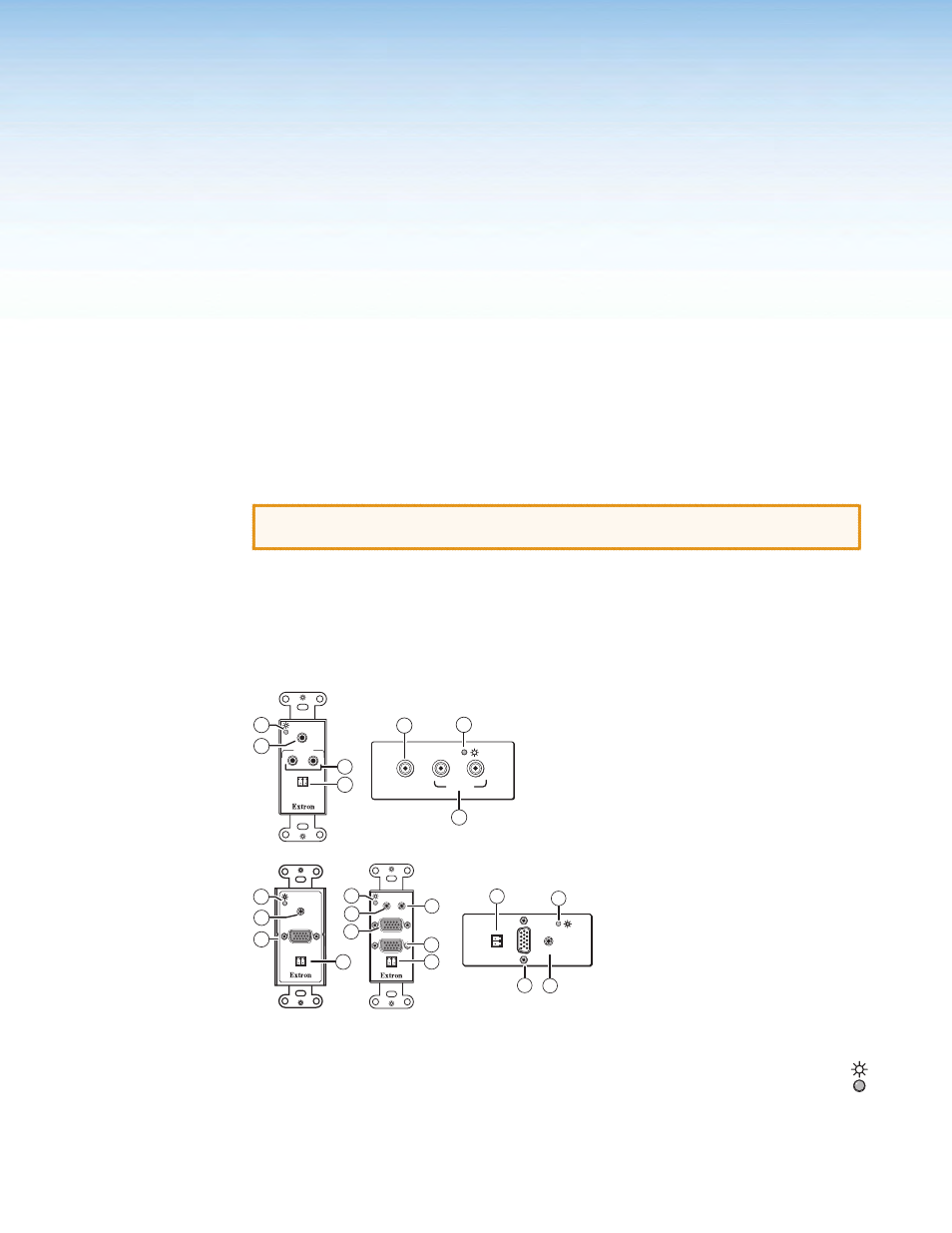

Figure 9. PVT series front panel features
a Dual color power LED (all models) — This LED lights red when power only
(no signal) is applied to the PVT, and green when power and signal are both present.
