Extron RGB 302/304 Universal Interface • User’s Manual
Page 4-2
Chapter 4 • Using the Windows® Control Program
4. Installation of the software creates a Program Group
(Windows 3.1) or a Folder (Windows 95®) called
“Extron Electronics”. Icons for the Control Program
and the Help Program are installed in that group or
folder. The Window in the above illustration shows
an Extron Program Group.
5. Double-click on the RGB 302/304 Control Program
icon to start the program. You will be asked to select
the Comm Port. After selecting the Comm Port, the
software looks for the RGB 302/304, “reads” its
configuration, and then displays it in a window called
“Extron’s RGB 302/304 Interface Control Program”.
Normal Windows Control Panel

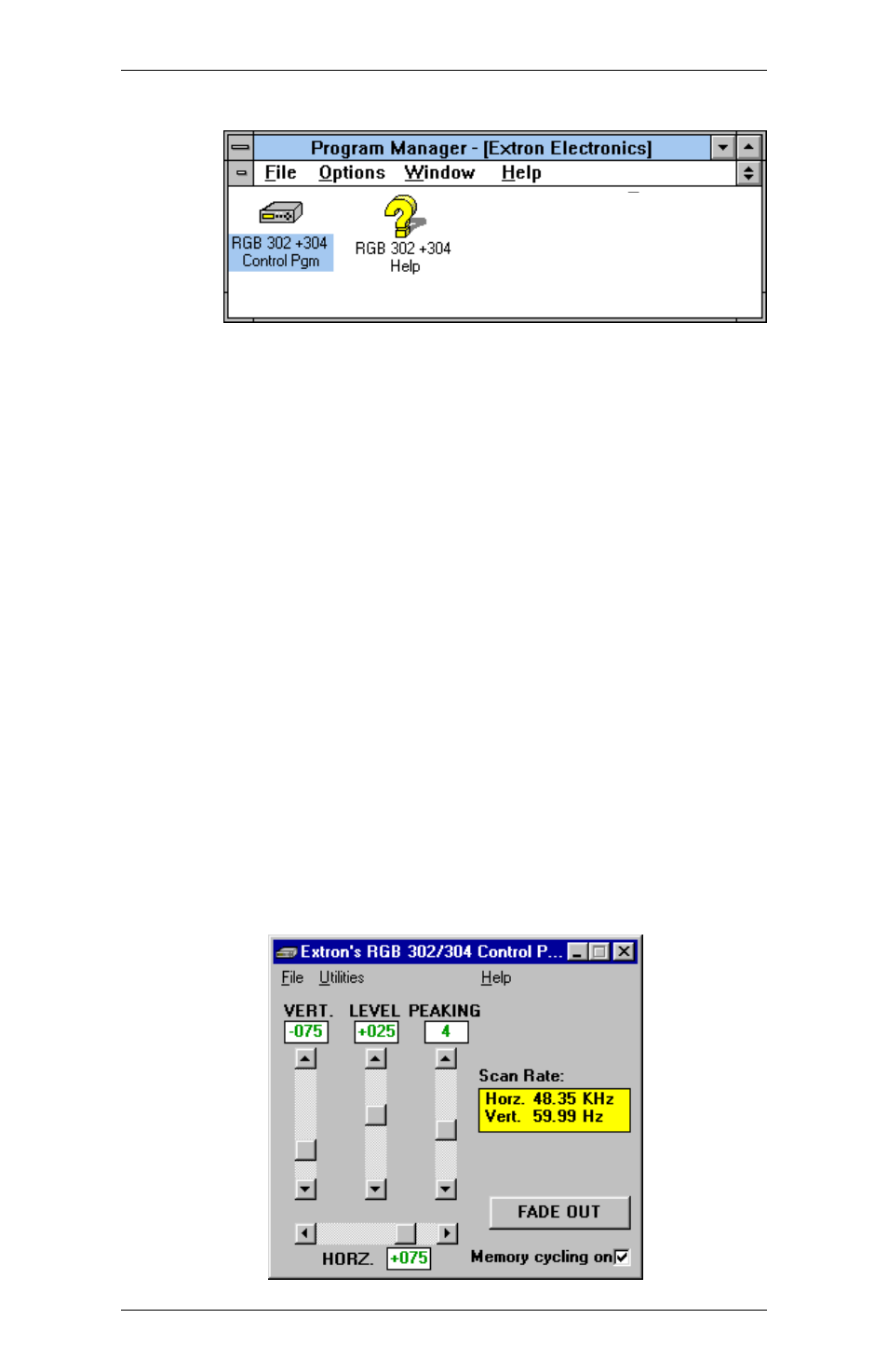

The following illustration shows an example of the
normal Windows control panel. Among the convenient
image adjusting features are controls for:
• Vertical Shifting
• Horizontal Shifting
• Level adjustment
• Peaking adjustment
• Scan rate (display only)
