Extron RGB 302/304 Universal Interface • User’s Manual
Page 4-1
Chapter 4 • Using the Windows® Control Program
Installing Windows® Control Software
This chapter is dedicated to using Extron’s “Windows
Control Program for RGB 302/304 via RS-232”
software. Extron supplies this software that runs in the
Windows® operating system, version 3.1 or later.

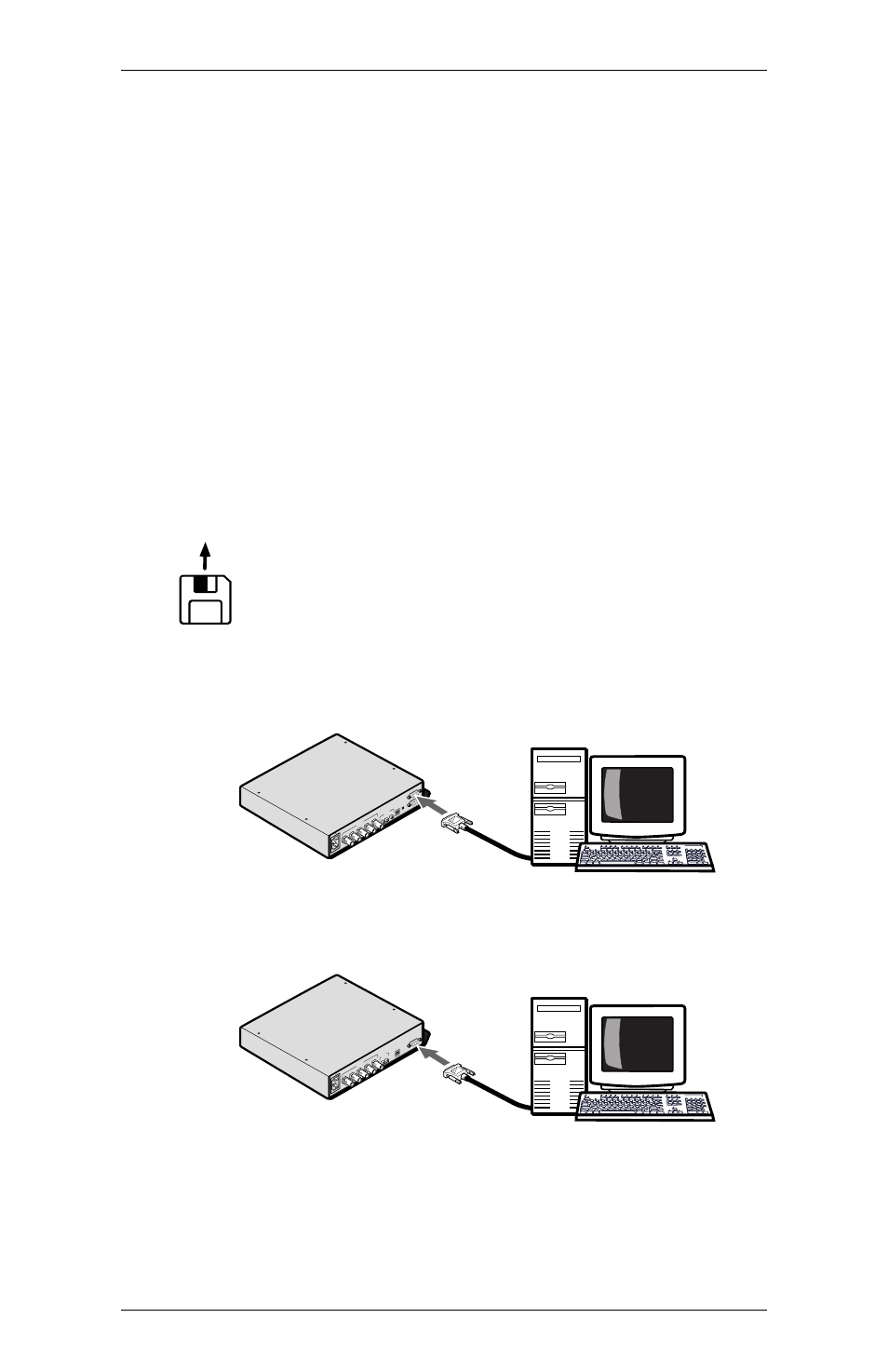

Communication between the computer software and
the RGB 302/304 is established after connecting the
computer to the RS-232 Port on the rear panel of the
RGB 302/304 (see diagrams below).
1. Connect the PC’s Comm port to the RS-232
connector on the back of the RGB 302/304.
2. Power up the RGB 302/304, the PC, and load
Windows.
3. To install the software from the 3.5” floppy disk onto
the hard disk, run SETUP.EXE from the floppy disk.
(It’s just like any other Windows application.)
___ The floppy disk has instructions printed on the label.
The software can be run from the floppy drive or loaded
onto the hard drive.
OUTPUT
R
50/60 H
z
100-240V
0.5A
G
B
H/HV
V
L
R
OU
T
IN
MB
C
PO
WE
R
RS
-232
AN
ALO
G/EC
L
INPU
T
AUDIO
LCD SYNC
SER REM
75 OHM
RGB 302
OUTPUT
R
50/60 H
z
100-240V
0.5A
G
B
H/HV
V
L
R
OU
T
RS
-232
AUDIO
LCD SYNC
SER REM
75 OHM
RGB 304
