Extron RGB 302/304 Universal Interface • User’s Manual Page 2-1
Chapter 2 • Installing the RGB 302/304

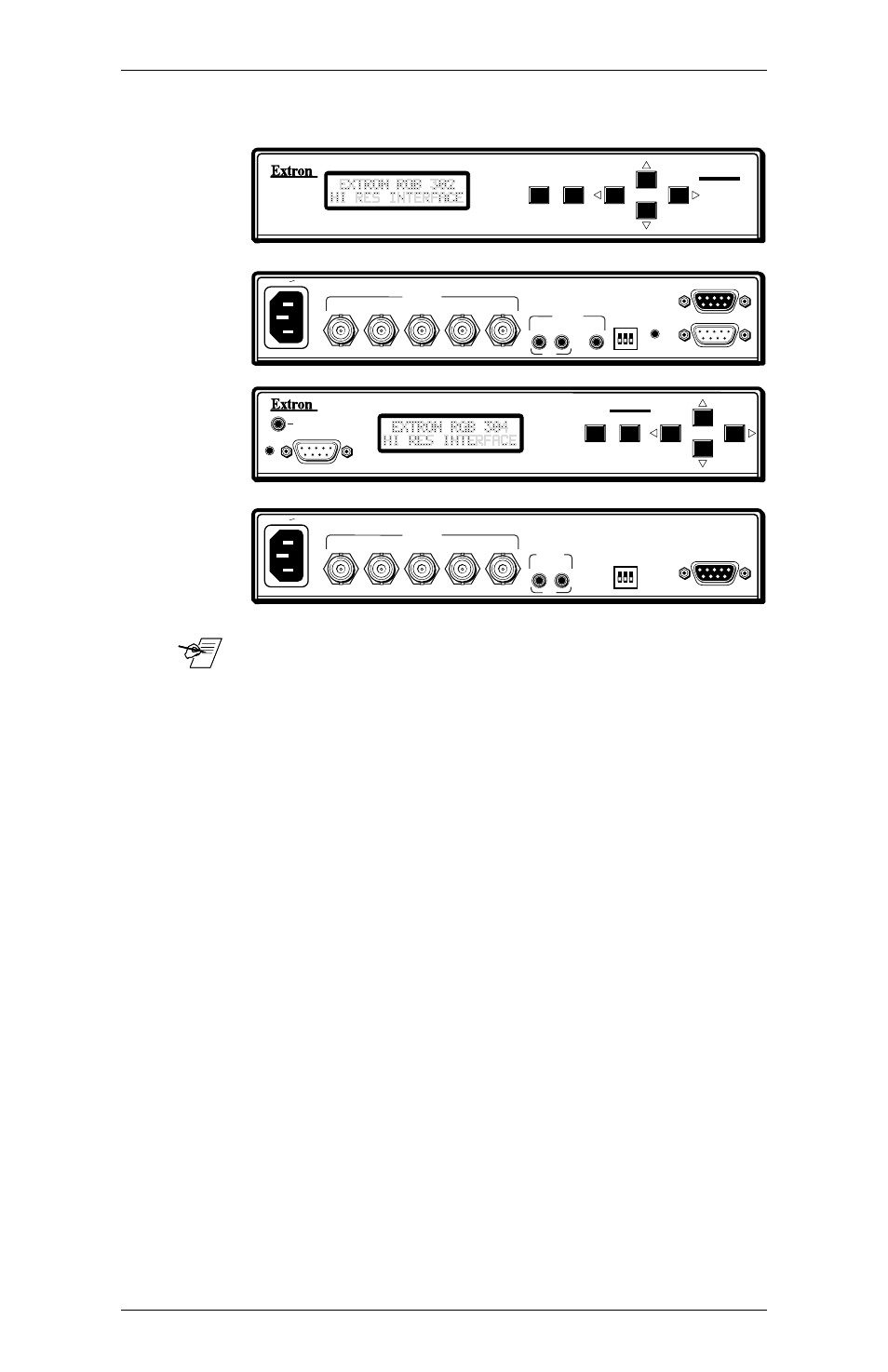

____ The diagrams above show the front and rear panels of
the RGB 302 (top pair) and RGB 304 (bottom pair).
Easy Setup Procedure
These easy-to-follow steps describe the general setup
of the RGB 302/304. Refer to the example
Application
Diagrams at the end of this chapter.
1. Turn the computer and monitor power Off.
Do not connect the RGB 302/304 power cable yet
(there is no power switch).
2. Disconnect and remove the computer’s local monitor
video cable from the computer video port.
3. Connect BNC output cables from the RGB 302/304
to the data monitor/projector — all BNC outputs are
RGB analog. The BNC connectors are marked R, B,
G, H/V and V. They may be connected in any of
three ways:
• Red, Green/sync and Blue, for RGB with sync on
Green. (3-cable hookup)
• Red, Green, Blue and H/HV, for RGB with Composite
sync signals. (4-cable hookup)
• Red, Green, Blue, H/HV and V, for RGB with separate
Horizontal and Vertical sync signals. (5-cable hookup)
MENU NEXT
RGB 304
OUTPUT
R
50/60 Hz
100-240V 0.5A
G B H/HV V
L R
OUT
MBC
POWER
RS-232
ANALOG/ECL
AUDIO IN
AUDIO
DDSP SER REM 75 OHM
INPUT
MENU NEXT
RGB 302
OUTPUT
R
50/60 Hz
100-240V 0.5A
G B H/HV V
L R
OUT IN
MBC
POWER
RS-232
ANALOG/ECL
INPUT
AUDIO
DDSP SER REM 75 OHM
