Extron RGB 302/304 Universal Interface • User’s Manual
Page 2-7
Chapter 2 • Installing the RGB 302/304

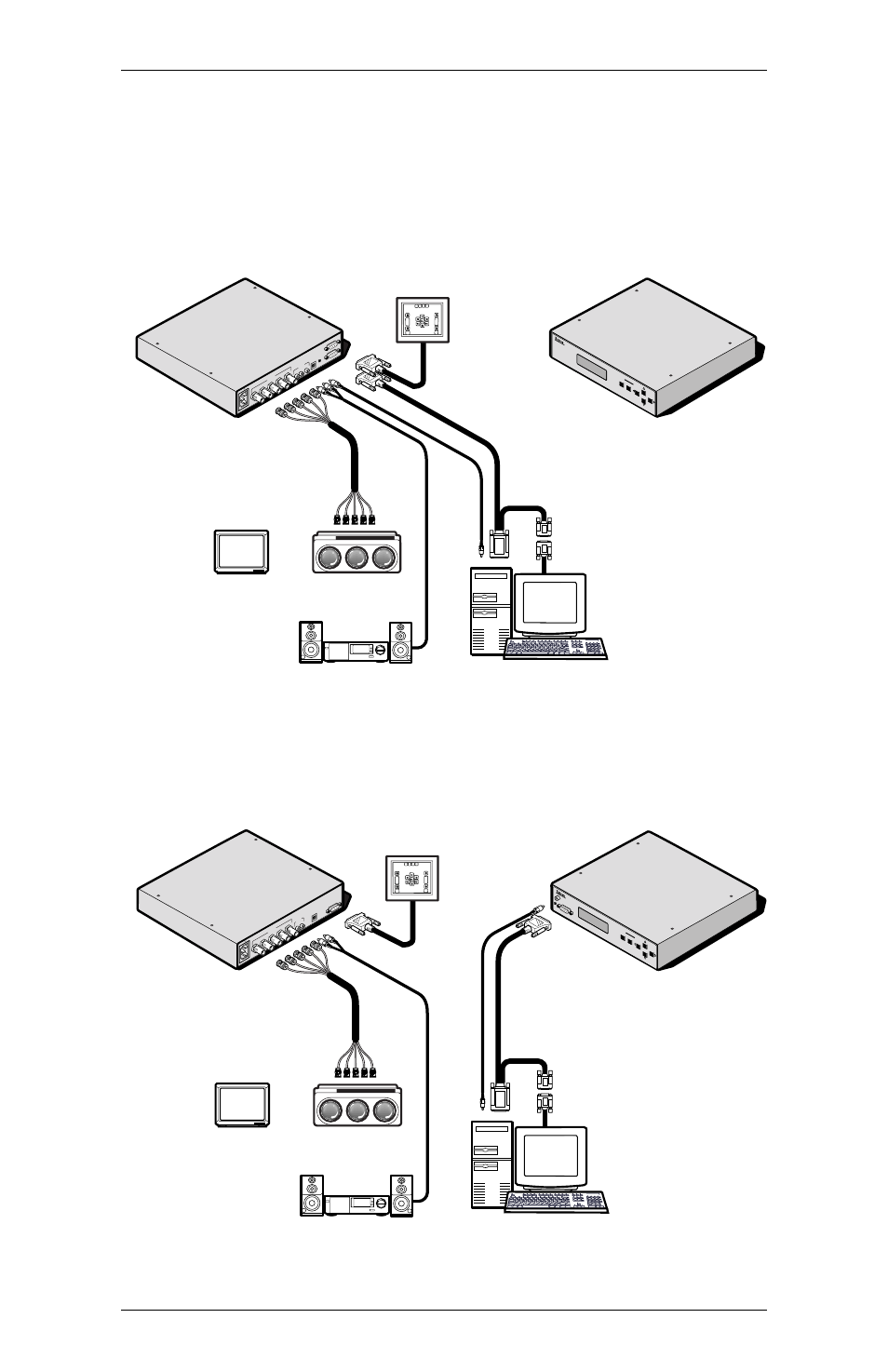

Application Diagrams
The diagrams below show possible application setups
for the RGB 302 and RGB 304.
MENU
NEXT
RGB 302
OUTPUT
R
50/60 Hz
100-240V 0.5A
G
B
H/HV
V
L
R
OUT
IN
MBC
PO
WER
RS-232
ANALO
G/ECL
INPUT
AUDIO
LCD SYNC
SER REM
75 OHM
Audio
Power PC, Macintosh
or WorkStation
Local
Monitor
MBC Cable
BNC 4 or 5
HR Cable
Data Monitor
Large-Screen
Data Projector
OR
Output
RGB 302
Audio Amplifier
RS-232
Control Cable
Control
System
Rear
Front
MENU
NEXT
MBC
PO
WER
ANALOG/ECL
AUDIO IN
INPUT
RGB 304
OUTPUT
R
50/60 Hz
100-240V 0.5A
G
B
H/HV
V
L
R
OUT
RS-232
AUDIO
LCD SYNC
SER REM
75 OHM
Audio
Power PC, Macintosh
or WorkStation
Local
Monitor
MBC Cable
BNC 4 or 5
HR Cable
RS-232
Control Cable
Data Monitor
Large-Screen
Data Projector
Control
System
OR
Output
RGB 304
Rear
Front
Audio Amplifier
