Caution – Extron Electronics TLP 710CV User Guide User Manual
Page 46

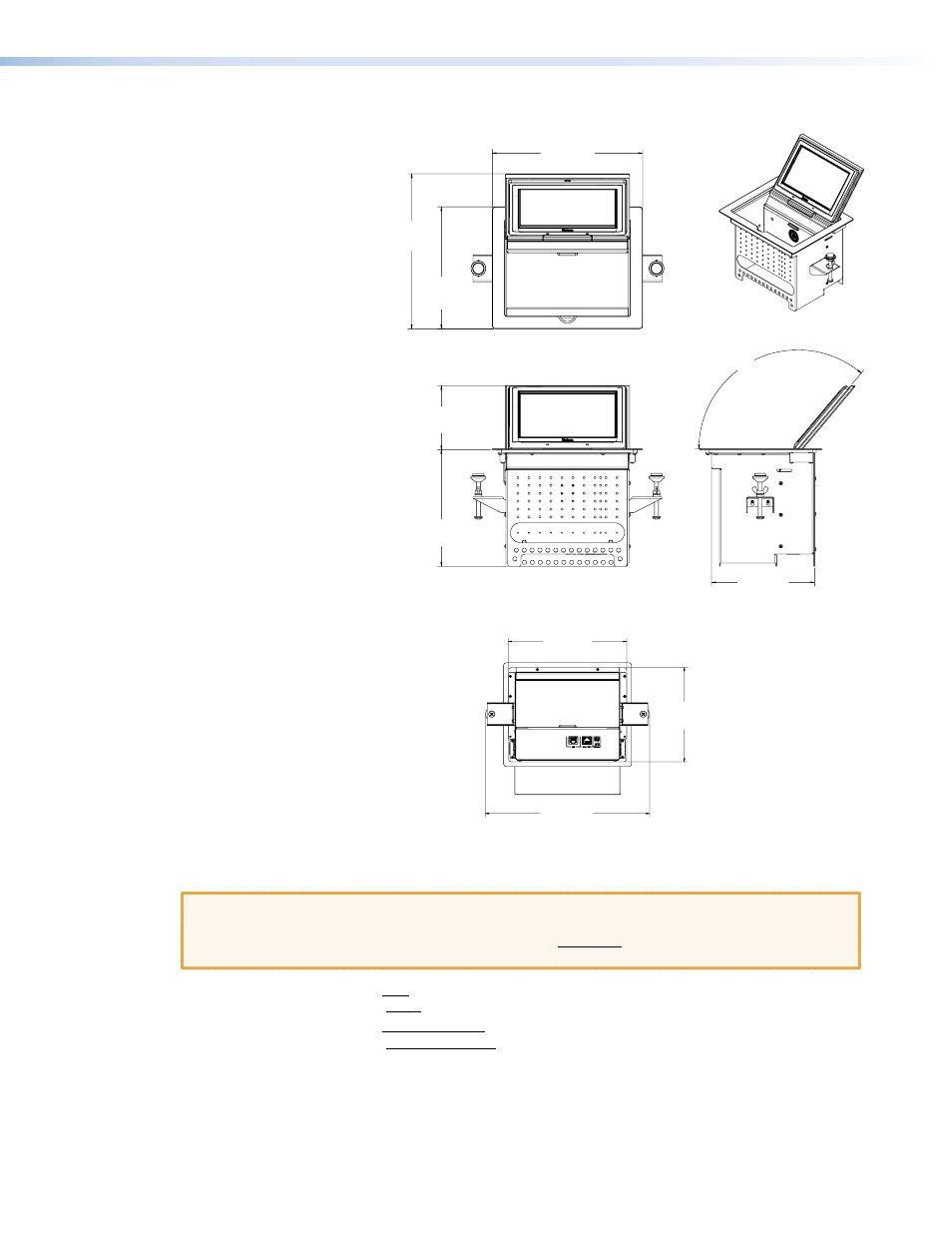

Dimensions diagram examples
9.55"
(242.6 mm)
9.85"
(250.1 mm)
7.75"
(196.9 mm)
4.08"
(103.7 mm)
7.40"
(187.9 mm)
8.84"
(224.5 mm)
7.04"
(178.8 mm)
12.27"
(311.5 mm)
6.56"
(166.6 mm)
FRONT VIEW
BOTTOM VIEW
TOP VIEW
SIDE VIEW
130°
Enclosure dimensions
CAUTION:
Use the appropriate metal Extron routing template or refer to the surface cutout dimensions here
before cutting a hole in the furniture or other surface. Pay special attention to the direction the
unit will face; the unit's connector access side is underlined. Extron is not responsible for miscut
mounting holes.
Top plate (outer rim) ................ 9.55" W x 7.75" D
(24.26 cm W x 19.69 cm D)
Surface cutout (inside rim) ....... 8.90 +0.00/-0.02" W x 7.10 +0.00/-0.02" D
(22.61 +0.00/-0.05 cm W x 18.03 +0.00/-0.05 cm D)
Box (under surface) .................. 7.40" H x 12.27" W (front/rear of unit) x 6.56" D with clamps
(18.79 cm H x 31.15 cm W x 16.66 cm D with clamps
TLP 710CV • TLP 710CV • Specifications
