3.
Depending on which option was selected in step 2, GUI Configurator opens to a new or
existing project. The initial screen is divided into a series of panes offering a range of tools
that can be used to design or modify the project. For full details on how to use these tools,
consult the help file (in the
Help
menu click
Contents
, or press the
the program).

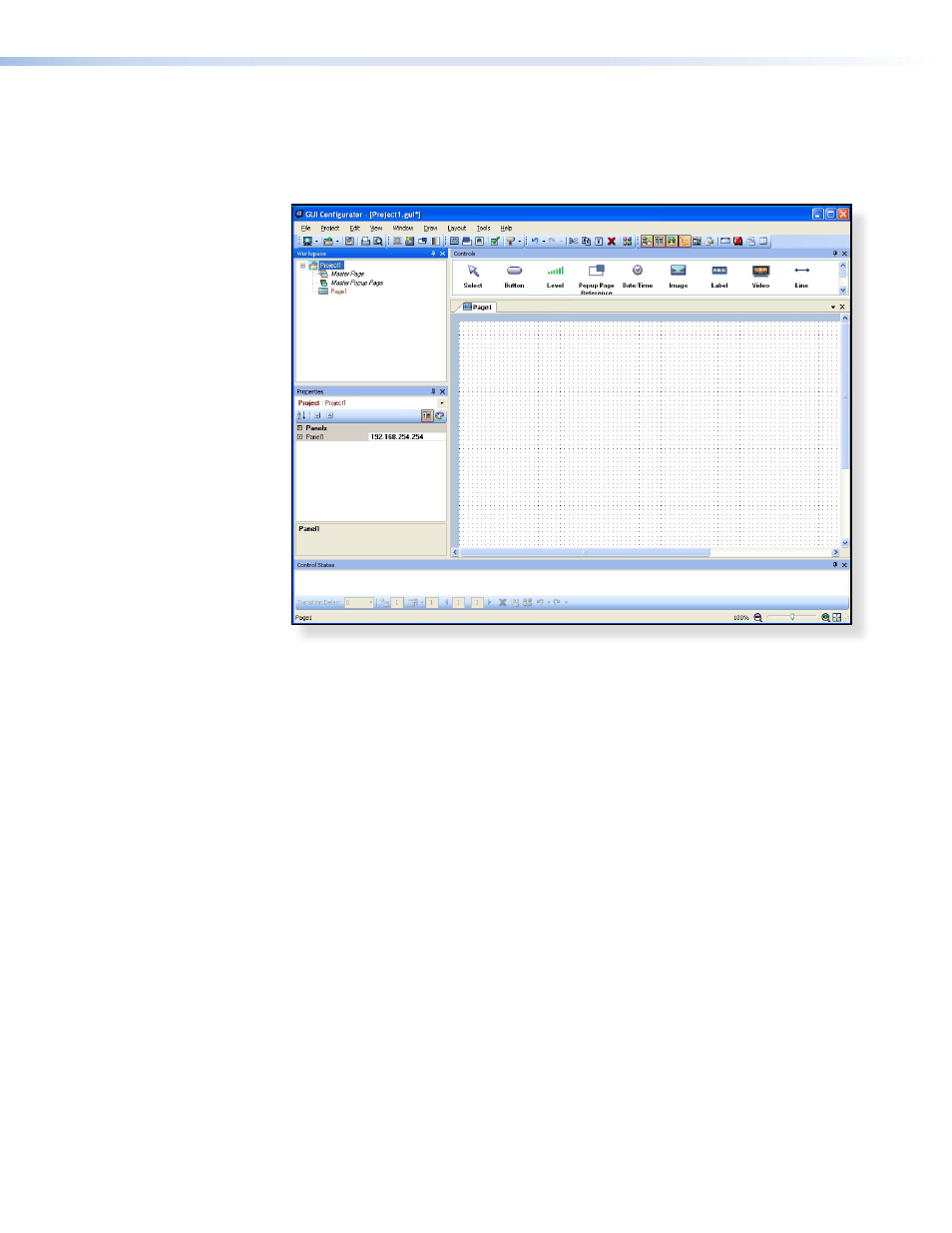

Figure 29.
GUI Configurator Main Screen
4.
To save the project, select
Save Project
from the
File
menu. The project file is saved. If
this is the first time saving the project file, the Save As dialog box appears. If the Save As
dialog box appears:
a.
Browse for the location where the project file is to be saved.
b.
Enter a file name for the project.
c.
Click
Save
.
TLP 710CV • Configuration Software
31
