Extron Electronics TLP 710CV User Guide User Manual
Page 40
2.
Select
Create A New Project
and click
OK
. The dialog box closes, leaving the Project
Settings screen.

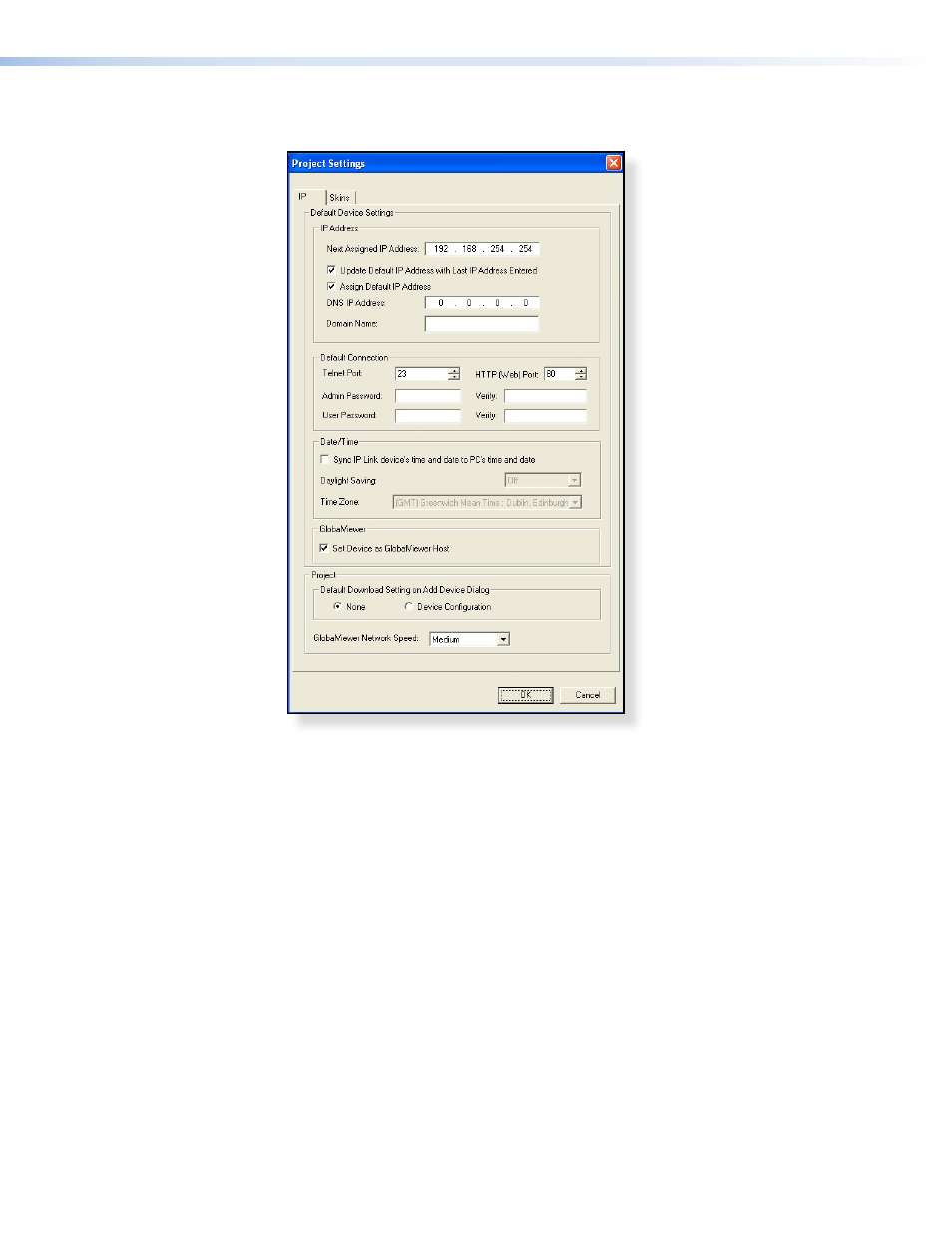

Figure 33.
Global Configurator Project Settings
3.
To configure the Project Settings:
a.
Enter the IP address for the IP Link controller.
b.
Set the Telnet and HTTP ports. Usually, the Telnet connection is port 23 and HTTP is
port 80, so the default values do not need to be changed.
c.
If necessary, set administrator and user passwords.
d.
If required, set the date and time.
e.
Checking the
Set Device as GlobalViewer Host
box is optional. For more
information about GlobalViewer host, see the Global Configurator help file.
TLP 710CV • Configuration Software
34
