Power Connector
Connect the two pole, 3.5 mm captive screw connector from the 12 VDC, 1.0 A power supply
(not provided) to the power supply socket on the rear panel. Ensure the connections have the
correct polarity as shown below.
NOTES: • Extron recommends using the Power over Ethernet power supply. This 12 VDC,
1.0 A power supply should only be used for setup or troubleshooting.
• If both power supplies are connected to the TLP 710CV, the PoE power supply
takes precedence.
Power Receptacle
DC Power Cord
Captive Screw Connector
AC Power Cord
Ground
+12 VDC
External
Power Supply
(12 VDC, 1 A )
SECTION A–A
Ridges Smooth
Power Supply
Output Cord
A A
-
3/16"
(5 mm) Max.
-
POWER
12V
-- A MAX
POWER
12V
-- A MAX
-

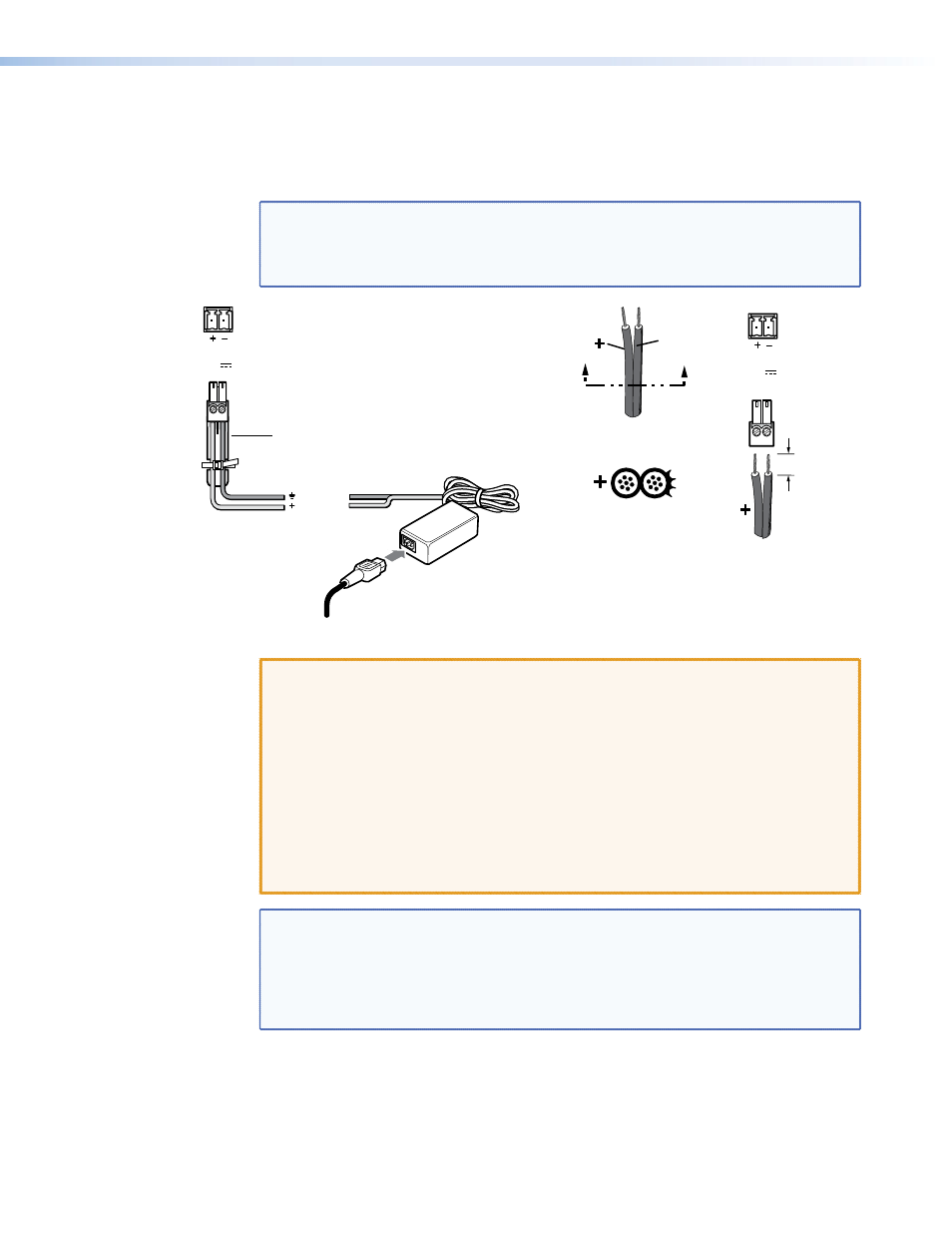

Figure 10. Power Supply Connection
CAUTIONS: • Always use a power supply supplied by or specified by Extron. Use of an
unauthorized power supply voids all regulatory compliance certification
and may cause damage to the supply and the end product.
• Unless otherwise stated, the AC/DC adapters are not suitable for use in
air handling spaces or in wall cavities. The power supply is to be located
within the same vicinity as the Extron AV processing equipment in an
ordinary location, Pollution Degree 2, secured to the equipment rack within
the dedicated closet, podium or desk.
• The installation must always be in accordance with the applicable
provisions of National Electrical Code ANSI/NFPA 70, article 75 and the
Canadian Electrical Code part 1, section 16. The power supply shall not be
permanently fixed to building structure or similar structure.
NOTES: • The length of the exposed wires in the stripping process is critical. The ideal
length is 3/16 inches (5 mm). Any longer and the exposed wires may touch,
causing a short circuit between them. Any shorter and the wires can be easily
pulled out even if tightly fastened by the captive screws.
• Do not tin the wires. Tinned wire does not hold its shape and can become loose
over time.
TLP 710CV • Touchpanel Features and Connectors 16
