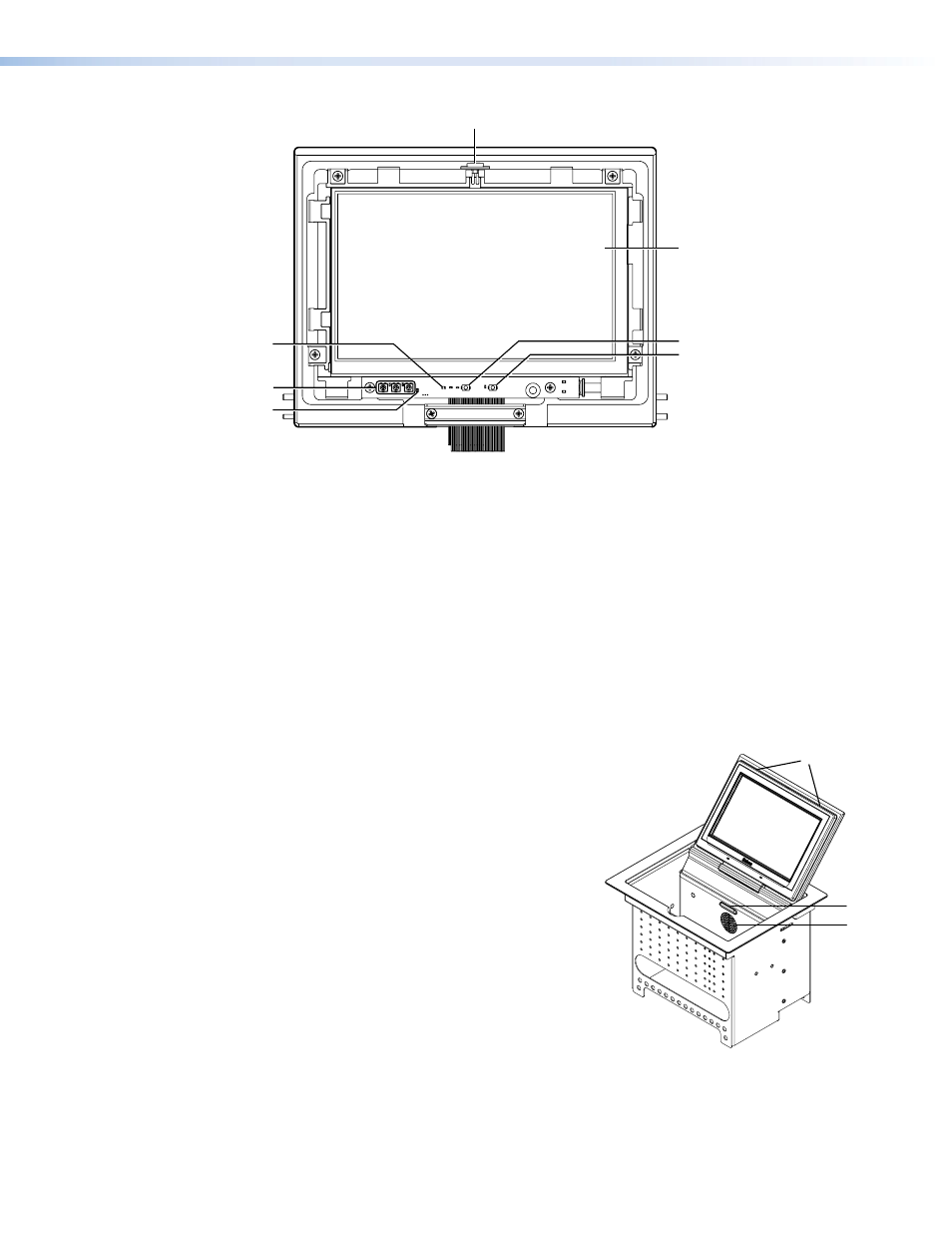

Figure 7. TLP 710CV Front Panel with Bezel Removed
a
Light Sensor — mounted on top of the screen. The sensor monitors the level of ambient
light and adjusts the screen brightness.
b
LCD screen — has a 800x480 resolution with a touch overlay. Extron software is used to
design and configure a graphic user interface to display buttons, text, or icons, which have
user-defined functions associated with them.
c
Three MTP Signal Adjustments — available for S-video luminance gain (VID/Y), S-video
chrominance gain (C), and sharpness (S). For composite video signals, the gain is controlled
by the VID/Y adjustment.
d
Reset LED — provides feedback about the reset status when the user presses the reset
button (see “ Reset Modes ” on page 43).
e
Controller Communication LED — unlit during normal operation. Blinks red if the
connection to the IP Link controller is lost.
f
Reset Button — allows the unit to be reset in
any of four different modes (see “Reset Modes”
on page 43).
g
Menu Button — activates the on-screen menus
for calibrating the unit (see “Initial Calibration”
on page 18).
h
Loudspeaker — provides audible feedback (see
the figure to the right).
i
Slots — insert Extron removal tool to separate the
bezel from the screen.
j
Illumination LED — lights the interior of the
cable cubby compartment.
h
i
j
TLP 710CV • Touchpanel Features and Connectors 13
