5. Click the Touchpanel tab, which allows the user to alter the touchpanel and volume
settings. These correspond to the Main settings (see page 18) and Volume settings (see
page 19) in the on-screen menus.

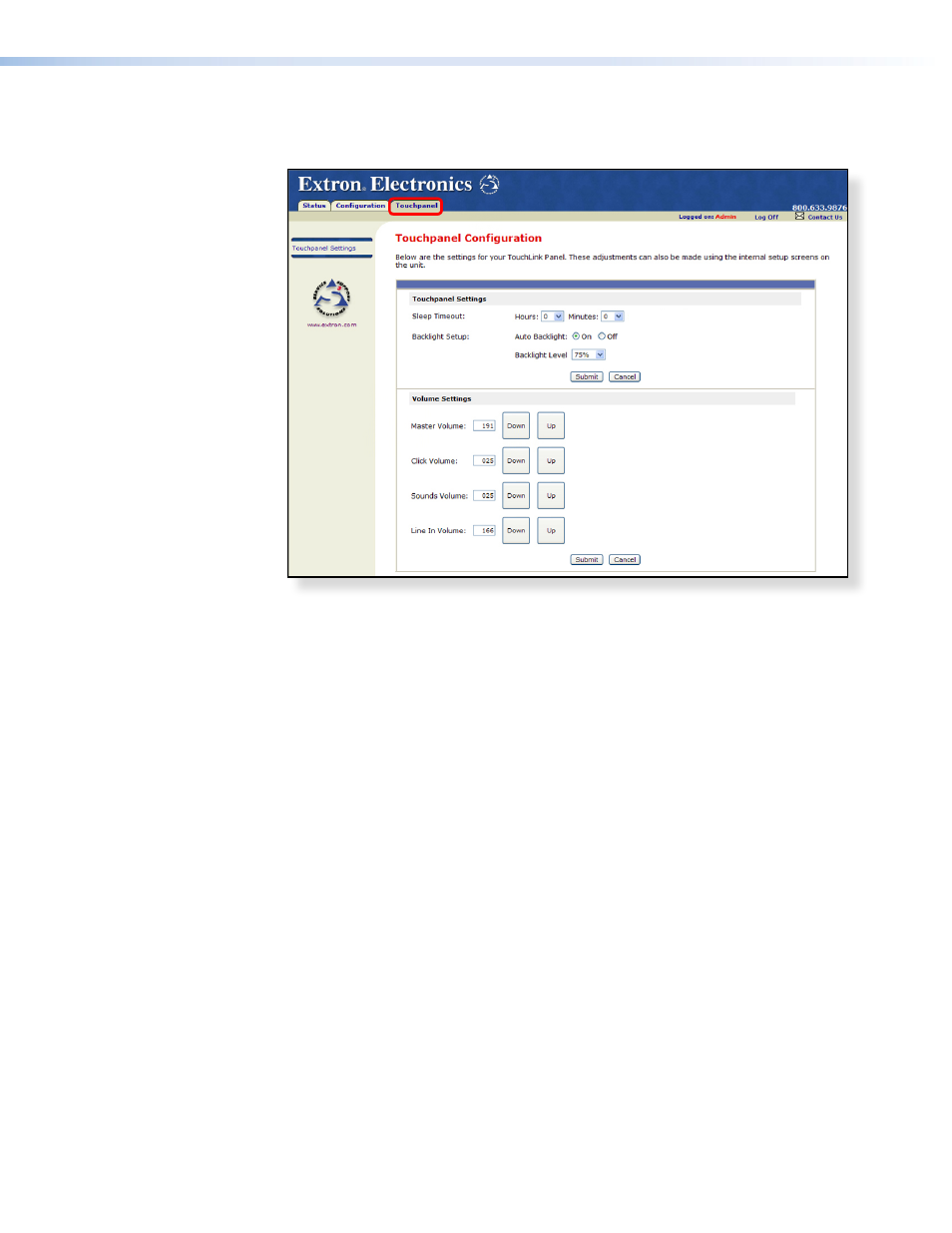

Figure 20. Touchpanel Configuration Page
Updating the Firmware
Firmware for the touchpanel can be updated using the Extron Firmware Loader , using the
TLP 710CV default web page , or using GUI Configurator . For any of these methods, your
computer must be connected to the same network as the touchpanel. Before starting, consult
your IT administrator and ensure that the touchpanel has a unique IP address.
Updating Firmware Using Extron Firmware Loader
1. Power on a computer that is connected to the same network as the touchpanel.
2. Install the Extron Firmware Loader utility onto the computer if it is not already present. This
is on the software disc that ships with unit or can be downloaded, free of charge, from the
Extron website (
www.extron.com ).
To install from the disc, insert the disc into the DVD-ROM drive of the computer and
follow the same procedure as used for
installing the GUI Configurator and Global
Configurator programs (see page 22).
To install from the Extron website ( www.extron.com ), select the Download tab and click
the Software tab. Locate the Firmware Loader and click Download . Follow the on-screen
instructions to complete installation.
TLP 710CV • Configuration Software 25
