Audio output

Speaker output .............................. 1 mono, 86 dB SPL, 0.1 watt, 0.1 m, half space
Frequency response ........................ 400 Hz to 15 kHz, ±5 dB
Playback format(s) .......................... WAV files: 8 bit PCM, mono, 8 kHz sampling

General

External power supply .................... 100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 1 A, regulated
Power input requirements .............. +12 VDC, 0.75 A
Temperature/humidity .................... Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling .......................................... Convection, no vents
Mounting

Rack mount ............................. With optional kit
Furniture or wall mount ........... With included hardware

Enclosure type ................................ Plastic
Enclosure dimensions

Faceplate ................................. 7.1" H x 10.5" W x 0.6" D

(18.0 cm H x 26.8 cm W x 1.4 cm D)

Enclosure ................................. Including knob, excluding mounting flange:

6.3" H x 9.4" W x 2.8" D*
(16.0 cm H x 23.8 cm W x 7.2 cm D*)
*In-wall depth, excluding knob: 2.25" (5.7 cm)
(Allow at least 2.75" [7.0 cm] depth in the wall/furniture.)

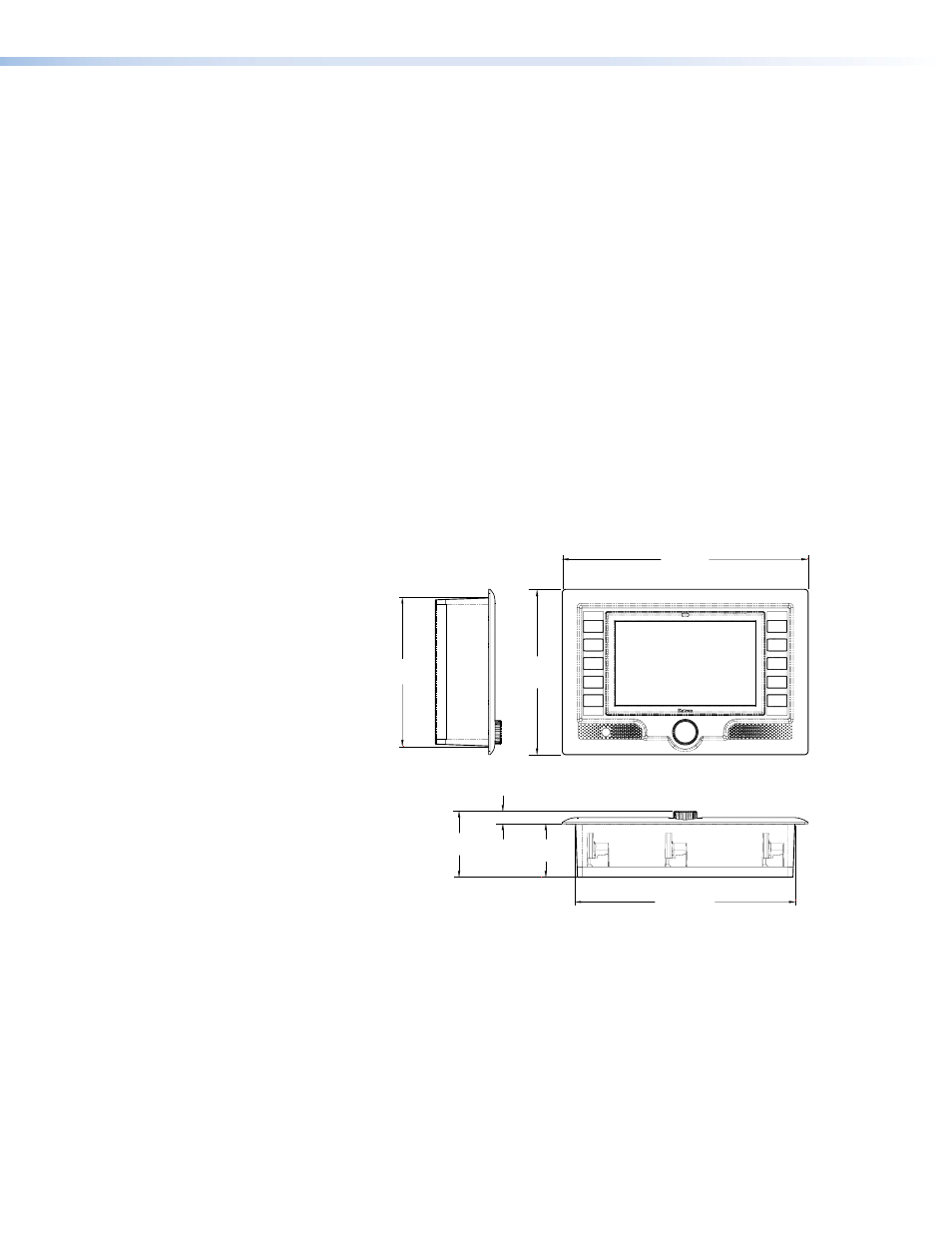

FRONT VIEW

SIDE VIEW

TLP 700MV

BOTTOM VIEW

9.366"

(23.79 cm)

6.316"

(16.04 cm)

7.056"

(17.92 cm)

2.248"

(5.71 cm)

0.568"

(1.44 cm)

2.816"

(7.15 cm)

10.507"

(26.69 cm)

Product weight ............................... 2.3 lbs (1.0 kg)
Shipping weight ............................. 5 lbs (3 kg)
Vibration ........................................ ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance

Safety ...................................... CE, c-UL, UL
EMI/EMC ................................. CE, C-tick,FCC Class A, ICES, VCCI
Environmental .......................... Complies with the applicable requirements of RoHS and WEEE.

MTBF ............................................. 30,000 hours

TLP 700MV and TLP 700TV • Specifications
